Search › Model › GX51

GX51

Toyota CRESTA · 1980 · 5,181 parts · 171 categories

5,181 items

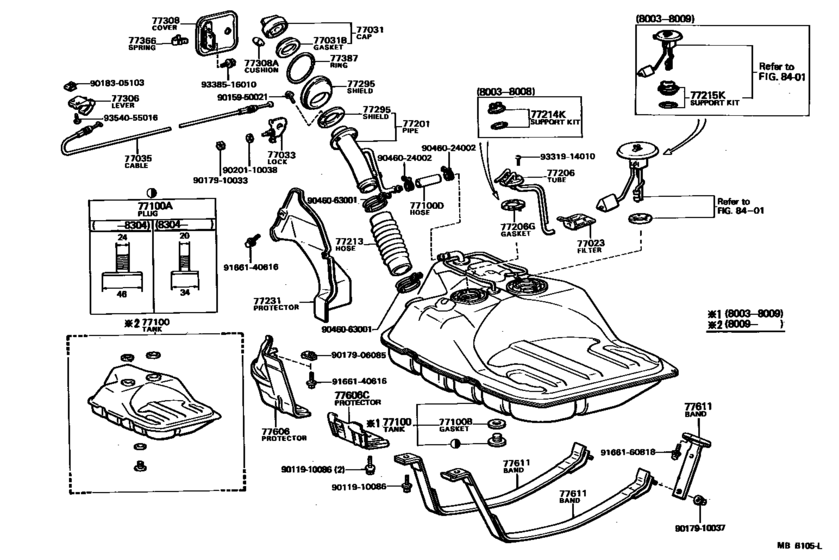

Fuel Tank & Tube ([03.1980 - ] (8003- )) 54

#	OEM	Part name
77023	77023-30010	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12090	Cap Assy, Fuel Tank
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77033	77037-12010	Lock Sub-Assy, Fuel Tank Cap
77035	77035-22050	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-22190	Tank Assy, Fuel
77100	77100-22430	Tank Assy, Fuel
77100	77001-29015	Tank Assy, Fuel
77100	77001-29085	Tank Assy, Fuel
77100	90341-24036	Plug(For Fuel Tank)
77100	90430-24047	Gasket(For Fuel Tank)
77100	90445-22003	Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.3(FOR FUEL TANK INLET PIPE)
77201	77201-22100	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-22130	Pipe Sub-Assy, Fuel Tank Inlet
77206	77017-22021	Tube Sub-Assy, Fuel Tank Suction
77206	77017-22070	Tube Sub-Assy, Fuel Tank Suction
77206	77032-22010	Tube Sub-Assy, Fuel Tank Suction
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-22050	Hose, Fuel Tank Sub Inlet
77214	04772-12010	Support Kit, Fuel Tank Tube
77215	04772-12020	Support Kit, Fuel Tank Gage - FUEL TANK INLET
77231	77277-22020	Protector, Inlet Tube
77295	77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2
77295	77291-22030	Shield Assy, Fuel Tank Filler Pipe
77295	77292-22050	Shield, Fuel Filler Pipe
77306	77051-22010-01	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-22010-04	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-22010-05	Lever Sub-Assy, Fuel Lid Lock Open
77308	77350-22030	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08003	Cushion(For Inspection Opening)
77366	77366-12010	Spring, Fuel Filler Opening Lid Hinge
77387	77391-16010	Ring, Fuel Inlet Box
77606	77641-22030	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-22050	Band, Fuel Tank
77611	77602-22060	Band, Fuel Tank
77611	77603-22030	Band, Fuel Tank
9011910086	90119-10086	New Genuine Part
9011910086	91665-61045	BOLT
9015950021	90159-50021	New Genuine Part
9017906085	90179-06085	New Genuine Part
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9018305103	90183-05103	NUT
9020110038	90201-10038	Washer
9046024002	90460-24002	New Genuine Part
9046024002	96112-20240	New Genuine Part
9046063001	90460-63001	New Genuine Part
9166140616	91661-40616	New Genuine Part
9166160818	91661-60818	New Genuine Part
9331914010	93319-14010	SCREW
9338516010	93385-16010	New Genuine Part
9354055016	93540-55016	SCREW

OEM	Part name	Category
04772-12010	Support Kit, Fuel Tank Tube	Fuel Tank & Tube ([03.1980 - ] (8003- ))
04772-12020	Support Kit, Fuel Tank Gage - FUEL TANK INLET	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77001-22190	Tank Assy, Fuel	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77001-29015	Tank Assy, Fuel	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77001-29085	Tank Assy, Fuel	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77017-22021	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77017-22070	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77023-30010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77032-22010	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77035-22050	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77037-12010	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77051-22010-01	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77051-22010-04	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77051-22010-05	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77100-22430	Tank Assy, Fuel	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77201-22100	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77201-22130	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77213-22050	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77277-22020	Protector, Inlet Tube	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77291-22030	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77292-22050	Shield, Fuel Filler Pipe	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77310-12090	Cap Assy, Fuel Tank	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77350-22030	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77366-12010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77391-16010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77601-22050	Band, Fuel Tank	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77602-22060	Band, Fuel Tank	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77603-22030	Band, Fuel Tank	Fuel Tank & Tube ([03.1980 - ] (8003- ))
77641-22030	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90119-10086	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90159-50021	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90179-06085	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90179-10033	Nut (For Front Wiper Arm Setting)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90179-10037	NUT	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90179-10128	NUT	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90183-05103	NUT	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90201-10038	Washer	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90341-24036	Plug(For Fuel Tank)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90430-24047	Gasket(For Fuel Tank)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90445-22003	Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.3(FOR FUEL TANK INLET PIPE)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90460-24002	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90460-63001	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
90541-08003	Cushion(For Inspection Opening)	Fuel Tank & Tube ([03.1980 - ] (8003- ))
91661-40616	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
91661-60818	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
91665-61045	BOLT	Fuel Tank & Tube ([03.1980 - ] (8003- ))
93319-14010	SCREW	Fuel Tank & Tube ([03.1980 - ] (8003- ))
93385-16010	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))
93540-55016	SCREW	Fuel Tank & Tube ([03.1980 - ] (8003- ))
96112-20240	New Genuine Part	Fuel Tank & Tube ([03.1980 - ] (8003- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 171
Collected: 2026-08-02
