GX51

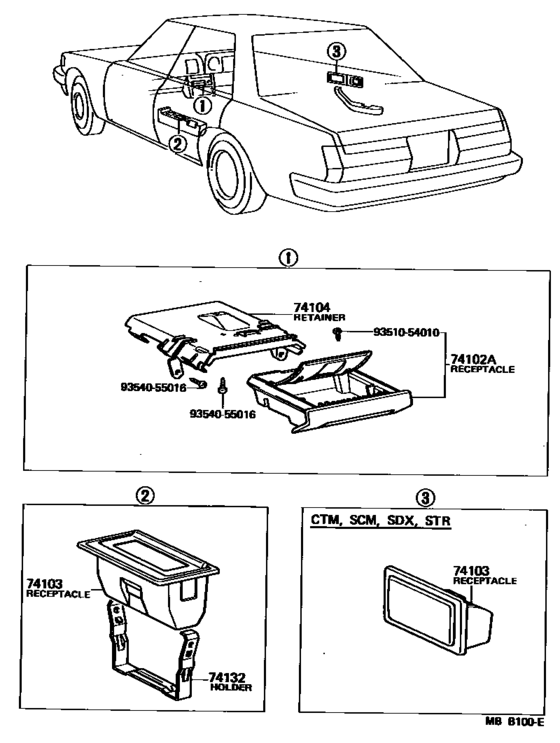

Ash Receptacle ([03.1980 - ] (8003- )) 10
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-22030 | Receptacle Assy, Front Ash |
| 74103 | 74130-22050-01 | Receptacle Sub-Assy, Ash, No.1 |
| 74103 | 74130-22050-04 | Receptacle Sub-Assy, Ash, No.1 |
| 74103 | 74130-22050-06 | Receptacle Sub-Assy, Ash, No.1 |
| 74103 | 74130-22040 | Receptacle Sub-Assy, Ash, No.1 |
| 74103 | 74130-95J02-20 | Receptacle Assy, Rear Ash |
| 74104 | 74104-22060 | Retainer Sub-Assy, Ash Receptacle, No.1 |
| 74132 | 74239-22020 | Holder, Rear Ash Receptacle |
| 9351054010 | 93510-54010 | New Genuine Part |
| 9354055016 | 93540-55016 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 74102-22030 | Receptacle Assy, Front Ash | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74104-22060 | Retainer Sub-Assy, Ash Receptacle, No.1 | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74130-22040 | Receptacle Sub-Assy, Ash, No.1 | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74130-22050-01 | Receptacle Sub-Assy, Ash, No.1 | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74130-22050-04 | Receptacle Sub-Assy, Ash, No.1 | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74130-22050-06 | Receptacle Sub-Assy, Ash, No.1 | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74130-95J02-20 | Receptacle Assy, Rear Ash | Ash Receptacle ([03.1980 - ] (8003- )) |
| 74239-22020 | Holder, Rear Ash Receptacle | Ash Receptacle ([03.1980 - ] (8003- )) |
| 93510-54010 | New Genuine Part | Ash Receptacle ([03.1980 - ] (8003- )) |
| 93540-55016 | SCREW | Ash Receptacle ([03.1980 - ] (8003- )) |
