GX50

Toyota CRESTA · 1980 · 5,005 parts · 180 categories

← Back to categories

5,005 items

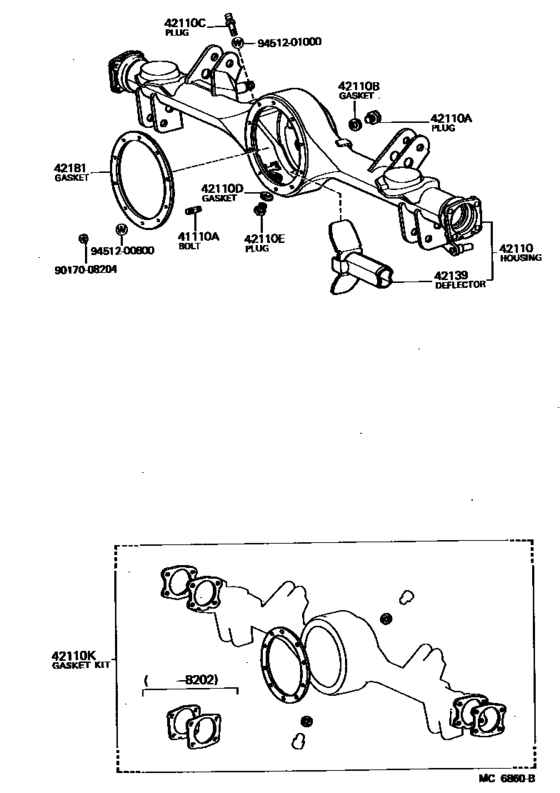

Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50) 18

#	OEM	Part name
41110	90116-08235	Bolt, No.1 (For Rear Differential Carrier Set)
41110	90116-08418	Bolt, No.1 (For Rear Differential Carrier Set)
41110	90116-08106	Bolt, No.1 (For Rear Differential Carrier Set)
42110	42110-22100	Housing Assy, Rear Axle
42110	42110-22110	Housing Assy, Rear Axle
42110	42110-22180	Housing Assy, Rear Axle
42110	90341-18049	Plug(For Oil Heater Houl)
42110	12157-10010	Gasket (For Drain Plug)
42110	90930-03023	Plug, Breather (For Rear Axle Housing)
42110	90930-03031	Plug, Breather(For Parking Cover)
42110	90341-18057	Drain Plug (with Magnet)
42110	04412-20030	Gasket Kit, Rear Differential Carrier
42110	04412-22050	Gasket Kit, Differential Carrier
42139	42108-22010	Deflector, Rear Axle Housing Oil
42181	42181-30010	Gasket, Rear Differential Carrier
9017008204	90170-08204	Nut (For Propeller Shaft)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04412-20030	Gasket Kit, Rear Differential Carrier	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
04412-22050	Gasket Kit, Differential Carrier	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
42108-22010	Deflector, Rear Axle Housing Oil	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
42110-22100	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
42110-22110	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
42110-22180	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
42181-30010	Gasket, Rear Differential Carrier	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90116-08106	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90116-08235	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90116-08418	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90170-08204	Nut (For Propeller Shaft)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90341-18049	Plug(For Oil Heater Houl)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90341-18057	Drain Plug (with Magnet)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90930-03023	Plug, Breather (For Rear Axle Housing)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
90930-03031	Plug, Breather(For Parking Cover)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Housing & Differential ([03.1980 - ] (8003- )GX50,LX60,SX60,TX50)
