Search › Model › GX105
GX105

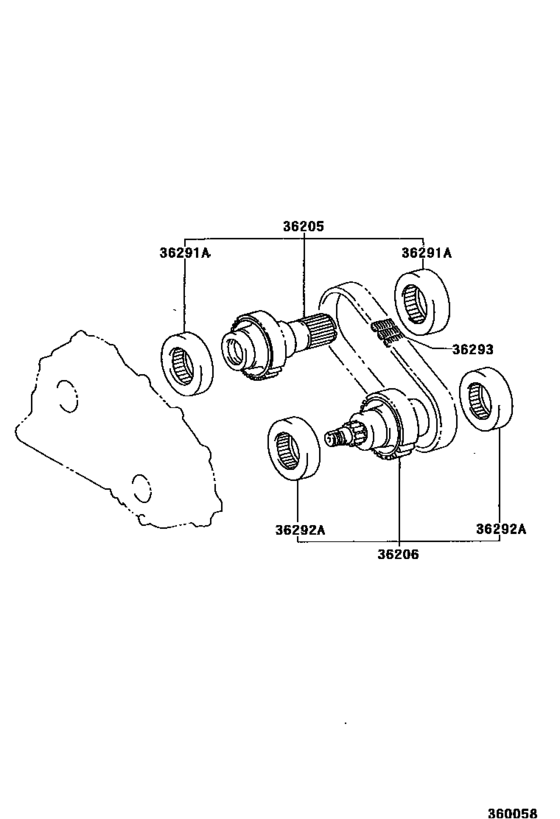

Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) 5
| # | OEM | Part name |
|---|---|---|
| 36205 | 36205-30030 | Sprocket Sub-Assy, Transfer Drive |
| 36206 | 36206-30030 | Sleeve Sub-Assy, Trnsfr Fr Drive Clutch |
| 36291 | 90363-55002 | Bearing (For Transfer Drive Sprocket) |
| 36291 | 90363-55004 | Bearing (For Transfer Drive Sprocket) |
| 36293 | 36293-30020 | Chain, Transfer Front Drive |
| OEM | Part name | Category |
|---|---|---|
| 36205-30030 | Sprocket Sub-Assy, Transfer Drive | Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) |
| 36206-30030 | Sleeve Sub-Assy, Trnsfr Fr Drive Clutch | Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) |
| 36293-30020 | Chain, Transfer Front Drive | Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) |
| 90363-55002 | Bearing (For Transfer Drive Sprocket) | Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) |
| 90363-55004 | Bearing (For Transfer Drive Sprocket) | Transfer Gear ([09.1996 - ] (9609- )GX105,JZX105) |
