GX105

Toyota CHASER · 1998 · 4,461 parts · 190 categories
GX105 ×

← Back to categories

4,461 items

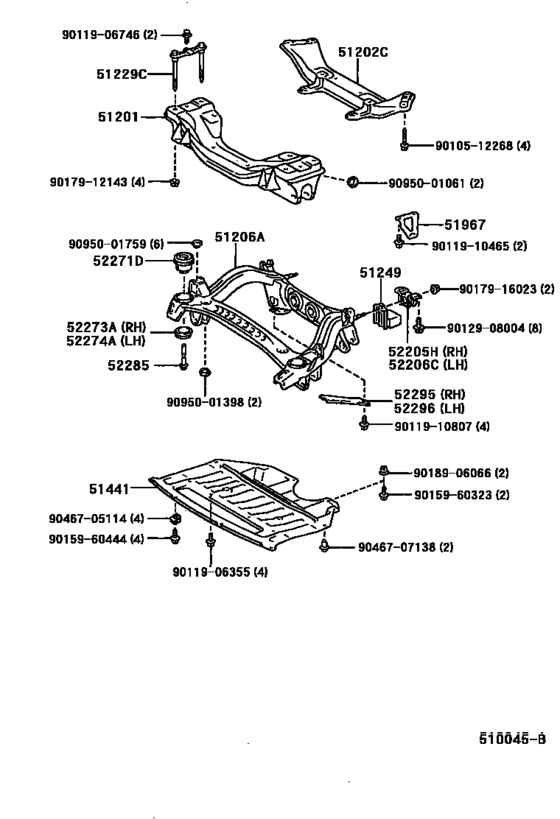

Suspension Crossmember & Under Cover ([09.1996 - ] (9609- )GX105,JZX105) 36
#OEMPart name
51201 51201-22580 Crossmember Sub-Assy, Front Suspension
51201 51201-22582 Crossmember Sub-Assy, Front Suspension
51201 51201-22581 Crossmember Sub-Assy, Front Suspension
51202 51202-22010 Crossmember Sub-Assy, Front Suspension, Lower
51206 51206-22180 Member Sub-Assy, Rear Suspension
51206 51206-22181 Member Sub-Assy, Rear Suspension
51229 51229-22070 Plate, Suspension Member Set
51249 51249-22040 Damper, Rear Suspension Member
51441 51441-22280 Cover, Engine Under, No.1
51967 51967-22070 Hook, Transport, Rear
52205 52205-22090 Cushion Sub-Assy, Body Mounting, Rear Rh
52271 52271-22141 Cushion, Rear Suspension Member Body Mounting, Front
52273 52273-22091 Stopper, Rear Suspension Member, Lower Rh
52285 52285-22010 Bolt, Differential Support Member Mounting, No.1
52295 52295-30010 Brace, Rear Suspension Member, Rh
9010512268 90105-12268 Bolt (For Rear Axle Carrier)
9010512268 90105-12263 Bolt (For Rear Axle Carrier)
9011906355 90119-06355 BOLT
9011906746 90119-06746 New Genuine Part
9011906746 91631-J0612 BRACKET
9011910465 90119-10465 WASHER
9011910807 90119-10807 New Genuine Part
9011910807 91642-K1020 BOLT WWASHER
9012908004 90129-08004 BOLT WWASHER
9015960323 90159-60323 SCREW
9015960444 90159-60444 SCREW WWASHER
9017912143 90179-12143 NUT
9017916023 90179-16023 NUT
9018906066 90189-06066 CLIP
9046705114 90467-05114 Clip(For Front Bumper), No.1
9046707138 90467-07138 Clip(For Rear Floor Finish Plate)
9046707138 90467-07138-C0 Clip
9095001061 90950-01061 Plug, Hole, No.3(For Dash Panel)
9095001061 90950-01872 Plug, Hole, No.3(For Dash Panel)
9095001398 90950-01398 CUSHION
9095001759 90950-01759 PLUG
