Search › Model › GX105

GX105

Toyota CHASER · 1998 · 4,461 parts · 190 categories

4,461 items

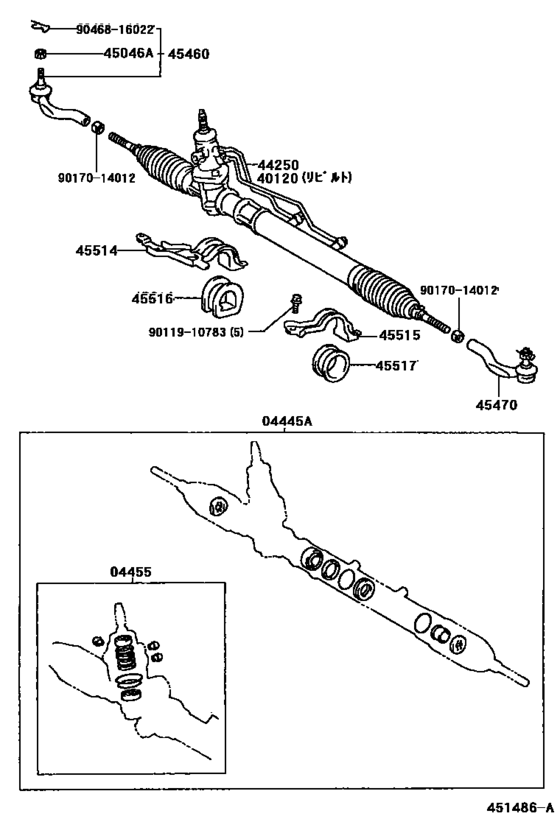

Front Steering Gear & Link ([08.1998 - ] (9808- )GX105) 56

#	OEM	Part name
4445	04445-22270	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445	04445-51011	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-22130	Gasket Kit, Power Steering Control Valve Overhole
4455	04455-51010	Gasket Kit, Power Steering Control Valve Overhole
40120	40120-22440	Gear Assy,power Steering,rebuilt
44015	44015-43010	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25027	Seal, Oil(For Bearing Guide Nut)
44201	44201-22250	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90364-13005	Bearing(For Power Steering Control Valve Lower)
44203	44203-22150	Housing Sub-Assy, Power Steering Rack
44204	44204-22060	Rack Sub-Assy, Power Steering
44204	90301-37007	Ring(For Rack Steering Piston)
44204	90562-41001	Ring(For Rack Steering Piston)
44206	90561-28005	Spacer, No.1(For Power Steering Cylinder Tube)
44210	44210-22270	Valve Assy, Power Steering Control
44210	90410-03008	Seat, Union(For Power Steering Control Valve)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19013	Seal, Oil(For Power Steering Control Valve)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44211-60010	Housing, Control Valve
44250	44250-22440	Gear Assy, Power Steering(For Rack & Pinion)
44253	90310-26023	Seal, Oil(For Power Steering Rack Housing)
44267	44267-22030	Guide, Rack End
44275	44275-22020	Stopper, Cylinder End
44275	90301-40004	Ring, O(For Rack End Guide)
44277	44277-22020	Seat, Rack Guide
44418	44418-22170	Tube, Steering Right Turn Pressure
44418	90401-10021	Bolt, Union(For Steering Turn Pressure Tube)
44418	90430-10008	Gasket(For Steering Turn Pressure Tube)
44419	44419-22170	Tube, Steering Left Turn Pressure
45046	90171-12002	Nut, Castle(For Tie Rod End)
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45460	45460-39395	End Sub-Assy, Tie Rod, Rh
45470	45470-39145	End Sub-Assy, Tie Rod, Lh
45503	45503-29535	End Sub-Assy, Steering Rack
45503	90214-14007	Washer, Claw(For Power Steering Rack End)
45514	45514-22130	Bracket, Steering Rack Housing, No.1
45515	45515-22130	Bracket, Steering Rack Housing, No.2
45516	45516-22050	Grommet, Steering Rack Housing, No.1
45517	45517-22080	Grommet, Steering Rack Housing, No.2
45523	45523-22040	Guide, Rack(For Steering Gear)
45523	90501-26074	Spring(For Power Steering Rack Guide)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-30010	Boot, Steering Rack, No.1
45535	90467-19012	Clip
45535	90467-19019	Clip
45535	90460-49004	Clamp(For Steering Rack Boot No.1)
9011910783	90119-10783	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9020822002	90208-22002	LEXWASHERCONE SPRG
9046816022	90468-16022	CLIP
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)

OEM	Part name	Category
04445-22270	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
04445-51011	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
04455-22130	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
04455-51010	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
40120-22440	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44015-43010	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44201-22250	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44203-22150	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44204-22060	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44210-22270	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44211-60010	Housing, Control Valve	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44250-22440	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44267-22030	Guide, Rack End	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44275-22020	Stopper, Cylinder End	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44277-22020	Seat, Rack Guide	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44418-22170	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
44419-22170	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45460-39395	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45470-39145	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45503-29535	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45514-22130	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45515-22130	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45516-22050	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45517-22080	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45523-22040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
45535-30010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90119-10783	New Genuine Part	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90171-12002	Nut, Castle(For Tie Rod End)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90208-22002	LEXWASHERCONE SPRG	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90214-14007	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90301-37007	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90301-40004	Ring, O(For Rack End Guide)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90310-25027	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90310-26023	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90311-19013	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90364-13005	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90401-10021	Bolt, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90410-03008	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90430-10008	Gasket(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90460-49004	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90467-19012	Clip	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90467-19019	Clip	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90468-16022	CLIP	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90501-26074	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90561-28005	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
90562-41001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
91511-60825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([08.1998 - ] (9808- )GX105)
