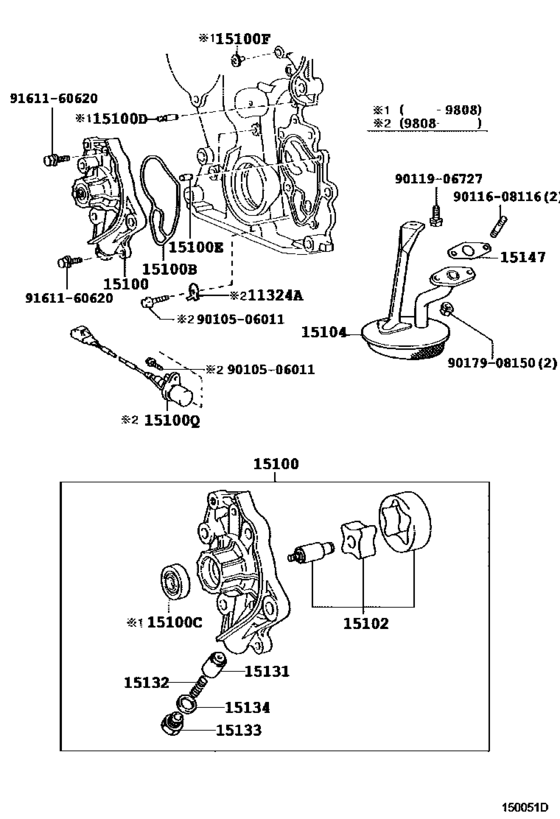

| 11324-70020 |
Plate, Timing Belt |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15100-70050 |
Pump Assy, Oil |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15102-70050 |
Rotor Set, Oil Pump |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15104-70070 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15132-40010 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15133-20010 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15134-67010 |
Gasket, Oil Pump Relief Valve |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15147-70030 |
Gasket, Oil Strainer |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15181-70010 |
Pin, Straight (For Oil Pump Set) |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 15188-70060 |
O-Ring (For Oil Pump) |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90080-11177 |
New Genuine Part |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90105-06011 |
BOLT |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90116-08116 |
STUD |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90119-06727 |
BOLT W-WASHER |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90179-08150 |
NUT |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 90919-05023 |
Sensor, Crank Position |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
| 91611-60620 |
Screw Or Bolt(For Valve Rocker Shaft Lock) |
Engine Oil Pump ([09.1996 - ] (9609- )1GFE) |
