GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories
GX100 ×

← Back to categories

5,352 items

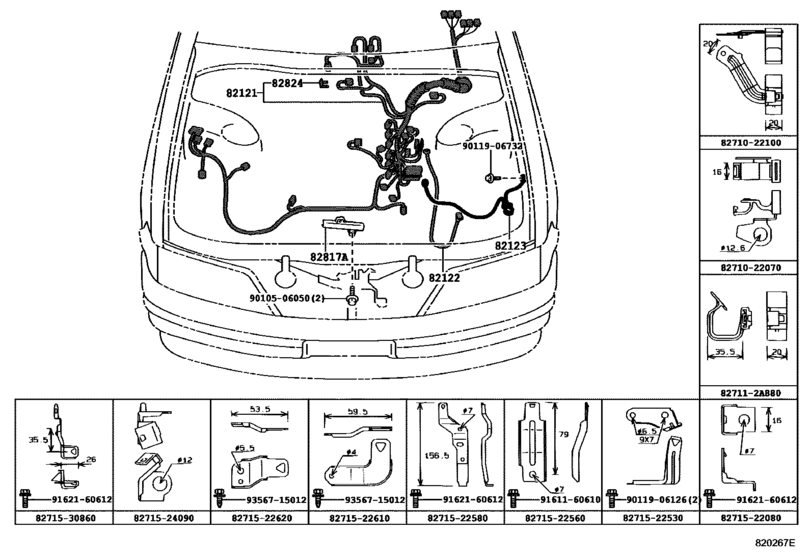

Wiring & Clamp ([09.1996 - 08.1998] ｴﾝｼﾞﾝ ﾜｲﾔ (9609-9808)GX100) 31
#OEMPart name
82121 82121-2A480 Wire, Engine
82121 82121-2A481 Wire, Engine
82121 82121-2A590 Wire, Engine
82122 82122-22450 Wire, Engine, No.2
82123 82123-22210 Wire, Engine, No.3
82123 82123-22220 Wire, Engine, No.3
82817 82817-22660 Protector, Wiring Harness, No.1
82824 82824-24010 Connector, Wiring Harness
827112 82711-2A880 Wire, Fuse To Fuse(for Combustion Heater)
8271022070 82710-22070 Harness Assy, Oil Heater
8271022100 82710-22100 Harness Assy, Oil Heater
8271022100 82715-22690 Bracket,wiring Harness Clamp
8271522080 82715-22080 Bracket,wiring Harness Clamp
8271522530 82715-22530 Bracket,wiring Harness Clamp
8271522560 82715-22560 Bracket,wiring Harness Clamp
8271522580 82715-22580 Bracket,wiring Harness Clamp
8271522610 82715-22610 Bracket,wiring Harness Clamp
8271522620 82715-22620 Bracket,wiring Harness Clamp
8271524090 82715-24090 Bracket,wiring Harness Clamp
8271530860 82715-30860 Bracket,wiring Harness Clamp
9010506050 90105-06050 New Genuine Part
9010506050 91621-G0612 New Genuine Part
9011906126 90119-06126 BOLT
9011906126 90080-11157 Bolt with Washer
9011906732 90119-06732 New Genuine Part
9161160610 91611-60610 Bolt (For Transfer Oil Receiver No.1)
9161160610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9356715012 93567-15012 New Genuine Part
9356715012 93568-55012 SCREW
