GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories
GX100 ×

← Back to categories

5,352 items

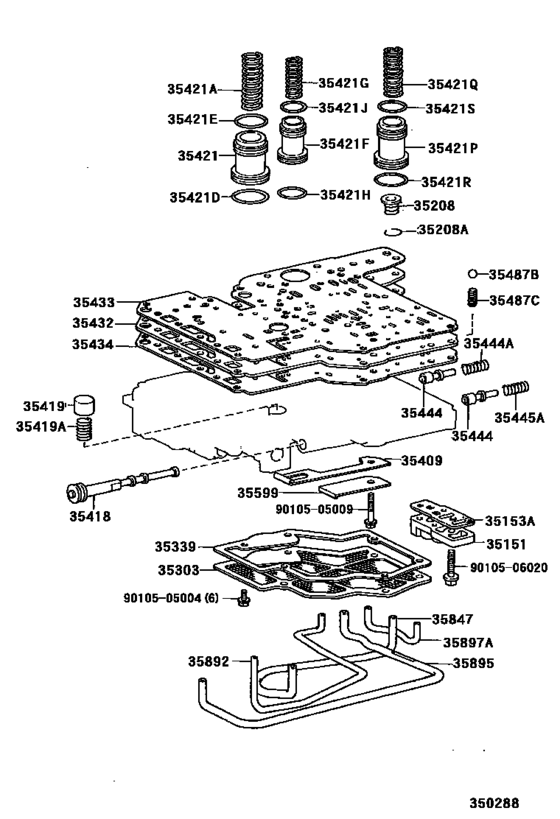

Valve Body & Oil Strainer (Atm) ([09.1996 - 08.1998] A42DE (9609-9808)GX100..4FC) 135
#OEMPart name
35151 35151-30020 Cover, Transmission Case, Lower
35153 35153-30010 Gasket, Transmission Case Lower Cover
35208 35208-28010 Spring Sub-Assy, B-2 Accumulator
35208 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35212 35202-30010 Valve, Lock Up Relay
35212 35212-30050 Valve, Lock Up Relay
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35212 90501-10113 Spring, Compression (For Lock Up Signal Valve)
35215 90250-04027 Pin, Straight (For Lock Up Signal Valve)
35215 35215-22020 Sleeve, Lock Up Relay Valve, No.1
35215 35215-30013 Sleeve, Lock Up Relay Valve
35222 35222-30010 Plate, Lock Up Relay Valve Body
35223 35223-30010 Gasket, Lock Up Relay Valve Body
35303 35303-30060 Strainer Sub-Assy, Oil
35339 35339-28030 Gasket, Oil Strainer
35408 35408-22040 Plug Sub-Assy, Primary Down Shift
35408 90501-11011 Spring, Compression (For Primary Down Shift Plug)
35409 35409-22040 Spring Sub-Assy, Manual Detent
35409 35409-30010 Spring Sub-Assy, Manual Detent
35409 35409-35010 Spring Sub-Assy, Manual Detent
35415 35203-30011 Valve, Pressure Regulator
35415 90501-17021 Spring, Compression (For Pressure Regulator Valve)
35416 35416-14010 Plunger, Primary Regulator Valve, No.1
35416 35416-22030 Plunger, Primary Regulator Valve, No.1
35417 35417-14010 Sleeve, Pressure Regulator Valve
35418 35418-24010 Valve, Manual
35418 35418-30060 Valve, Manual
35419 35419-22010 Valve, Check, No.1
35419 35419-50010 Valve, Check, No.1
35419 90501-09093 Spring, Compression (For Check Valve)
35419 90501-13003 Spring, Compression (For Check Valve)
35420 35420-30172 Body Assy, Lower Valve
35420 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35420 90080-36191 Ball, Check Valve
35420 90360-13024 Ball (For Pressure Relief)
35420 90501-18677 Spring (For Pressure Relief)
35421 35421-26010 Piston, Accumulator, No.1
35421 90501-20063 Spring Sub-Assy, C-1 Accumulator
35421 90501-20162 Spring, Compression (For Accumulator Piston No.1)
35421 90501-21028 Spring, Compression (For Accumulator Piston No.1)
35421 90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)
35421 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35421 35441-30010 Piston, Accumulator, No.2
35421 90501-26092 Spring, Compression (For Accumulator Piston No.2)
35421 90501-27016 Spring, Compression (For Accumulator Piston No.1)
35421 90501-28030 Spring, Compression (For Accumulator Piston No.2)
35421 90301-26190 Ring, O (For Flange Yoke)
35421 90301-18186 Ring (For Accumulator Piston No.2)
35421 90301-18010 Ring (For Accumulator Piston No.2)
35421 35421-22030 Piston, Accumulator, No.3
35421 90501-22033 Spring, Compression (For Accumulator Piston No.3)
35421 90501-23147 Spring, Compression (For Accumulator Piston No.3)
35421 90301-22185 Ring (For Accumulator Piston No.3)
35422 35422-22010 Stopper, Valve Vibrating
35425 35425-14010 Seat, Pressure Regulator Valve Sleeve
35427 35427-30020 Seat (For Pressure Relief)
35430 35430-22180 Body Assy, Rear Upper Valve
35430 90360-06023 Ball (For Rear Upper Valve Body)
35432 35432-22290 Plate, Valve Body, No.1
35432 35432-22291 Plate, Valve Body, No.1
35433 35433-22040 Gasket, Valve Body, No.1
35433 35433-22041 Gasket, Valve Body, No.1
35434 35434-22040 Gasket, Valve Body, No.2
35434 35434-22041 Gasket, Valve Body, No.2
35435 35435-30040 Gasket, Valve Body Plate, No.3
35436 35436-30050 Gasket, Valve Body Plate, No.4
35440 35440-22151 Body Assy, Front Upper Valve
35443 35443-22010 Sleeve, Down Shift Plug
35443 90250-03034 Pin (For Down Shift Plug Sleeve)
35444 35444-22010 Valve, Intermediate Modulator
35444 90501-09686 Spring, Compression (For Intermediate Modulator Valve)
35444 90501-11009 Spring, Compression (For Intermediate Modulator Valve)
35445 90501-08725 Spring, Compression (For Intermediate Modulator Valve)
35447 35447-30010 Valve, Reverse Clutch Sequence
35449 90501-10219 Spring, Compression (For Sequence Valve)
35449 90501-11048 Spring, Compression (For Reverse Clutch Sequence Valve)
35456 35456-12020 Valve, 2-3 Shift
35456 35456-30050 Valve, 2-3 Shift
35456 90501-08135 Spring, Compression (For Shift Valve Plug Seat)
35456 90501-09028 Spring, Compression (For 2-3 Shift Valve)
35456 90339-05014 Plug, Low-High Signal Valve
35456 90339-05019 Plug
35458 35458-30020 Valve, Cut Back
35458 35459-22010 Plug (For Cut Back Valve)
35458 90501-06022 Spring, Compression (For Cut Back Valve)
35462 35462-22011 Valve, Throttle
35462 90501-07680 Spring, Compression (For Throttle Valve)
35462 90523-06023 Ring, E (For Throttle Valve)
35464 35464-12040 Valve, 1-2 Shift
35464 35464-30030 Valve, 1-2 Shift
35468 35204-30010 Valve, Secondary Regulator
35468 35468-24010 Valve, Secondary Regulator
35468 90501-12170 Spring, Compression (For Secondary Regulator Valve)
35468 90501-19001 Spring, Compression (For Secondary Regulator Valve)
35469 35469-30020 Plug, 3-2 Kick Down Orifice Control Valve
35469 90361-02051 Seat, Shift Valve Plug
35472 35472-30010 Cover, Valve Body, No.2
35473 35473-22010 Cover, Transmission Valve Body
35473 35473-22020 Cover, Transmission Valve Body
35475 35475-30040 Cover, Valve Body, No.5
35487 35487-30010 Ball, Check, No.4
35487 90504-05006 Spring, Compression (For Check Ball)
35493 35493-22010 Seat (For Cut Back Valve)
35493 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35497 35497-12020 Valve, 3-4 Shift
35497 35497-30030 Valve, 3-4 Shift
35497 90339-05033 Plug (For 3-4 Shift Valve)
35521 35521-30060 Cam, Throttle Valve
35521 90508-12331 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-22040 Cover, Manual Detent Spring
35599 35599-30010 Cover, Manual Detent Spring
35847 35847-30010 Tube, Transmission Lube Apply
35892 35892-22010 Tube, Overdrive Brake
35892 35892-26010 Tube, Overdrive Brake
35892 35892-30030 Tube, Overdrive Brake
35895 35895-30030 Tube, Front Clutch Apply
35897 35897-30010 Tube, 1St & Reverse Brake, No.1
9010505001 90105-05001 New Genuine Part
9010505002 90105-05002 New Genuine Part
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505004 90105-05004 New Genuine Part
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505007 90105-05007 New Genuine Part
9010505008 90105-05008 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010506014 90105-06014 New Genuine Part
9010506015 90105-06015 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
