Search › Model › GX100

GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories

5,352 items

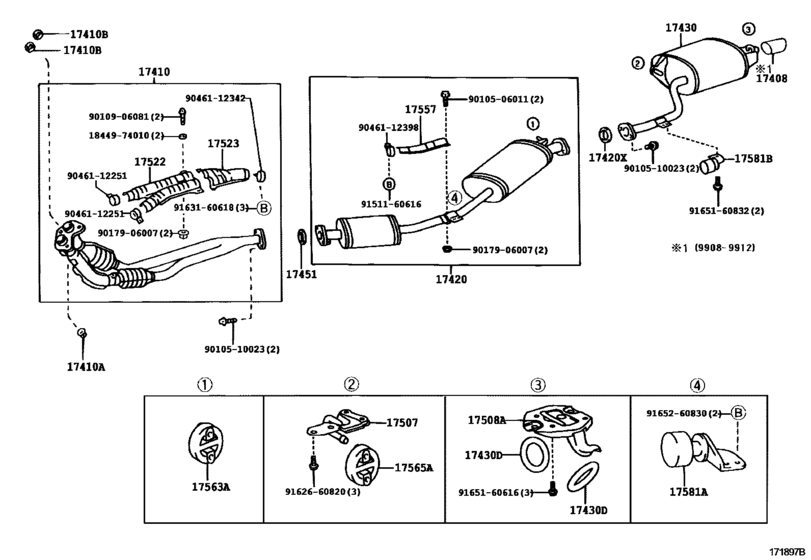

Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100) 47

#	OEM	Part name
17410	17410-70240	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06061	Gasket, Exhaust Pipe
17410	17410-70230	Pipe Assy, Exhaust, Front
17420	17420-70310	Pipe Assy, Exhaust, Center
17420	17420-70320	Pipe Assy, Exhaust, Center
17420	90917-06078	Gasket, Exhaust Pipe
17420	90917-A6003	Gasket, Exhaust Pipe
17420	17420-70290	Pipe Assy, Exhaust, Center
17420	17420-70291	Pipe Assy, Exhaust, Center
17420	90917-06045	Gasket, Exhaust Pipe
17420	90080-43028	Gasket, Exhaust Pipe
17430	17430-70650	Pipe Assy, Exhaust, Tail
17430	17430-70690	Pipe Assy, Exhaust, Tail
17430	90301-36002	Exhaust Pipe Ring
17430	17430-70620	Pipe Assy, Exhaust, Tail
17430	90301-36001	Bolt Or Ring, Exhaust Pipe Front (For Rear)
17451	90917-06041	Gasket, Exhaust Pipe
17507	17507-46080	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17508	17508-70070	Bracket Sub-Assy, Exhaust Pipe No.3 Support
17508	17508-46020	Support Sub-Assy, Exhaust Pipe, No.3
17522	17522-70120	Protector, Exhaust Pipe, Upper No.2
17523	17523-70060	Protector, Exhaust Pipe, Upper No.3
17557	17557-46020	Insulator, Exhaust Pipe Heat, No.7
17563	17565-74280	Support, Exhaust Pipe, No.1
17581	17581-46070	Damper, Exhaust Pipe
17581	17581-46020	Damper, Exhaust Pipe
1844974010	18449-74010	Spacer, Converter Protector
9010506011	90105-06011	BOLT
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9010906081	90109-06081	New Genuine Part
9017906007	90179-06007	Nut
9046112251	90461-12251	Clamp
9046112342	90461-12342	New Genuine Part
9046112398	90461-12398	New Genuine Part
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9162660820	91626-60820	BOLT WWASHER
9162660820	91621-B0816	BOLT WWASHER
9163160618	91631-60618	BOLT WWASHER
9163160618	91631-B0618	BOLT WWASHER
9165160616	91651-60616	BOLT
9165160832	91651-60832	New Genuine Part
9165260830	91652-60830	Bolt (For Transfer Power Take-Off Cover)
9165260830	91651-60830	Bolt (For Transfer Power Take-Off Cover)

OEM	Part name	Category
17410-70230	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17410-70240	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17420-70290	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17420-70291	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17420-70310	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17420-70320	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17430-70620	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17430-70650	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17430-70690	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17507-46080	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17508-46020	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17508-70070	Bracket Sub-Assy, Exhaust Pipe No.3 Support	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17522-70120	Protector, Exhaust Pipe, Upper No.2	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17523-70060	Protector, Exhaust Pipe, Upper No.3	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17557-46020	Insulator, Exhaust Pipe Heat, No.7	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17565-74280	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17581-46020	Damper, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
17581-46070	Damper, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
18449-74010	Spacer, Converter Protector	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90080-43028	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90105-06011	BOLT	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90105-10023	Bolt	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90109-06081	New Genuine Part	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90179-06007	Nut	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90301-36001	Bolt Or Ring, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90301-36002	Exhaust Pipe Ring	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90461-12251	Clamp	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90461-12342	New Genuine Part	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90461-12398	New Genuine Part	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90917-06041	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90917-06061	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91511-60616	BOLTFLANGE	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91511-B0616	BOLT, FLANGE	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91512-81035	BOLT	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91621-B0816	BOLT WWASHER	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91626-60820	BOLT WWASHER	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91631-60618	BOLT WWASHER	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91651-60616	BOLT	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91651-60832	New Genuine Part	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
91652-60830	Bolt (For Transfer Power Take-Off Cover)	Exhaust Pipe ([08.1998 - ] (9808- )1GFE..GX100)
