Search › Model › GX100

GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories

5,352 items

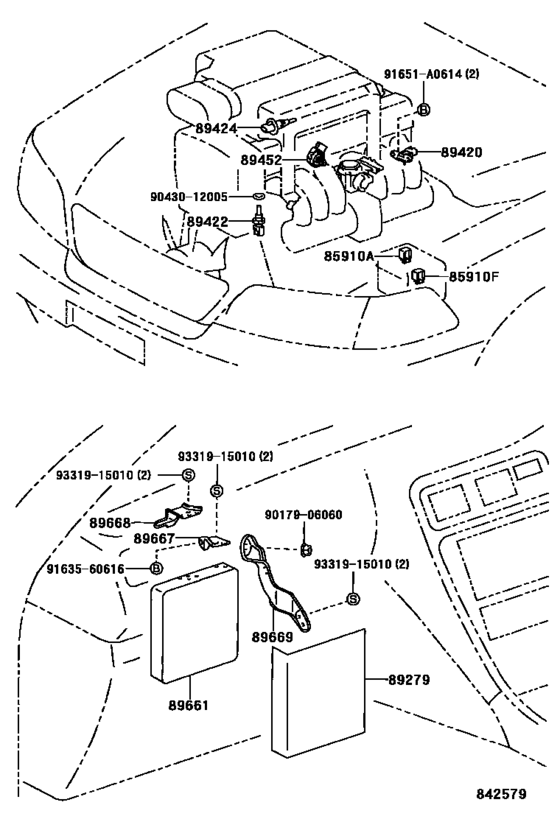

Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#) 22

#	OEM	Part name
85910	90987-02012	Relay, Ignition, No.1
89279	89279-22030	Cover, Engine Control Computer
89420	89421-20190	Sensor Assy, Vacuum
89420	89420-22270	Sensor Assy, Vacuum
89422	89422-16010	Sensor, Water Temperature (For E.f.i.)
89422	89422-20010	Sensor, Water Temperature (For E.f.i.)
89424	89424-12010	Sensor, Inlet Air Temperature (For E.f.i.)
89452	89452-22070	Sensor, Throttle Position (For E.f.i.)
89452	89452-22090	Sensor, Throttle Position
89661	89661-22840	Computer, Engine Control
89661	89661-22830	Computer, Engine Control
89661	89661-22860	Computer, Engine Control
89667	89667-22130	Bracket, Engine Control Computer
89668	89668-22170	Bracket, Engine Control Computer, No.2
89669	89669-22200	Bracket, Engine Control Computer, No.3
91651	91651-A0614	BOLT WWASHER
91651	91653-A0614	BOLT WWASHER
9017906060	90179-06060	Nut, Wing(For Air Cleaner)
9043012005	90430-12005	Gasket(For Water Hole)
9163560616	91635-60616	BOLT WWASHER
9163560616	91631-J0612	BRACKET
9331915010	93319-15010	SCREW

OEM	Part name	Category
89279-22030	Cover, Engine Control Computer	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89420-22270	Sensor Assy, Vacuum	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89421-20190	Sensor Assy, Vacuum	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89422-16010	Sensor, Water Temperature (For E.f.i.)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89422-20010	Sensor, Water Temperature (For E.f.i.)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89424-12010	Sensor, Inlet Air Temperature (For E.f.i.)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89452-22070	Sensor, Throttle Position (For E.f.i.)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89452-22090	Sensor, Throttle Position	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89661-22830	Computer, Engine Control	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89661-22840	Computer, Engine Control	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89661-22860	Computer, Engine Control	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89667-22130	Bracket, Engine Control Computer	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89668-22170	Bracket, Engine Control Computer, No.2	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
89669-22200	Bracket, Engine Control Computer, No.3	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
90179-06060	Nut, Wing(For Air Cleaner)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
90430-12005	Gasket(For Water Hole)	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
90987-02012	Relay, Ignition, No.1	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
91631-J0612	BRACKET	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
91635-60616	BOLT WWASHER	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
91651-A0614	BOLT WWASHER	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
91653-A0614	BOLT WWASHER	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
93319-15010	SCREW	Electronic Fuel Injection System ([08.1998 - ] (9808- )GX10#)
