Search › Model › GX100

GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories

5,352 items

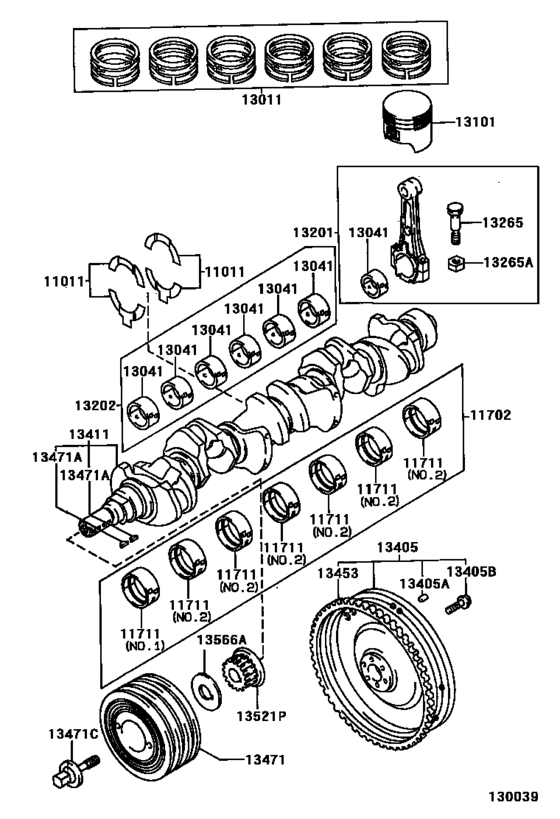

Crankshaft & Piston ([09.1996 - ] (9609- )1GFE) 71

#	OEM	Part name
11011	11011-70010	Washer Set, Crankshaft Thrust
11702	11704-70024	Bearing Set, Crankshaft
11702	11704-70022	Bearing Set, Crankshaft
11702	11704-70023	Bearing Set, Crankshaft
11711	11071-70015-01	Bearing, Crankshaft
11711	11071-70015-02	Bearing, Crankshaft
11711	11071-70015-03	Bearing, Crankshaft
11711	11071-70015-04	Bearing, Crankshaft
11711	11071-70015-05	Bearing, Crankshaft
11711	11701-70024-01	Bearing, Crankshaft
11711	11701-70024-02	Bearing, Crankshaft
11711	11701-70024-03	Bearing, Crankshaft
11711	11701-70024-04	Bearing, Crankshaft
11711	11701-70024-05	Bearing, Crankshaft
11711	11071-70013-01	Bearing, Crankshaft
11711	11071-70013-02	Bearing, Crankshaft
11711	11071-70013-03	Bearing, Crankshaft
11711	11071-70013-04	Bearing, Crankshaft
11711	11071-70013-05	Bearing, Crankshaft
11711	11071-70014-01	Bearing, Crankshaft
11711	11071-70014-02	Bearing, Crankshaft
11711	11071-70014-03	Bearing, Crankshaft
11711	11071-70014-04	Bearing, Crankshaft
11711	11071-70014-05	Bearing, Crankshaft
11711	11701-70022-01	Bearing, Crankshaft
11711	11701-70022-02	Bearing, Crankshaft
11711	11701-70022-03	Bearing, Crankshaft
11711	11701-70022-04	Bearing, Crankshaft
11711	11701-70022-05	Bearing, Crankshaft
11711	11701-70023-01	Bearing, Crankshaft
11711	11701-70023-02	Bearing, Crankshaft
11711	11701-70023-03	Bearing, Crankshaft
11711	11701-70023-04	Bearing, Crankshaft
11711	11701-70023-05	Bearing, Crankshaft
13011	13011-70110	Ring Set, Piston
13011	13013-70110	Ring Set, Piston
13011	13011-70090	Ring Set, Piston
13011	13013-70090	Ring Set, Piston
13041	13041-70021-03	Bearing, Connecting Rod
13041	13041-70021-04	Bearing, Connecting Rod
13041	13041-70021-05	Bearing, Connecting Rod
13041	13041-70020-03	Bearing, Connecting Rod
13041	13041-70020-04	Bearing, Connecting Rod
13041	13041-70020-05	Bearing, Connecting Rod
13101	13101-70110	Piston Sub-Assy, W/pin
13101	13101-70120	Piston Sub-Assy, W/pin
13101	13103-70110	Piston Sub-Assy, W/pin
13101	13103-70120	Piston Sub-Assy, W/pin
13101	13101-70070-01	Piston Sub-Assy, W/pin
13101	13101-70070-02	Piston Sub-Assy, W/pin
13101	13101-70070-03	Piston Sub-Assy, W/pin
13101	13103-70070	Piston Sub-Assy, W/pin
13201	13201-79435	Rod Sub-Assy, Connecting
13201	13201-79115	Rod Sub-Assy, Connecting
13201	13201-79116	Rod Sub-Assy, Connecting
13202	13204-70021	Bearing Set, Connecting Rod
13202	13204-70020	Bearing Set, Connecting Rod
13265	13265-70020	Bolt, Connecting Rod
13265	90179-09006	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-79025	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-10042	Bolt, Flywheel Setting
13411	13411-70908	Crankshaft
13453	13453-20010	Gear, Flywheel Ring
13471	13407-70090	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90105-18001	Bolt(For Crankshaft Pulley Set)
13471	13407-70080	Pulley, Crankshaft
13521	13521-70050	Pulley, Crankshaft Timing
13521	13521-70040	Pulley, Crankshaft Timing
13566	13566-70031	Guide, Timing Belt

OEM	Part name	Category
11011-70010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70013-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70013-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70013-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70013-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70013-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70014-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70014-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70014-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70014-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70014-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70015-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70015-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70015-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70015-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11071-70015-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70022-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70022-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70022-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70022-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70022-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70023-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70023-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70023-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70023-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70023-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70024-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70024-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70024-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70024-04	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11701-70024-05	Bearing, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11704-70022	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11704-70023	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
11704-70024	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13011-70090	Ring Set, Piston	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13011-70110	Ring Set, Piston	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13013-70090	Ring Set, Piston	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13013-70110	Ring Set, Piston	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70020-03	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70020-04	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70020-05	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70021-03	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70021-04	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13041-70021-05	Bearing, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13101-70070-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13101-70070-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13101-70070-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13101-70110	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13101-70120	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13103-70070	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13103-70110	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13103-70120	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13201-79115	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13201-79116	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13201-79435	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13204-70020	Bearing Set, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13204-70021	Bearing Set, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13265-70020	Bolt, Connecting Rod	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13405-79025	Flywheel Sub-Assy	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13407-70080	Pulley, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13407-70090	Pulley, Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13411-70908	Crankshaft	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13453-20010	Gear, Flywheel Ring	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13521-70040	Pulley, Crankshaft Timing	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13521-70050	Pulley, Crankshaft Timing	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
13566-70031	Guide, Timing Belt	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
90105-10042	Bolt, Flywheel Setting	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
90105-18001	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
90179-09006	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
90250-08054	Pin, Straight	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([09.1996 - ] (9609- )1GFE)
