GX100

Toyota CHASER · 1996 · 5,352 parts · 228 categories
GX100 ×

← Back to categories

5,352 items

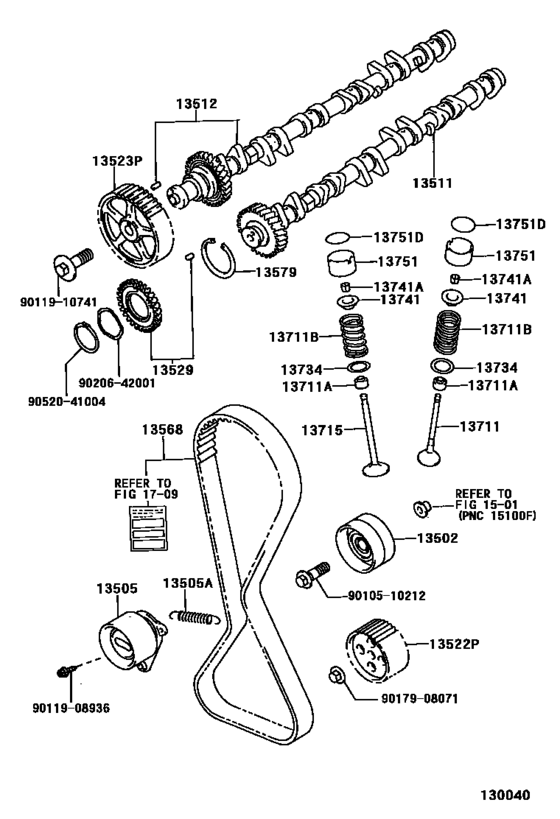

Camshaft & Valve ([09.1996 - 08.1998] (9609-9808)1GFE) 185
#OEMPart name
13502 13503-70061 Idler Sub-Assy, Timing Belt, No.2
13502 13503-70080 Idler Sub-Assy, Timing Belt, No.2
13505 13505-70030 Idler Sub-Assy, Timing Belt, No.1
13505 90506-13003 Spring, Tension(For Idler)
13511 13501-70100 Camshaft
13511 13501-70110 Camshaft
13512 13502-70030 Camshaft, No.2
13512 13502-70060 Camshaft, No.2
13522 13524-70040 Pulley, Pump Drive Shaft
13522 13524-70050 Pulley, Pump Drive Shaft
13523 13523-70040 Pulley, Camshaft Timing
13523 13523-70050 Pulley, Camshaft Timing
13529 13529-70010 Gear, Camshaft Sub
13568 13568-79085 Belt, Timing
13568 13568-79235 Belt, Timing
13579 13579-70010 Washer, Camshaft Timing Gear Bolt
13711 13711-70040 Valve, Intake
13711 13711-70060 Valve, Intake
13711 90913-02071 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02092 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02128 Seal, Exhaust Valve Stem Oil
13711 90913-02093 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-28029 Spring, Compression(For Inner)
13711 90501-29041 Spring, Compression(For Inner)
13715 13715-70040 Valve, Exhaust
13715 13715-70070 Valve, Exhaust
13734 13734-20010 Seat, Valve Spring
13734 90201-16023 Washer, Plate(For Valve Spring Seat)
13741 13741-16010 Retainer, Valve Spring
13741 13741-22020 Retainer, Valve Spring
13741 13741-22021 Retainer, Valve Spring
13741 90913-03021 Seal Or Ring, O(For Valve Stem Oil)
13741 90913-03031 Lock, Valve Spring Retainer
13751 13751-16010 Lifter, Valve
13751 13751-22040 Lifter, Valve
13751 13751-21020 Lifter, Valve
13751 13751-22050 Lifter, Valve
13751 13751-21030 Lifter, Valve
13751 13751-22060 Lifter, Valve
13751 13751-21040 Lifter, Valve
13751 13751-22070 Lifter, Valve
13751 13751-21050 Lifter, Valve
13751 13751-22080 Lifter, Valve
13751 13751-21060 Lifter, Valve
13751 13751-22090 Lifter, Valve
13751 13751-21070 Lifter, Valve
13751 13751-22100 Lifter, Valve
13751 13751-21080 Lifter, Valve
13751 13751-22110 Lifter, Valve
13751 13751-21090 Lifter, Valve
13751 13751-22120 Lifter, Valve
13751 13751-21100 Lifter, Valve
13751 13751-22130 Lifter, Valve
13751 13751-21110 Lifter, Valve
13751 13751-22140 Lifter, Valve
13751 13751-21120 Lifter, Valve
13751 13751-22150 Lifter, Valve
13751 13751-21130 Lifter, Valve
13751 13751-22160 Lifter, Valve
13751 13751-21140 Lifter, Valve
13751 13751-22170 Lifter, Valve
13751 13751-21150 Lifter, Valve
13751 13751-22180 Lifter, Valve
13751 13751-21160 Lifter, Valve
13751 13751-22190 Lifter, Valve
13751 13751-21170 Lifter, Valve
13751 13751-22200 Lifter, Valve
13751 13751-21180 Lifter, Valve
13751 13751-22210 Lifter, Valve
13751 13751-21190 Lifter, Valve
13751 13751-22220 Lifter, Valve
13751 13751-21200 Lifter, Valve
13751 13751-22230 Lifter, Valve
13751 13751-21210 Lifter, Valve
13751 13751-22240 Lifter, Valve
13751 13751-21220 Lifter, Valve
13751 13751-22250 Lifter, Valve
13751 13751-21230 Lifter, Valve
13751 13751-22260 Lifter, Valve
13751 13751-21240 Lifter, Valve
13751 13751-22270 Lifter, Valve
13751 13751-21250 Lifter, Valve
13751 13751-22280 Lifter, Valve
13751 13751-21260 Lifter, Valve
13751 13751-22290 Lifter, Valve
13751 13751-21270 Lifter, Valve
13751 13751-22300 Lifter, Valve
13751 13751-21280 Lifter, Valve
13751 13751-22310 Lifter, Valve
13751 13751-21290 Lifter, Valve
13751 13751-22320 Lifter, Valve
13751 13751-21300 Lifter, Valve
13751 13751-22330 Lifter, Valve
13751 13751-21310 Lifter, Valve
13751 13751-22340 Lifter, Valve
13751 13751-21320 Lifter, Valve
13751 13751-22350 Lifter, Valve
13751 13751-21330 Lifter, Valve
13751 13751-22360 Lifter, Valve
13751 13751-21340 Lifter, Valve
13751 13751-22370 Lifter, Valve
13751 13751-21350 Lifter, Valve
13751 13751-22380 Lifter, Valve
13751 13751-21360 Lifter, Valve
13751 13751-46030 Lifter, Valve
13751 13751-46040 Lifter, Valve
13751 13751-46050 Lifter, Valve
13751 13751-46060 Lifter, Valve
13751 13751-46070 Lifter, Valve
13751 13751-46080 Lifter, Valve
13751 13751-46090 Lifter, Valve
13751 13751-46100 Lifter, Valve
13751 13751-46110 Lifter, Valve
13751 13751-46120 Lifter, Valve
13751 13751-46130 Lifter, Valve
13751 13751-46140 Lifter, Valve
13751 13751-46150 Lifter, Valve
13751 13751-46160 Lifter, Valve
13751 13751-46170 Lifter, Valve
13751 13751-46180 Lifter, Valve
13751 13751-46190 Lifter, Valve
13751 13751-46200 Lifter, Valve
13751 13751-46210 Lifter, Valve
13751 13751-46220 Lifter, Valve
13751 13751-46230 Lifter, Valve
13751 13751-46240 Lifter, Valve
13751 13751-46250 Lifter, Valve
13751 13751-46260 Lifter, Valve
13751 13751-46270 Lifter, Valve
13751 13751-46280 Lifter, Valve
13751 13751-46290 Lifter, Valve
13751 13751-46300 Lifter, Valve
13751 13751-46310 Lifter, Valve
13751 13751-46320 Lifter, Valve
13751 13751-46330 Lifter, Valve
13751 13751-46340 Lifter, Valve
13751 13751-46350 Lifter, Valve
13751 13751-46360 Lifter, Valve
13751 13751-46370 Lifter, Valve
13751 13753-16020 Pad, Valve Adjusting
13751 13753-16040 Pad, Valve Adjusting
13751 13753-16060 Pad, Valve Adjusting
13751 13753-16351 Shim, Valve Adjusting
13751 13753-16080 Pad, Valve Adjusting
13751 13753-16371 Shim, Valve Adjusting
13751 13753-16100 Pad, Valve Adjusting
13751 13753-16401 Shim, Valve Adjusting
13751 13753-16120 Pad, Valve Adjusting
13751 13753-16421 Shim, Valve Adjusting
13751 13753-16140 Pad, Valve Adjusting
13751 13753-16451 Shim, Valve Adjusting
13751 13753-16160 Pad, Valve Adjusting
13751 13753-16471 Shim, Valve Adjusting
13751 13753-16180 Pad, Valve Adjusting
13751 13753-16501 Shim, Valve Adjusting
13751 13753-16200 Pad, Valve Adjusting
13751 13753-16521 Shim, Valve Adjusting
13751 13753-16220 Pad, Valve Adjusting
13751 13753-16551 Shim, Valve Adjusting
13751 13753-16240 Pad, Valve Adjusting
13751 13753-16571 Shim, Valve Adjusting
13751 13753-16260 Pad, Valve Adjusting
13751 13753-16601 Shim, Valve Adjusting
13751 13753-16280 Pad, Valve Adjusting
13751 13753-16621 Shim, Valve Adjusting
13751 13753-16300 Pad, Valve Adjusting
13751 13753-16651 Shim, Valve Adjusting
13751 13753-16320 Pad, Valve Adjusting
13751 13753-16340 Pad, Valve Adjusting
13751 13753-16660 Pad, Valve Adjusting
13751 13753-16670 Pad, Valve Adjusting
13751 13753-16680 Pad, Valve Adjusting
13751 13753-16690 Pad, Valve Adjusting
13751 13753-16700 Pad, Valve Adjusting
13751 13753-16710 Pad, Valve Adjusting
13751 13753-16720 Pad, Valve Adjusting
13751 13753-16730 Pad, Valve Adjusting
13751 13753-16740 Pad, Valve Adjusting
13751 13753-16750 Pad, Valve Adjusting
9010510212 90105-10212 BOLT WASHER BASED
9011908936 90119-08936 New Genuine Part
9011910741 90119-10741 New Genuine Part
9017908071 90179-08071 New Genuine Part
9020642001 90206-42001 Washer, Wave(For Camshaft Sub Gear)
9052041004 90520-41004 Ring, Shaft Snap(For Camshaft Sub Gear)
