Search › Model › GWZ100

GWZ100

Lexus LC · 2017 · 3,890 parts · 222 categories

3,890 items

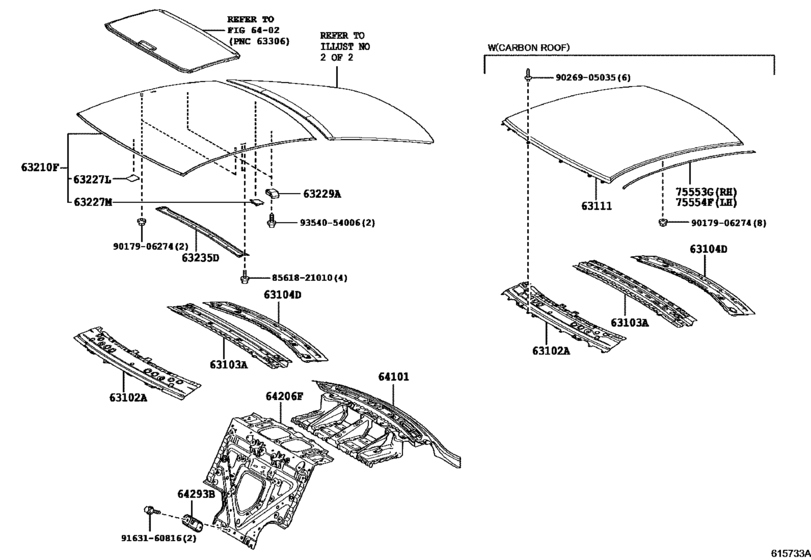

Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- )) 21

#	OEM	Part name
63102	63102-11010	Panel Sub-Assy, Windshield Header
63102	63102-11020	Panel Sub-Assy, Windshield Header
63103	63103-11010	Reinforcement Sub-Assy, Roof Panel
63103	63103-11020	Reinforcement Sub-Assy, Roof Panel
63104	63104-11010	Reinforcement Sub-Assy, Roof Panel, No.2
63111	63101-11030	Panel, Roof
63210	63210-11010	Glass Assy, Moon Roof
63227	63227-11010	Clip, Roof Window
63227	63227-11020	Clip, Roof Window, Lower
63229	63229-11010	Stopper, Sliding Roof Sunshade
63235	63235-11010	Frame, Sliding Roof Housing, Center
64101	64101-11040	Panel Sub-Assy, Upper Back
64206	64206-11010	Panel Sub-Assy, Room Partition
64293	64293-11010	Retainer, Room Partition
75553	75553-11030	Moulding, Roof Drip Side, Rear Rh
75554	75554-11030	Moulding, Roof Drip Side, Rear Lh
8561821010	85618-21010	SCREW SLIDE ROOF
9017906274	90179-06274	Nut
9026905035	90269-05035	RIVET
9163160816	91631-60816	BOLT
9354054006	93540-54006	New Genuine Part

OEM	Part name	Category
63101-11030	Panel, Roof	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63102-11010	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63102-11020	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63103-11010	Reinforcement Sub-Assy, Roof Panel	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63103-11020	Reinforcement Sub-Assy, Roof Panel	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63104-11010	Reinforcement Sub-Assy, Roof Panel, No.2	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63210-11010	Glass Assy, Moon Roof	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63227-11010	Clip, Roof Window	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63227-11020	Clip, Roof Window, Lower	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63229-11010	Stopper, Sliding Roof Sunshade	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
63235-11010	Frame, Sliding Roof Housing, Center	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
64101-11040	Panel Sub-Assy, Upper Back	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
64206-11010	Panel Sub-Assy, Room Partition	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
64293-11010	Retainer, Room Partition	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
75553-11030	Moulding, Roof Drip Side, Rear Rh	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
75554-11030	Moulding, Roof Drip Side, Rear Lh	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
85618-21010	SCREW SLIDE ROOF	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
90269-05035	RIVET	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
91631-60816	BOLT	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))
93540-54006	New Genuine Part	Roof Panel & Back Window Glass ([03.2017 - ] ROOF PANEL (1703- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 222
Collected: 2026-07-23
