Search › Model › GWZ100

GWZ100

Lexus LC · 2017 · 3,890 parts · 222 categories

3,890 items

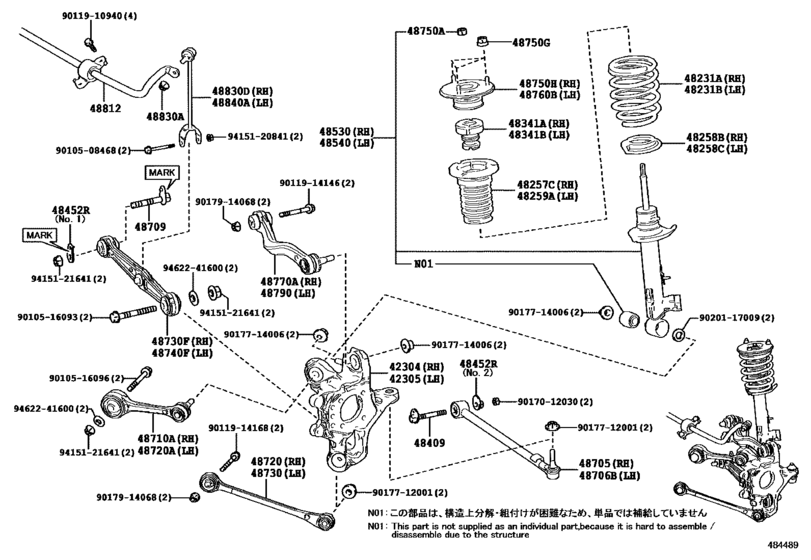

Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- )) 44

#	OEM	Part name
42304	42304-11010	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-11010	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-11020	Spring, Coil, Rear Rh
48257	48257-11010	Insulator, Rear Coil Spring, Upper Rh
48258	48158-30020	Insulator, Front Coil Spring, Lower
48341	48341-11050	Bumper, Rear Spring, No.1
48409	48409-11040	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-11010	Plate, Rear Suspension Toe Adjust, No.2
48452	48452-11020	Plate, Rear Suspension Toe Adjust, No.2
48452	48452-11030	Plate, Rear Suspension Toe Adjust, No.2
48452	48452-50040	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-80808	Absorber Assy, Shock, Rear Rh
48540	48540-19745	Absorber Assy, Shock, Rear Lh
48705	48705-11010	Link Sub-Assy, Toe Control, Rh
48706	48706-11010	Link Sub-Assy, Toe Control, Lh
48709	48709-11020	Attachment Sub-Assy, Rear Suspension Arm
48709	48709-11030	Attachment Sub-Assy, Rear Suspension Arm
48709	48709-11040	Attachment Sub-Assy, Rear Suspension Arm
48710	48710-11010	Arm Assy, Rear Suspension, No.1 Rh
48720	48720-11010	Arm Assy, Lower Control, Rh
48730	48730-11010	Arm Assy, Rear Suspension, No.2 Rh
48750	90177-12002	Nut
48750	90178-10033	Nut(For Front Suspension Support)
48750	48755-11010	Support Assy, Rear Suspension, Rh
48770	48770-11010	Arm Assy, Upper Control, Rear Rh
48790	48790-11020	Arm Assy, Upper Control, Rear Lh
48812	48805-11010	Bar, Stabilizer, Rear
48830	90179-12151	Nut(For Front Stabilizer Link)
48830	48830-11010	Link Assy, Rear Stabilizer, Rh
48840	48840-11010	Link Assy, Rear Stabilizer, Lh
9010508468	90105-08468	New Genuine Part
9010516093	90105-16093	Bolt
9010516096	90105-16096	New Genuine Part
9011910940	90119-10940	BOLT WWASHER
9011914146	90119-14146	Bolt(For Front Suspension Lower Arm No.2 Rh)
9011914168	90119-14168	New Genuine Part
9017012030	90170-12030	NUTHEXAGON
9017712001	90177-12001	NUT, LOCK
9017714006	90177-14006	New Genuine Part
9017914068	90179-14068	Nut(For Front Suspension Lower Arm)
9020117009	90201-17009	New Genuine Part
9415120841	94151-20841	Nut
9415121641	94151-21641	Nut(For Rear Stabilizer Link)
9462241600	94622-41600	WASHER PLATE

OEM	Part name	Category
42304-11010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
42305-11010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48158-30020	Insulator, Front Coil Spring, Lower	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48231-11020	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48257-11010	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48341-11050	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48409-11040	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48452-11010	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48452-11020	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48452-11030	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48452-50040	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48530-80808	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48540-19745	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48705-11010	Link Sub-Assy, Toe Control, Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48706-11010	Link Sub-Assy, Toe Control, Lh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48709-11020	Attachment Sub-Assy, Rear Suspension Arm	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48709-11030	Attachment Sub-Assy, Rear Suspension Arm	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48709-11040	Attachment Sub-Assy, Rear Suspension Arm	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48710-11010	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48720-11010	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48730-11010	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48755-11010	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48770-11010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48790-11020	Arm Assy, Upper Control, Rear Lh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48805-11010	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48830-11010	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
48840-11010	Link Assy, Rear Stabilizer, Lh	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90105-08468	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90105-16093	Bolt	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90105-16096	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90119-10940	BOLT WWASHER	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90119-14146	Bolt(For Front Suspension Lower Arm No.2 Rh)	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90119-14168	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90170-12030	NUTHEXAGON	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90177-12001	NUT, LOCK	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90177-12002	Nut	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90177-14006	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90178-10033	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90179-12151	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90179-14068	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
90201-17009	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
94151-20841	Nut	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
94151-21641	Nut(For Rear Stabilizer Link)	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
94622-41600	WASHER PLATE	Rear Spring & Shock Absorber ([03.2017 - ] 2WS (1703- ))
