GWZ100

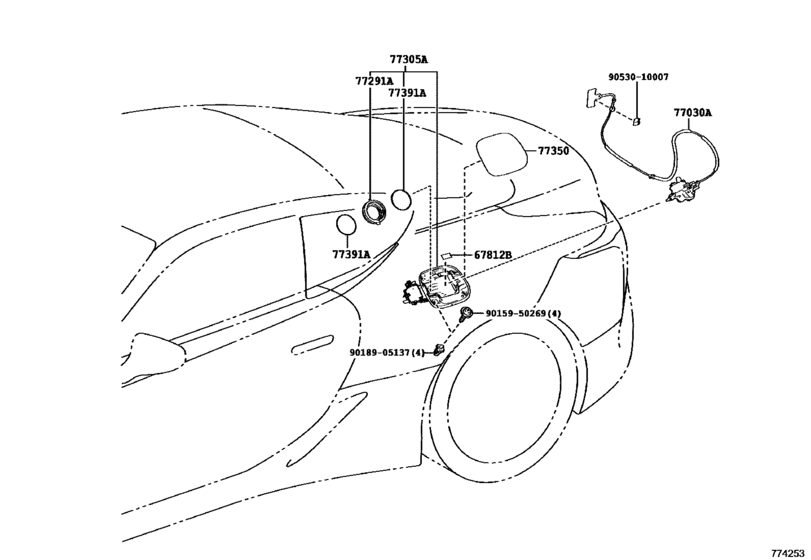

Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) 9
| # | OEM | Part name |
|---|---|---|
| 67812 | 67812-30080 | Pad, Fuel Lid Silencer |
| 77030 | 77030-11010 | Lock Assy, Fuel Lid W/motor |
| 77291 | 77291-24020 | Shield, Fuel Tank Filler Pipe |
| 77305 | 77305-11020 | Lid Sub-Assy, Fuel Filler Opening |
| 77350 | 77350-11010 | Lid Assy, Fuel Filler Opening |
| 77391 | 77391-12020 | Ring, Fuel Inlet Box |
| 9015950269 | 90159-50269 | SCREW WWASHER |
| 9018905137 | 90189-05137 | GROMMET SCREW |
| 9053010007 | 90530-10007 | Fastener, Roof Headlining, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 67812-30080 | Pad, Fuel Lid Silencer | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 77030-11010 | Lock Assy, Fuel Lid W/motor | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 77291-24020 | Shield, Fuel Tank Filler Pipe | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 77305-11020 | Lid Sub-Assy, Fuel Filler Opening | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 77350-11010 | Lid Assy, Fuel Filler Opening | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 77391-12020 | Ring, Fuel Inlet Box | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 90159-50269 | SCREW WWASHER | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 90189-05137 | GROMMET SCREW | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
| 90530-10007 | Fastener, Roof Headlining, No.1 | Fuel Tank & Tube ([03.2017 - ] FUEL LID OPNER (1703- )) |
