Search › Model › GWZ100
GWZ100

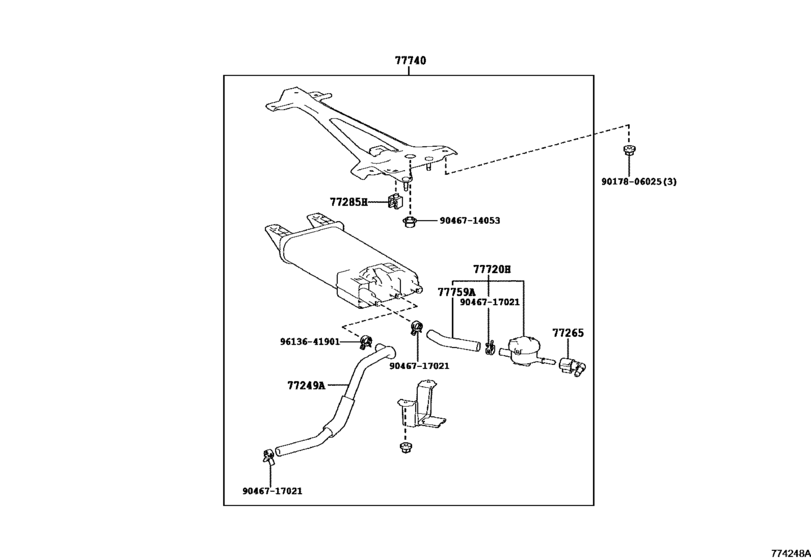

Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) 9
| # | OEM | Part name |
|---|---|---|
| 77249 | 77249-11040 | Hose, Fuel Emission |
| 77265 | 77265-30030 | Connector, Fuel Main Tube |
| 77285 | 77286-47060 | Clamp, Fuel Tube, No.1 - FUEL FILLER PIPE |
| 77720 | 77720-11020 | Valve Assy, Fuel Outlet |
| 77740 | 77740-11060 | Canister Assy, Charcoal |
| 77759 | 77759-11020 | Hose, Charcoal Canister |
| 9046714053 | 90467-14053 | Clip, No.1(For Floor Under Cover) |
| 9046717021 | 90467-17021 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9613641901 | 96136-41901 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 77249-11040 | Hose, Fuel Emission | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 77265-30030 | Connector, Fuel Main Tube | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 77286-47060 | Clamp, Fuel Tube, No.1 - FUEL FILLER PIPE | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 77720-11020 | Valve Assy, Fuel Outlet | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 77740-11060 | Canister Assy, Charcoal | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 77759-11020 | Hose, Charcoal Canister | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 90467-14053 | Clip, No.1(For Floor Under Cover) | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 90467-17021 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
| 96136-41901 | Clip Or Clamp(For Ventilation Hose) | Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) |
