Search › Model › GWZ100

GWZ100

Lexus LC · 2017 · 3,890 parts · 222 categories

3,890 items

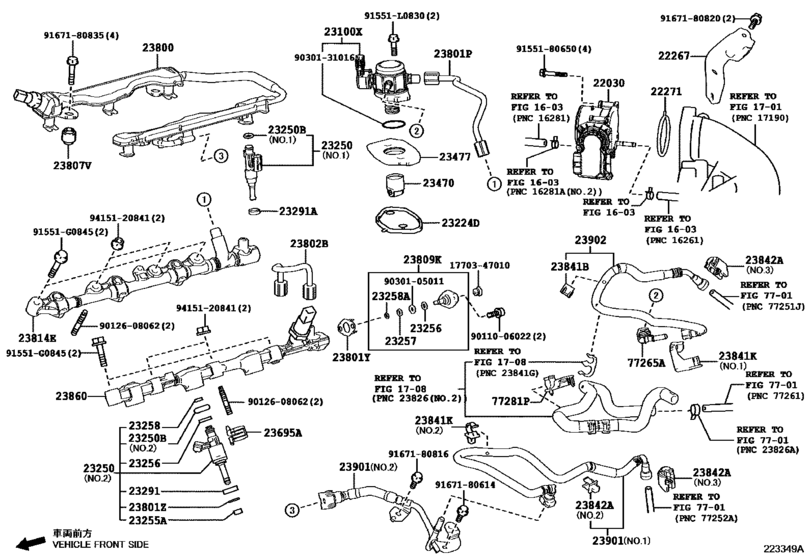

Fuel Injection System ([03.2017 - ] (1703- )8GRFXS) 51

#	OEM	Part name
22030	22030-31100	Body Assy, Throttle W/motor
22267	22267-31090	Bracket, Throttle Body
22271	22271-31040	Gasket, Throttle Body
23100	23101-31110	Pump Assy, Fuel
23224	23224-31020	Gasket, Fuel Pump Spacer
23250	23209-31130	Injector Assy, Fuel
23250	23209-31170-06	Injector Assy, Fuel
23250	23209-31170-07	Injector Assy, Fuel
23250	23209-31170-08	Injector Assy, Fuel
23250	90301-05011	Ring, O(For Fuel Injector)
23250	90301-07037	Ring, O(For Fuel Injector)
23255	23255-31020	Seal, Fuel Injector
23256	23256-31010	Ring, Fuel Injector Back-Up, No.1
23257	23257-47010	Ring, Fuel Injector Back-Up, No.2
23258	23258-31020	Ring, Fuel Injector Back-Up, No.3
23258	23258-31010	Ring, Fuel Injector Back-Up, No.3
23291	23291-31030	Insulator, Injector Vibration
23291	23291-23010	Insulator, Injector Vibration
23470	23470-31010	Lifter Assy, Fuel Pump
23477	23477-31020	Guide, Fuel Pump Lifter
23695	23695-31020	Clamp, Nozzle Holder
23800	23800-31030	Pipe Assy, Fuel Delivery W/sensor
23801	23801-31210	Pipe Sub-Assy, Fuel, No.1
23801	23893-47010	Gasket
23801	90520-14004	Ring, Snap(For Fuel Pipe)
23802	23802-31160	Pipe Sub-Assy, Fuel, No.2
23807	90561-08023	Spacer, No.1(For Delivery Pipe)
23809	23809-47010	Plug Sub-Assy, Fuel Pipe
23814	23807-31110	Pipe, Fuel Delivery, Rh
23841	23841-31170	Clamp, Fuel Pipe, No.1(For Efi)
23841	23841-31130	Clamp, Fuel Pipe
23841	23841-31210	Clamp, Fuel Pipe
23842	23842-28010	Clamp, Fuel Pipe, No.1(For Efi)
23860	23860-31030	Pipe Assy, Fuel Delivery W/sensor, Lh
23901	23901-31330	Tube Sub-Assy, Fuel
23901	23901-31350	Tube Sub-Assy, Fuel
23902	23902-31110	Tube Sub-Assy, Fuel
77265	77265-30030	Connector, Fuel Main Tube
77281	77281-11010	Clamp, Fuel Hose
91551	91551-G0845	Bolt(For Camshaft Housing Set)
91551	91551-L0830	Bolt(For Camshaft Housing Set)
1770347010	17703-47010	Case Sub-Assy, Bottom Air Cleaner Filter
9011006022	90110-06022	New Genuine Part
9012608062	90126-08062	Bolt, Stud(For Intake Manifold To Cylinder Head)
9030131016	90301-31016	RING O
9155180650	91551-80650	BOLT FLANGE
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9167180835	91671-80835	Bolt, Compressor, No.1
9415120841	94151-20841	Nut

OEM	Part name	Category
17703-47010	Case Sub-Assy, Bottom Air Cleaner Filter	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
22030-31100	Body Assy, Throttle W/motor	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
22267-31090	Bracket, Throttle Body	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
22271-31040	Gasket, Throttle Body	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23101-31110	Pump Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23209-31130	Injector Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23209-31170-06	Injector Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23209-31170-07	Injector Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23209-31170-08	Injector Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23224-31020	Gasket, Fuel Pump Spacer	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23255-31020	Seal, Fuel Injector	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23256-31010	Ring, Fuel Injector Back-Up, No.1	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23257-47010	Ring, Fuel Injector Back-Up, No.2	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23258-31010	Ring, Fuel Injector Back-Up, No.3	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23258-31020	Ring, Fuel Injector Back-Up, No.3	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23291-23010	Insulator, Injector Vibration	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23291-31030	Insulator, Injector Vibration	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23470-31010	Lifter Assy, Fuel Pump	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23477-31020	Guide, Fuel Pump Lifter	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23695-31020	Clamp, Nozzle Holder	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23800-31030	Pipe Assy, Fuel Delivery W/sensor	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23801-31210	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23802-31160	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23807-31110	Pipe, Fuel Delivery, Rh	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23809-47010	Plug Sub-Assy, Fuel Pipe	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23841-31130	Clamp, Fuel Pipe	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23841-31170	Clamp, Fuel Pipe, No.1(For Efi)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23841-31210	Clamp, Fuel Pipe	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23842-28010	Clamp, Fuel Pipe, No.1(For Efi)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23860-31030	Pipe Assy, Fuel Delivery W/sensor, Lh	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23893-47010	Gasket	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23901-31330	Tube Sub-Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23901-31350	Tube Sub-Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
23902-31110	Tube Sub-Assy, Fuel	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
77265-30030	Connector, Fuel Main Tube	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
77281-11010	Clamp, Fuel Hose	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90110-06022	New Genuine Part	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90126-08062	Bolt, Stud(For Intake Manifold To Cylinder Head)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90301-05011	Ring, O(For Fuel Injector)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90301-07037	Ring, O(For Fuel Injector)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90301-31016	RING O	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90520-14004	Ring, Snap(For Fuel Pipe)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
90561-08023	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91551-80650	BOLT FLANGE	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91551-G0845	Bolt(For Camshaft Housing Set)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91551-L0830	Bolt(For Camshaft Housing Set)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
91671-80835	Bolt, Compressor, No.1	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)
94151-20841	Nut	Fuel Injection System ([03.2017 - ] (1703- )8GRFXS)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 222
Collected: 2026-07-23
