GWZ100

Lexus LC · 2017 · 3,890 parts · 222 categories
GWZ100 ×

← Back to categories

3,890 items

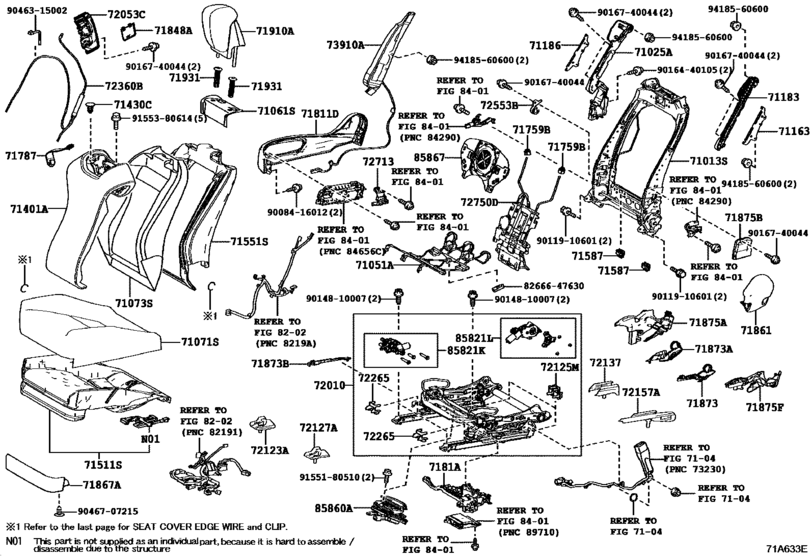

Front Seat & Seat Track ([01.2017 - ] PASSENGER SEAT (1701- )GCC) 108
#OEMPart name
71013 71013-11010 Frame Sub-Assy, Front Seat Back, Rh
71013 71013-11020 Frame Sub-Assy, Front Seat Back, Rh
71025 71025-11010 Support Sub-Assy, Front Seat Back, Rh
71051 71051-11010 Spring Sub-Assy, Front Seat Cushion, Rh
71061 71061-11010-C0 Cover Sub-Assy, Front Seat Back, Upper Rh
71061 71061-11010-E1 Cover Sub-Assy, Front Seat Back, Upper Rh
71061 71061-11010-J0 Cover Sub-Assy, Front Seat Back, Upper Rh
71071 71071-11090-A3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-11090-C7 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-11090-D6 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-11090-E4 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-11090-A7 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-11090-C8 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-11090-D8 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-11090-E6 Cover, Front Seat Back, Rh(For Separate Type)
71163 71164-11010 Bracket, Front Seat Back Support, Rh
71183 71026-11030 Support, Front Seat Back, Rh
71183 71184-11010 Support, Front Seat Back, Rh
71186 71186-11010 Bracket, Front Seat Side Support, Rh
71401 71401-11120-A0 Back Sub-Assy, Front Seat, Rh
71401 71401-11120-C5 Back Sub-Assy, Front Seat, Rh
71401 71401-11120-D1 Back Sub-Assy, Front Seat, Rh
71401 71401-11120-E1 Back Sub-Assy, Front Seat, Rh
71430 67771-26230-C0 Clip
71511 71501-11010 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-11010 Pad, Front Seat Back, Rh(For Separate Type)
71587 71587-47010 Protector, Front Seat Back Edge
71759 71759-52050 Hook, Front Seat Back
71787 71788-11010-A1 Band, Front Seat Back Pocket
71787 71788-11010-C5 Band, Front Seat Back Pocket
71787 71788-11010-D2 Band, Front Seat Back Pocket
71787 71788-11010-E3 Band, Front Seat Back Pocket
71787 71788-11020-C2 Band, Front Seat Back Pocket
71787 71788-11020-D1 Band, Front Seat Back Pocket
71787 71788-11020-E1 Band, Front Seat Back Pocket
71811 71811-11010-C3 Shield, Front Seat Cushion, Rh
71811 71811-11010-E3 Shield, Front Seat Cushion, Rh
71811 71811-11010-J2 Shield, Front Seat Cushion, Rh
71848 71848-11010-A0 Cap, Seat Adjuster Cover, Rh
71848 71848-11010-C1 Cap, Seat Adjuster Cover, Rh
71848 71848-11010-D0 Cap, Seat Adjuster Cover, Rh
71848 71848-11010-E1 Cap, Seat Adjuster Cover, Rh
71848 71848-11010-E2 Cap, Seat Adjuster Cover, Rh
71861 71861-11010-C1 Shield, Front Seat Cushion, Inner Rh
71861 71861-11010-E1 Shield, Front Seat Cushion, Inner Rh
71861 71861-11010-J0 Shield, Front Seat Cushion, Inner Rh
71867 71867-11010-C2 Shield, Front Seat Cushion, Inner No.1 Rh
71867 71867-11010-E3 Shield, Front Seat Cushion, Inner No.1 Rh
71867 71867-11010-J0 Shield, Front Seat Cushion, Inner No.1 Rh
71873 71873-11010 Shield, Front Seat Cushion, Lower Rh
71873 71873-47070 Shield, Front Seat Cushion, Lower Rh
71873 71873-47090 Shield, Front Seat Cushion, Lower Rh, No.1
71875 71875-11020-C1 Cover, Reclining Adjuster Inside, Rh
71875 71875-11020-E1 Cover, Reclining Adjuster Inside, Rh
71875 71875-11020-J0 Cover, Reclining Adjuster Inside, Rh
71875 71875-11030 Cover, Reclining Adjuster Inside, Rh
71875 71875-11010-C1 Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71875 71875-11010-E1 Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71875 71875-11010-J0 Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71910 71910-11030-C8 Headrest Assy, Front Seat
71910 71910-11030-C9 Headrest Assy, Front Seat
71910 71910-11030-E3 Headrest Assy, Front Seat
71910 71910-11030-J1 Headrest Assy, Front Seat
71910 71910-11040-C5 Headrest Assy, Front Seat
71910 71910-11040-D4 Headrest Assy, Front Seat
71910 71910-11040-E3 Headrest Assy, Front Seat
71931 71930-47050-C5 Support, Front Seat Headrest
71931 71931-47030-C4 Support, Front Seat Headrest
72010 72010-11020 Adjuster Assy, Front Seat, Rh
72053 72053-11010-A0 Lever Sub-Assy, Reclining Remote Control, Rh
72053 72053-11010-C1 Lever Sub-Assy, Reclining Remote Control, Rh
72053 72053-11010-D0 Lever Sub-Assy, Reclining Remote Control, Rh
72053 72053-11010-E1 Lever Sub-Assy, Reclining Remote Control, Rh
72053 72053-11010-E2 Lever Sub-Assy, Reclining Remote Control, Rh
72123 72123-11010-C1 Cover, Seat Track Bracket, Outer Front Rh
72123 72123-11010-E1 Cover, Seat Track Bracket, Outer Front Rh
72123 72123-11010-J0 Cover, Seat Track Bracket, Outer Front Rh
72125 72125-47020 Cover, Seat Track, Upper Rear No.2
72127 72127-11010-C1 Cover, Seat Track Bracket, Inner Front Rh
72127 72127-11010-E1 Cover, Seat Track Bracket, Inner Front Rh
72127 72127-11010-J0 Cover, Seat Track Bracket, Inner Front Rh
72137 72137-11010-C1 Cover, Seat Track, Outer Rh
72137 72137-11010-E1 Cover, Seat Track, Outer Rh
72137 72137-11010-J0 Cover, Seat Track, Outer Rh
72157 72157-11010-C1 Cover, Seat Track Bracket, Inner Rh
72157 72157-11010-E1 Cover, Seat Track Bracket, Inner Rh
72157 72157-11010-J0 Cover, Seat Track Bracket, Inner Rh
72265 72265-47020 Cover, Seat Track Upper Rail, Rh
72360 72360-11010 Cable Assy, Reclining Adjuster Equalizing Rh
72553 72553-11010 Protector, Reclining Cover, Rh
72713 72713-11010 Bracket, Seat Adjuster Shield Clamp, Rh
72750 72750-11010 Adjuster Assy, Lumbar Support, Rh
73910 73910-11010 Air Bag Assy, Front Seat, Rh
85821 85801-11020 Motor Assy, Power Seat Tilt, Rh
85821 85801-11030 Motor Assy, Power Seat Lifter, Rh
85860 85801-11010 Blower Assy, Seat Cushion Climate Control, Rh
85867 85867-11011 Blower, Seat Back Climate Control, Rh
8266647630 82666-47630 Holder, Connector
9008416012 90084-16012 SCREW
9011910601 90119-10601 BOLT W-WASHER
9014810007 90148-10007 SCREW HEXALOBULAR
9016440105 90164-40105 SCREW BINDING
9016740044 90167-40044 BOLT
9046315002 90463-15002 Clamp (For Accelerator Wire Set)
9046707215 90467-07215 Clip
9155180510 91551-80510 BOLT FLANGE
9155380614 91553-80614 BOLT FLANGE
9418560600 94185-60600 Nut, Wire Adjusting, No.1
