Search › Model › GWZ100
GWZ100

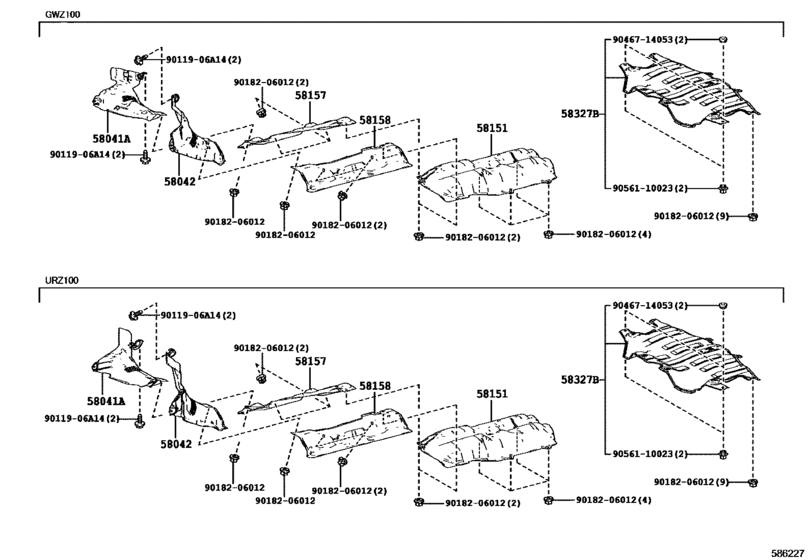

Floor Insulator ([03.2017 - ] (1703- )) 10
| # | OEM | Part name |
|---|---|---|
| 58041 | 58041-11010 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 58042 | 58042-11010 | Insulator Sub-Assy, Front Floor Heat, No.2 |
| 58151 | 58151-11010 | Insulator, Front Floor Heat, No.1 |
| 58157 | 58157-11010 | Insulator, Front Floor Heat, No.5 |
| 58158 | 58158-11010 | Insulator, Front Floor Heat, No.6 |
| 58327 | 58327-11010 | Insulator, Main Muffler Heat |
| 9011906 | 90119-06A14 | BOLT, W/WASHER |
| 9018206012 | 90182-06012 | NUT WWASHER |
| 9046714053 | 90467-14053 | Clip, No.1(For Floor Under Cover) |
| 9056110023 | 90561-10023 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 58041-11010 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([03.2017 - ] (1703- )) |
| 58042-11010 | Insulator Sub-Assy, Front Floor Heat, No.2 | Floor Insulator ([03.2017 - ] (1703- )) |
| 58151-11010 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([03.2017 - ] (1703- )) |
| 58157-11010 | Insulator, Front Floor Heat, No.5 | Floor Insulator ([03.2017 - ] (1703- )) |
| 58158-11010 | Insulator, Front Floor Heat, No.6 | Floor Insulator ([03.2017 - ] (1703- )) |
| 58327-11010 | Insulator, Main Muffler Heat | Floor Insulator ([03.2017 - ] (1703- )) |
| 90119-06A14 | BOLT, W/WASHER | Floor Insulator ([03.2017 - ] (1703- )) |
| 90182-06012 | NUT WWASHER | Floor Insulator ([03.2017 - ] (1703- )) |
| 90467-14053 | Clip, No.1(For Floor Under Cover) | Floor Insulator ([03.2017 - ] (1703- )) |
| 90561-10023 | New Genuine Part | Floor Insulator ([03.2017 - ] (1703- )) |
