GWZ100

Lexus LC · 2017 · 3,890 parts · 222 categories
GWZ100 ×

← Back to categories

3,890 items

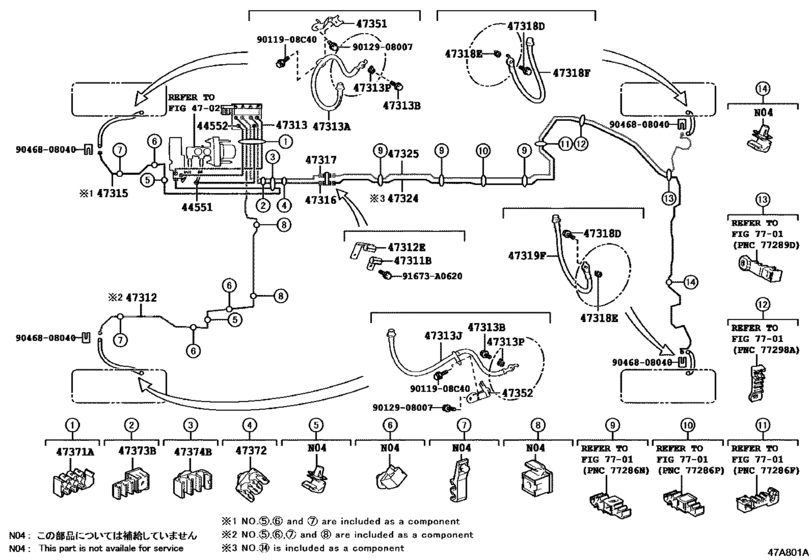

Brake Tube & Clamp ([03.2017 - ] BRAKE TUBE (1703- )ARL) 26
#OEMPart name
44551 44551-11010 Tube, Brake Actuator, No.1
44552 44552-11010 Tube, Brake Actuator, No.2
47311 90412-10292 Way, No.1(For Front Brake Tube)
47312 47312-11040 Tube, Front Brake, No.2
47312 90412-10297 Way, No.1(For Front Brake Tube)
47313 47313-11060 Tube, Front Brake, No.3
47313 90947-02H62 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-02H67 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47315 47315-11060 Tube, Front Brake, No.5
47316 47322-11080 Tube, Front Brake, No.6
47317 47323-11020 Tube, Front Brake, No.7
47318 90947-02H68 Hose, Flexible(For Rear Rh)
47324 47324-11020 Tube, Rear Brake, No.4
47325 47325-11010 Tube, Rear Brake, No.5
47351 47351-11040 Bracket, Flexible Hose(For Front Rh)
47352 47352-11020 Bracket, Flexible Hose(For Front Lh)
47371 47371-11010 Clamp, Brake Tube, No.1
47372 90469-07020 Clamp, Brake Tube, No.6
47373 90949-01D21 Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.6
47374 90949-01D41 Clamp, Brake Tube, No.7 - BRAKE TUBE, NO.4
91673 91673-A0620 BOLT FLANGE
9011908 90119-08C40 New Genuine Part
9012908007 90129-08007 New Genuine Part
9046808040 90468-08040 CLIP
