Search › Model › GWL10

GWL10

Lexus GS · 2012 · 7,372 parts · 228 categories

7,372 items

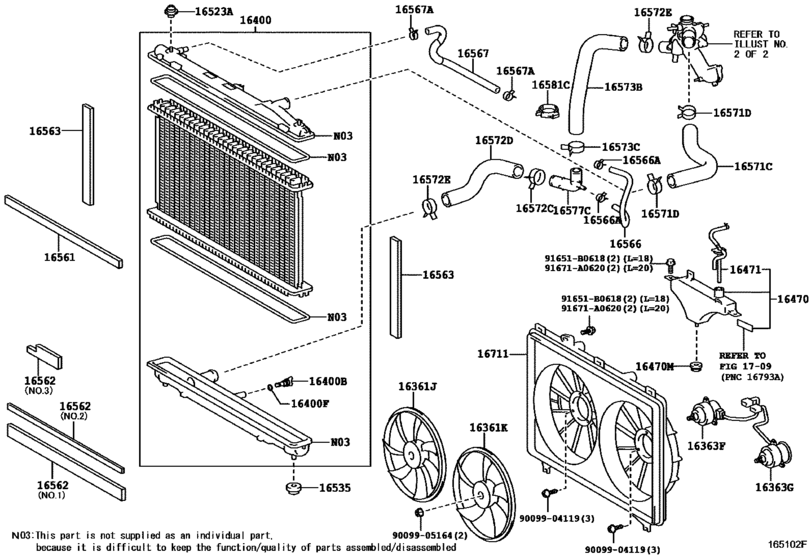

Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC) 59

#	OEM	Part name
16361	16361-31430	Fan
16361	16361-31440	Fan, No.2
16361	16361-31420	Fan
16361	16361-38030	Fan
16363	16363-31360	Motor, Cooling Fan, No.2
16363	16363-31440	Motor, Cooling Fan, No.2
16363	16363-50040	Motor, Cooling Fan
16363	16363-31290	Motor, Cooling Fan
16363	16363-31370	Motor, Cooling Fan
16363	16363-31430	Motor, Cooling Fan
16400	16400-31820	Radiator Assy
16400	16400-31830	Radiator Assy
16400	16400-31A60	Radiator Assy
16400	16400-36300	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-31160	Tank Assy, Radiator Reserve
16470	16470-31163	Tank Assy, Radiator Reserve
16470	16470-31161	Tank Assy, Radiator Reserve
16470	16470-31162	Tank Assy, Radiator Reserve
16470	16470-36031	Tank Assy, Radiator Reserve
16470	16470-36032	Tank Assy, Radiator Reserve
16470	90480-18010	Grommet, Radiator Reserve Tank Hose
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-38010	Cushion, Radiator Support
16535	90480-40021	Grommet(For Radiator Support)
16535	90480-40022	Support, Radiator, Lower
16561	16561-31090	Seal, Radiator To Support, No.1
16561	16561-31110	Seal, Radiator To Support, No.1
16562	16562-31030	Seal, Radiator To Support, No.2
16562	16562-31040	Seal, Radiator To Support, No.2
16562	16562-31060	Seal, Radiator To Support, No.2
16563	16563-31020	Seal, Radiator To Support, No.3
16563	16563-31050	Seal, Radiator To Support, No.3
16566	16566-31010	Hose, Reserve Tank Outlet
16566	16566-31030	Hose, Reserve Tank Outlet
16566	96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16567	16567-31030	Hose(For Radiator Reserve Tank)
16567	16567-36030	Hose(For Radiator Reserve Tank)
16567	90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16567	96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16571	16571-31320	Hose, Radiator, No.1
16571	90466-39002	Clip, Hose(For Radiator Hose Sub-Assy)
16572	16572-31410	Hose, Radiator, No.2
16572	16572-31450	Hose, Radiator, No.2
16573	16573-31040	Hose, Radiator, No.3
16573	16573-31070	Hose, Radiator, No.3
16577	16577-31030	Pipe, Radiator
16581	16581-31040	Clamp, Hose(For Water Hose)
16711	16711-31560	Shroud, Fan
16711	16711-31580	Shroud, Fan
16711	16711-31620	Shroud, Fan
16711	16711-31640	Shroud, Fan
91651	91651-B0618	BOLT WWASHER
91671	91671-A0620	BOLT FLANGE
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut

OEM	Part name	Category
16361-31420	Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16361-31430	Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16361-31440	Fan, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16361-38030	Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-31290	Motor, Cooling Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-31360	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-31370	Motor, Cooling Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-31430	Motor, Cooling Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-31440	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16363-50040	Motor, Cooling Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16400-31820	Radiator Assy	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16400-31830	Radiator Assy	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16400-31A60	Radiator Assy	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16400-36300	Radiator Assy	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-31160	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-31161	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-31162	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-31163	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-36031	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16470-36032	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16523-38010	Cushion, Radiator Support	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16561-31090	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16561-31110	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16562-31030	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16562-31040	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16562-31060	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16563-31020	Seal, Radiator To Support, No.3	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16563-31050	Seal, Radiator To Support, No.3	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16566-31010	Hose, Reserve Tank Outlet	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16566-31030	Hose, Reserve Tank Outlet	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16567-31030	Hose(For Radiator Reserve Tank)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16567-36030	Hose(For Radiator Reserve Tank)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16571-31320	Hose, Radiator, No.1	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16572-31410	Hose, Radiator, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16572-31450	Hose, Radiator, No.2	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16573-31040	Hose, Radiator, No.3	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16573-31070	Hose, Radiator, No.3	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16577-31030	Pipe, Radiator	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16581-31040	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16711-31560	Shroud, Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16711-31580	Shroud, Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16711-31620	Shroud, Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
16711-31640	Shroud, Fan	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90099-05164	Nut	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90466-21004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90466-39002	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90480-40021	Grommet(For Radiator Support)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
90480-40022	Support, Radiator, Lower	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
91651-B0618	BOLT WWASHER	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
91671-A0620	BOLT FLANGE	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([03.2012 - 10.2015] TOWING PACKAGE (1203-1510)2GRFXE..RHD ; (1203-1510)2GRFXE..GCC)
