Search › Model › GVU58

GVU58

Toyota HIGHLANDER-KLUGER · 2014 · 3,615 parts · 200 categories

3,615 items

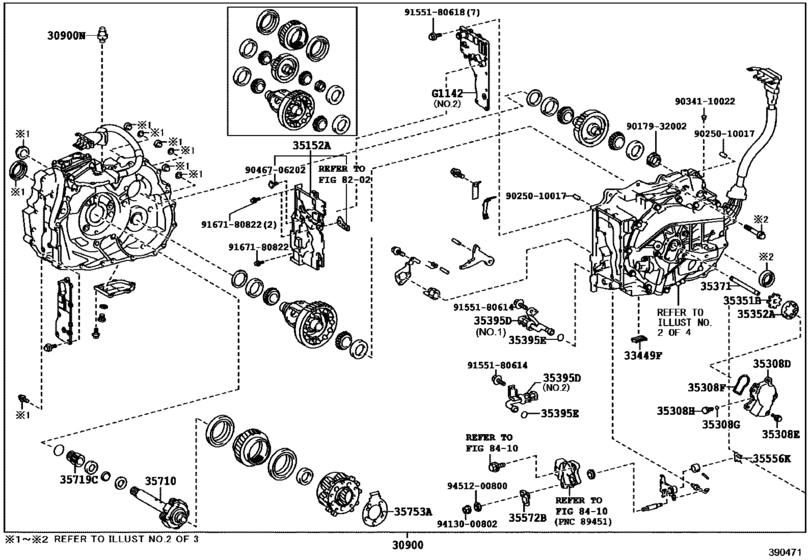

Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58) 52

#	OEM	Part name
30900	30900-48251	Transaxle Assy, Hybrid Vehicle
30900	90930-03223	Plug, Breather(For Transaxle)
30900	90080-10338	Bolt(For Transaxle & Engine Setting)
30900	90080-11310	Bolt(For Transaxle & Engine Setting)
30900	90080-11424	Bolt(For Transaxle & Engine Setting)
30900	90105-10425	Bolt(For Transaxle & Engine Setting)
30900	91619-61265	Bolt(For Transaxle & Engine Setting)
30900	90341-18078	Plug, W/head Straight Screw(For Transaxle Housing & Case)
30900	90430-18008	Gasket
30900	90430-T0021	Gasket(For Manual Transmission Filler Plug)
30900	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
31270	31270-48030	Damper Assy, Transmission Input
33449	33449-33010	Magnet, Transmission No.1
35152	35151-48080	Cover, Automatic Transmission Case, No.2
35153	35153-48011	Cover, Automatic Transmission Case, No.3
35308	35308-48050	Cover Sub-Assy, Transmission Oil Pump
35308	90105-06300	Bolt, W/washer (For Transmission Oil Pump Cover)
35308	90301-59009	Ring, O, No.1 (For Transmission Oil Pump Cover)
35308	90301-06196	O Ring, Transaxle Case, No.1
35308	90341-08001	Plug, Transaxle Case, No.1
35351	35351-33010	Rotor, Transaxle Oil Pump Drive
35352	35352-33010	Rotor, Transmission Oil Pump Driven
35371	35371-48012	Shaft, Oil Pump Drive
35395	35395-33010	Strainer, Transmission Oil
35395	35395-48020	Strainer, Transmission Oil
35395	90301-11019	Ring, O(For Oil Pipe No.1)
35572	35572-33030	Lever, Transmission, Outer
35710	35710-48011	Shaft Assy, Input
35710	90311-25027	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)
35719	35719-48010	Gear, Planetary Sun
35753	35753-48021	Receiver, Planetary Oil
39195	33183-48010	Damper, Dynamic
39195	39195-28011	Damper, Hv Transaxle Mass
39195	39195-48020	Damper, Hv Transaxle Mass
90119	90119-A0142	New Genuine Part
90119	90119-A0283	New Genuine Part
90467	90467-A0034	New Genuine Part
91551	91551-G0820	BOLT FLANGE
9010508425	90105-08425	New Genuine Part
9017932002	90179-32002	Nut (For Underdrive Input Shaft)
9025010017	90250-10017	Pin, Straight(For Clutch Housing Set)
9034110022	90341-10022	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)
9046706202	90467-06202	CLIP
9155100835	91551-00835	Bolt (For Transaxle Housing & Transaxle Case Setting)
9155100850	91551-00850	Flange bolt
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180618	91551-80618	Bolt, W/washer(For Repair Actuator Set)
9167180822	91671-80822	New Genuine Part
9167180850	91671-80850	BOLT FLANGE
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30900-48251	Transaxle Assy, Hybrid Vehicle	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
31270-48030	Damper Assy, Transmission Input	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
33183-48010	Damper, Dynamic	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
33449-33010	Magnet, Transmission No.1	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35151-48080	Cover, Automatic Transmission Case, No.2	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35153-48011	Cover, Automatic Transmission Case, No.3	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35308-48050	Cover Sub-Assy, Transmission Oil Pump	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35351-33010	Rotor, Transaxle Oil Pump Drive	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35352-33010	Rotor, Transmission Oil Pump Driven	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35371-48012	Shaft, Oil Pump Drive	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35395-33010	Strainer, Transmission Oil	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35395-48020	Strainer, Transmission Oil	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35572-33030	Lever, Transmission, Outer	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35710-48011	Shaft Assy, Input	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35719-48010	Gear, Planetary Sun	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
35753-48021	Receiver, Planetary Oil	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
39195-28011	Damper, Hv Transaxle Mass	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
39195-48020	Damper, Hv Transaxle Mass	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90080-10338	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90080-11310	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90080-11424	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90105-06300	Bolt, W/washer (For Transmission Oil Pump Cover)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90105-08425	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90105-10425	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90119-A0142	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90119-A0283	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90170-A0001	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90179-32002	Nut (For Underdrive Input Shaft)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90250-10017	Pin, Straight(For Clutch Housing Set)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90301-06196	O Ring, Transaxle Case, No.1	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90301-11019	Ring, O(For Oil Pipe No.1)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90301-59009	Ring, O, No.1 (For Transmission Oil Pump Cover)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90311-25027	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90341-08001	Plug, Transaxle Case, No.1	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90341-10022	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90341-18078	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90430-18008	Gasket	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90467-06202	CLIP	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90467-A0034	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
90930-03223	Plug, Breather(For Transaxle)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91551-00835	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91551-00850	Flange bolt	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91551-G0820	BOLT FLANGE	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91619-61265	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91671-80822	New Genuine Part	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
91671-80850	BOLT FLANGE	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy, Hv Or Fcv ([11.2016 - ] HYBRID VEHICLE TRANSAXLE ASSY (1611- )GVU58)
