GVU58

Toyota HIGHLANDER-KLUGER · 2014 · 3,615 parts · 200 categories

3,615 items

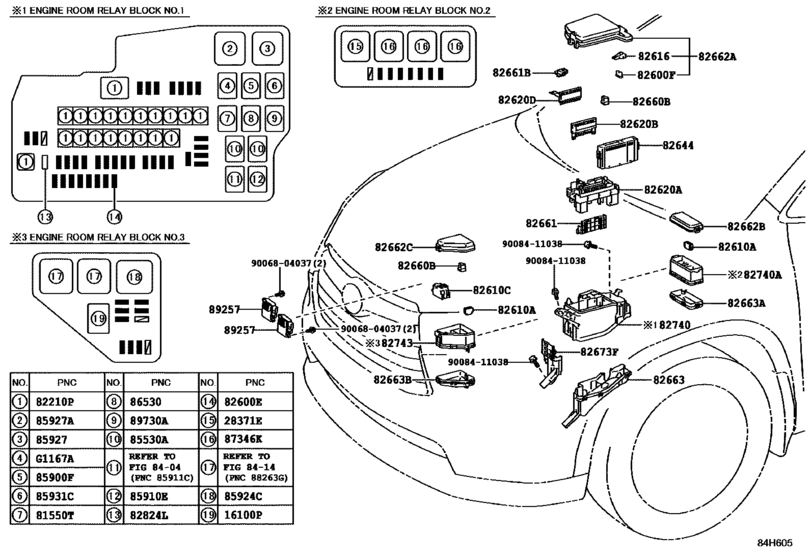

Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58) 42

#	OEM	Part name
16100	90987-02028	Relay, Water Pump
28371	90987-02025	Relay
81550	90080-87026	Relay, Water Pump
81550	90987-02027	Relay
82210	90982-08203	Fusible Link
82210	90982-08228	Fusible Link
82210	90982-08246	Fusible Link
82210	90982-08294	Fusible Link
82210	90982-08295	Fusible Link
82600	90982-09019	Instrument Panel Fuse
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09024	Instrument Panel Fuse
82600	90982-09025	Instrument Panel Fuse
82610	82610-0E020	Block Assy, Fuse
82610	82610-0E010	Block Assy, Fuse
82616	82616-58010	Puller, Fuse
82620	82620-0E020	Block Assy, Fusible Link
82620	82620-0E040	Block Assy, Fusible Link
82620	82620-48100	Block Assy, Fusible Link
82644	82644-0E021	Computer, Semiconductor Power Integration
82644	82644-0E031	Computer, Semiconductor Power Integration
82660	82660-0E010	Block Assy, Relay
82661	82661-0E030	Cover, Relay Block, No.1
82661	82661-48100	Cover, Relay Block, No.3
82662	82662-0E181	Cover, Relay Block, Upper, No.1
82662	82662-0E330	Cover, Relay Block, Upper, No.2
82662	82662-0E201	Cover, Relay Block, Upper, No.3
82663	82663-0E030	Cover, Relay Block, Lower
82663	82663-0E060	Cover, Relay Block, Lower, No.2
82663	82663-0E040	Cover, Relay Block, Lower, No.3
82673	82673-0E010	Bracket, Junction Block
82740	82740-0E020	Block Assy, Engine Room Relay
82740	82740-0E050	Block Assy, Engine Room Relay, No.2
82743	82740-0E030	Block, Engine Room Relay, No.3
82824	82824-41010	Pin, Short
85924	90080-87024	Relay, Water Pump - IGNITION, NO.1
89257	89257-26020	Computer, Cooling Fan
9006804037	90068-04037	BOLT
9008411038	90084-11038	BOLT WWASHER

OEM	Part name	Category
82610-0E010	Block Assy, Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82610-0E020	Block Assy, Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82616-58010	Puller, Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82620-0E020	Block Assy, Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82620-0E040	Block Assy, Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82620-48100	Block Assy, Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82644-0E021	Computer, Semiconductor Power Integration	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82644-0E031	Computer, Semiconductor Power Integration	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82660-0E010	Block Assy, Relay	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82661-0E030	Cover, Relay Block, No.1	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82661-48100	Cover, Relay Block, No.3	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82662-0E181	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82662-0E201	Cover, Relay Block, Upper, No.3	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82662-0E330	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82663-0E030	Cover, Relay Block, Lower	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82663-0E040	Cover, Relay Block, Lower, No.3	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82663-0E060	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82673-0E010	Bracket, Junction Block	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82740-0E020	Block Assy, Engine Room Relay	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82740-0E030	Block, Engine Room Relay, No.3	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82740-0E050	Block Assy, Engine Room Relay, No.2	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
82824-41010	Pin, Short	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
89257-26020	Computer, Cooling Fan	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90068-04037	BOLT	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90080-87024	Relay, Water Pump - IGNITION, NO.1	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90080-87026	Relay, Water Pump	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90084-11038	BOLT WWASHER	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-08203	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-08228	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-08246	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-08294	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-08295	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09019	Instrument Panel Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09020	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09021	Fusible Link	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09024	Instrument Panel Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90982-09025	Instrument Panel Fuse	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90987-02025	Relay	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90987-02027	Relay	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([11.2016 - ] ENGINE ROOM (1611- )GVU58)
