GVU58

Toyota HIGHLANDER-KLUGER · 2014 · 3,615 parts · 200 categories

3,615 items

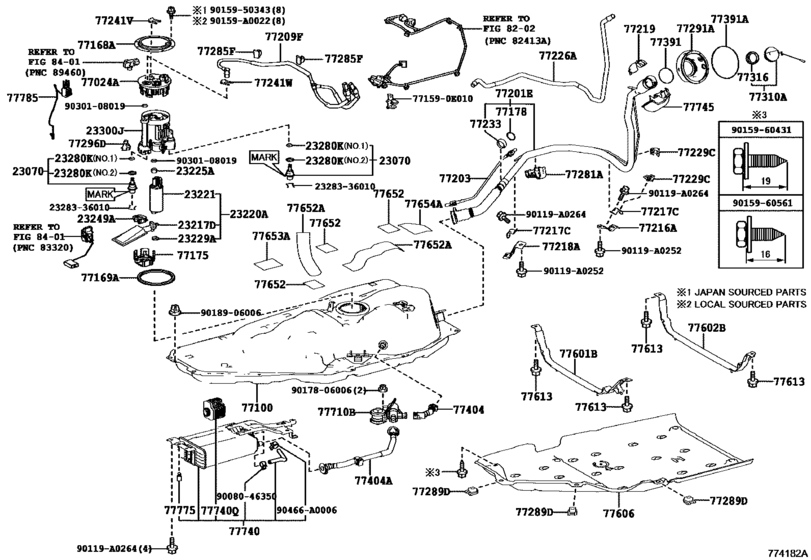

Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58) 67

#	OEM	Part name
23070	23070-31030	Valve Assy, Fuel Main
23070	23070-36010	Valve Assy, Fuel Main
23217	23217-31090	Filter, Fuel Pump
23220	23220-31600	Pump Assy, Fuel W/filter
23221	23221-31130	Pump, Fuel
23225	23225-31020	Spacer, Fuel Pump
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23249	23249-46180	Rubber, Cushion(For Fuel Pump)
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
23300	23300-31240	Filter Assy, Fuel
77024	77024-48090	Plate Sub-Assy, Fuel Suction
77100	77001-0E111	Tank Assy, Fuel
77168	77168-52010	Plate, Fuel Tank Vent Tube Set
77169	77169-33030	Gasket, Fuel Suction Tube Set
77175	77175-48010	Support, Fuel Suction, No.2
77178	77178-06010	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-0E080	Pipe Sub-Assy, Fuel Tank Filler
77203	77203-0E010	Tube Sub-Assy, Fuel Tank Breather Elbow
77209	77209-0E101	Tube Sub-Assy, Fuel Tank Main
77216	77216-0E040	Support, Fuel Tank Filler Pipe, No.1
77217	77217-0E050	Support, Fuel Tank Filler Pipe, No.2
77218	77218-0E060	Support, Fuel Tank Filler Pipe, No.3
77219	77219-0E010	Cover, Fuel Tank Filler Pipe
77226	77226-0E060	Tube, Fuel Tank Breather, No.6
77229	77229-0E010	Clamp, Breather Tube
77233	77233-06020	Joint, Fuel Hose
77241	77241-02010	Clip, Tube Joint
77241	77241-33011	Clip, Tube Joint
77281	77281-0E030	Clamp, Fuel Filler Pipe
77285	77285-33110	Clamp, Fuel Tube, No.1
77289	77289-48040	Clamp, Fuel Tube, No.5
77291	77291-0E060	Shield, Fuel Tank Filler Pipe
77296	77296-48010	Plate, Fuel Tube Support
77310	77300-53040	Cap Assy, Fuel Tank
77316	77316-75020	Gasket, Fuel Tank Cap
77391	77391-02041	Ring, Fuel Inlet Box
77391	77391-0E040	Ring, Fuel Inlet Box
77404	77404-0E040	Hose Sub-Assy, Fuel Tank Vent
77404	77404-0E050	Hose Sub-Assy,fuel Tank Vent
77601	77601-0E040	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-0E040	Band Sub-Assy, Fuel Tank, No.1 Lh
77606	77606-0E050	Protector Sub-Assy, Fuel Tank, No.1
77613	90119-A0267	Bolt, Fuel Tank Band Set
77652	77651-12070	Cushion, Fuel Tank, No.1
77652	77651-26070	Cushion, Fuel Tank, No.1
77653	77653-36010	Cushion, Fuel Tank, No.3
77654	77653-60060	Cushion, Fuel Tank, No.3
77710	77710-48020	Valve Assy, Fuel Tank Solenoid Main
77740	77740-0E050	Canister Assy, Charcoal
77740	90910-AF006	Leak Detection Pump Sub-Assy, Charcoal Canister
77745	77745-0E010	Holder, Fuel Tank Filler Pipe Cover
77775	77775-47010	Guide, Charcoal Canister Outlet
77785	77785-48070	Harness, Fuel Pump
90119	90119-A0252	New Genuine Part
90119	90119-A0264	New Genuine Part
90159	90159-A0022	SCREW WWASHER
90466	90466-A0006	New Genuine Part
2328336010	23283-36010	Holder, Fuel Pressure Regulator
9008046350	90080-46350	Clip(For Fuel Vapor Feed Hose)
9015950343	90159-50343	SCREW, W-WASHER
9015960431	90159-60431	SCREW
9015960561	90159-60561	SCREW WWASHER
9017806006	90178-06006	NUT FLANGE
9018906006	90189-06006	Grommet
9030108019	90301-08019	Ring, O(For Fuel Pressure Regulator)

OEM	Part name	Category
23070-31030	Valve Assy, Fuel Main	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23070-36010	Valve Assy, Fuel Main	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23217-31090	Filter, Fuel Pump	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23220-31600	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23221-31130	Pump, Fuel	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23225-31020	Spacer, Fuel Pump	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23249-46180	Rubber, Cushion(For Fuel Pump)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23283-36010	Holder, Fuel Pressure Regulator	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
23300-31240	Filter Assy, Fuel	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77001-0E111	Tank Assy, Fuel	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77024-48090	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77168-52010	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77169-33030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77175-48010	Support, Fuel Suction, No.2	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77178-06010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77201-0E080	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77203-0E010	Tube Sub-Assy, Fuel Tank Breather Elbow	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77209-0E101	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77216-0E040	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77217-0E050	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77218-0E060	Support, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77219-0E010	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77226-0E060	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77229-0E010	Clamp, Breather Tube	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77233-06020	Joint, Fuel Hose	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77241-02010	Clip, Tube Joint	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77281-0E030	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77285-33110	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77289-48040	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77291-0E060	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77296-48010	Plate, Fuel Tube Support	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77300-53040	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77316-75020	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77391-02041	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77391-0E040	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77404-0E040	Hose Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77404-0E050	Hose Sub-Assy,fuel Tank Vent	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77601-0E040	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77602-0E040	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77606-0E050	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77651-26070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77653-36010	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77653-60060	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77710-48020	Valve Assy, Fuel Tank Solenoid Main	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77740-0E050	Canister Assy, Charcoal	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77745-0E010	Holder, Fuel Tank Filler Pipe Cover	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77775-47010	Guide, Charcoal Canister Outlet	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
77785-48070	Harness, Fuel Pump	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90080-46350	Clip(For Fuel Vapor Feed Hose)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90119-A0252	New Genuine Part	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90119-A0264	New Genuine Part	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90119-A0267	Bolt, Fuel Tank Band Set	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90159-60431	SCREW	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90159-60561	SCREW WWASHER	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90159-A0022	SCREW WWASHER	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90178-06006	NUT FLANGE	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90189-06006	Grommet	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90301-08019	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90466-A0006	New Genuine Part	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
90910-AF006	Leak Detection Pump Sub-Assy, Charcoal Canister	Fuel Tank & Tube ([11.2016 - ] FUEL TANK (1611- )GVU58)
