GVU58

Toyota HIGHLANDER-KLUGER · 2014 · 3,615 parts · 200 categories

3,615 items

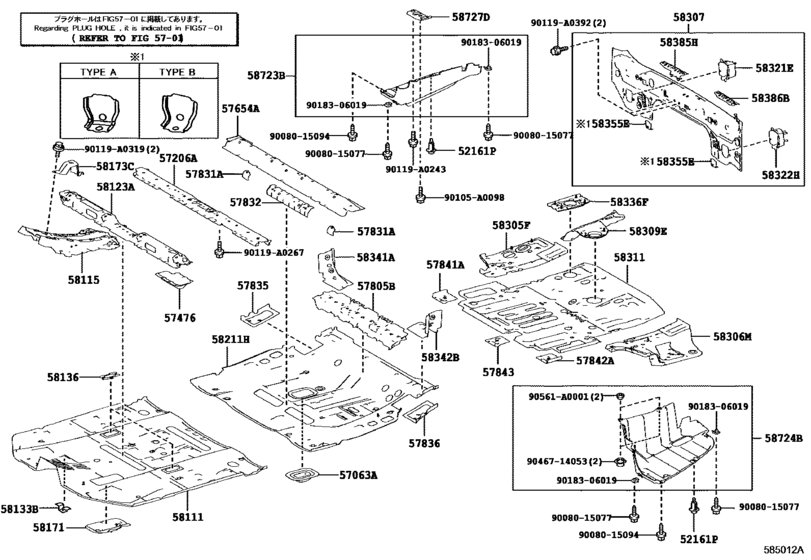

Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58) 50

#	OEM	Part name
52161	52161-02020	Clip
52161	52161-16010	Clip
57063	57063-0E010	Bracket Sub-Assy, Fuel Tank Mounting, Rear Rh
57206	57206-0E040	Member Sub-Assy, Front Floor Cross, No.2
57476	57456-0E010	Plate, Front Floor Cross Member, No.3 Lh
57654	57654-0E050	Member, Rear Floor Cross, No.3
57805	57805-0E020	Reinforcement Sub-Assy, Belt Anchor, Rh
57831	57831-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.1
57832	57832-0E050	Reinforcement, Rear No.1 Seat Leg, Front No.2
57835	57835-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.1
57836	57836-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.2
57841	57841-0E010	Reinforcement, Rear No.2 Seat Leg, Front Rh
57842	57842-0E010	Reinforcement, Rear No.2 Seat Leg, Front Lh
57843	57843-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.5
58111	58111-0E918	Pan, Front Floor
58115	58115-0E040	Reinforcement, Front Floor Panel, Front
58123	58013-0E050	Support, Shift & Select Lever
58133	58133-0E060	Bracket, Front Floor Heat Insulator, No.3
58136	58136-0E030	Cover, Front Floor Hole
58171	58171-0E030	Reinforcement, Parking Brake Base
58173	58173-0E030	Bracket, Wiring Harness Protector
58211	58211-0E907	Pan, Center Floor
58211	58211-0E909	Pan, Center Floor
58305	58305-0E051	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-0E061	Panel Sub-Assy, Rear Floor Side
58307	58307-0E050	Panel Sub-Assy, Body Lower Back
58309	58309-0E030	Plate Sub-Assy, Rear Floor
58311	58311-0E050	Pan, Rear Floor
58321	58321-0E030	Plate, Rear Bumper Arm Support, Rh
58322	58322-0E030	Plate, Rear Bumper Arm Support, Lh
58336	58336-0E060	Reinforcement, Rear Floor Pan, Rh
58341	58341-0E010	Bracket, Rear Absorber Mounting, Rh
58342	58342-0E010	Bracket, Rear Absorber Mounting, Lh
58355	58355-0E020	Bracket, Rear Bumper Arm
58355	58355-0E030	Bracket, Rear Bumper Arm, Rh
58385	58385-0E040	Bracket, Rear Bumper Cover, No.1
58386	58386-0E040	Bracket, Rear Bumper Cover, No.2
58723	58723-0E050	Protector, Luggage Compartment Side Cover, No.1
58724	58724-0E060	Protector, Luggage Compartment Side Cover, No.2
58727	58727-0E010	Plate, Engine Service Cover, No.1
90105	90105-A0098	New Genuine Part
90119	90119-A0243	BOLT WWASHER
90119	90119-A0267	Bolt, Fuel Tank Band Set
90119	90119-A0319	New Genuine Part
90119	90119-A0392	New Genuine Part
90561	90561-A0001	New Genuine Part
9008015077	90080-15077	New Genuine Part
9008015094	90080-15094	New Genuine Part
9018306019	90183-06019	Clip, Outside Moulding, No.1
9046714053	90467-14053	Clip, No.1(For Floor Under Cover)

OEM	Part name	Category
52161-02020	Clip	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
52161-16010	Clip	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57063-0E010	Bracket Sub-Assy, Fuel Tank Mounting, Rear Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57206-0E040	Member Sub-Assy, Front Floor Cross, No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57456-0E010	Plate, Front Floor Cross Member, No.3 Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57654-0E050	Member, Rear Floor Cross, No.3	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57805-0E020	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57831-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57832-0E050	Reinforcement, Rear No.1 Seat Leg, Front No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57835-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57836-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57841-0E010	Reinforcement, Rear No.2 Seat Leg, Front Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57842-0E010	Reinforcement, Rear No.2 Seat Leg, Front Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
57843-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.5	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58013-0E050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58111-0E918	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58115-0E040	Reinforcement, Front Floor Panel, Front	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58133-0E060	Bracket, Front Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58136-0E030	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58171-0E030	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58173-0E030	Bracket, Wiring Harness Protector	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58211-0E907	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58211-0E909	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58305-0E051	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58306-0E061	Panel Sub-Assy, Rear Floor Side	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58307-0E050	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58309-0E030	Plate Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58311-0E050	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58321-0E030	Plate, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58322-0E030	Plate, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58336-0E060	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58341-0E010	Bracket, Rear Absorber Mounting, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58342-0E010	Bracket, Rear Absorber Mounting, Lh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58355-0E020	Bracket, Rear Bumper Arm	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58355-0E030	Bracket, Rear Bumper Arm, Rh	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58385-0E040	Bracket, Rear Bumper Cover, No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58386-0E040	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58723-0E050	Protector, Luggage Compartment Side Cover, No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58724-0E060	Protector, Luggage Compartment Side Cover, No.2	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
58727-0E010	Plate, Engine Service Cover, No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90080-15077	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90080-15094	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90105-A0098	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90119-A0243	BOLT WWASHER	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90119-A0267	Bolt, Fuel Tank Band Set	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90119-A0319	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90119-A0392	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90183-06019	Clip, Outside Moulding, No.1	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90467-14053	Clip, No.1(For Floor Under Cover)	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
90561-A0001	New Genuine Part	Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )GVU58)
