| 32000-71070 |
Converter Assy, Torque |

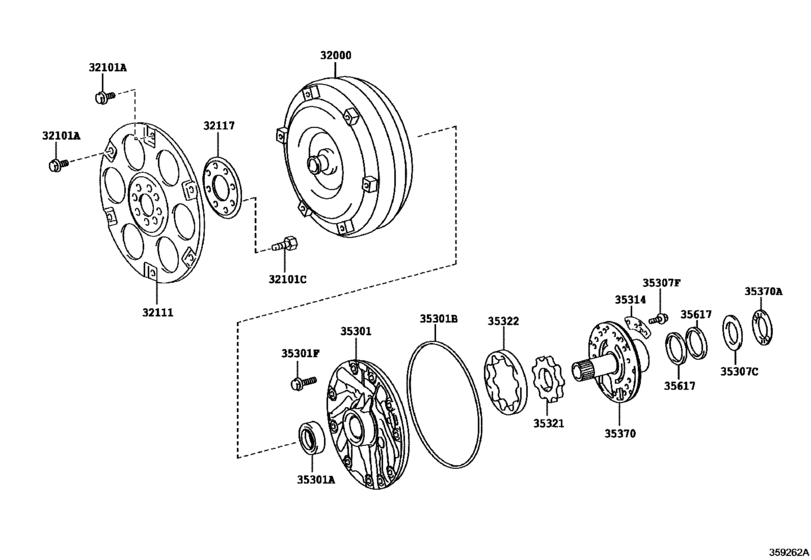

Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 32111-0K030 |
Plate, Pump Impeller Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 32111-71010 |
Plate, Pump Impeller Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 32117-60050 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35301-71010 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35314-71010 |
Plate, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35321-71010 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35322-71010 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35370-71010 |
Shaft Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35617-50030 |
Ring, Clutch Drum Oil Seal |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35697-60010 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 35789-71070 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90105-08091 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90105-10413 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90105-10546 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90105-T0113 |
Bolt, Hexagon(For Drive Plate Setting) - FLYWHEEL SET |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90105-T0237 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90148-60079 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90311-38101 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
| 90374-71002 |
Bearing,needle Roller |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2015 - ] AC60E,AC60F (1507- )GUN15#,16#..6FC) |
