GUN166

Toyota FORTUNER · 2015 · 3,597 parts · 229 categories

← Back to categories

3,597 items

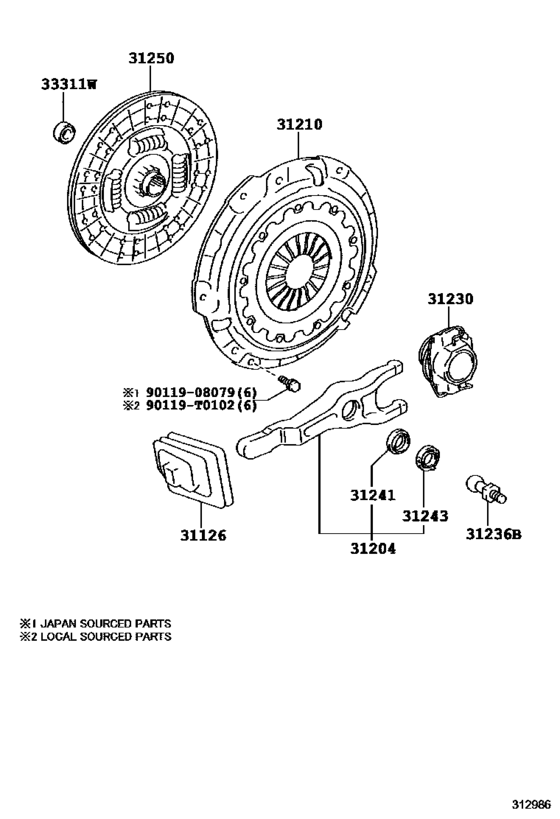

Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F) 14

#	OEM	Part name
31126	31126-0K080	Boot, Clutch Release Fork
31204	31204-0K110	Fork Sub-Assy, Clutch Release
31210	31210-0K280	Cover Assy, Clutch
31210	31210-0K281	COVER ASSY, CLUTCH
31230	31230-71050	Bearing Assy, Clutch Release
31230	31230-71052	BEARING ASSY CLUTCH
31236	31236-0K010	Support, Release Fork
31241	31241-71010	Boot, Clutch Release Fork Support
31243	31243-0K010	Collar, Clutch Release Fork
31250	31250-0K280	Disc Assy, Clutch
33311	90363-T0006	Bearing (For Input Shaft)
33311	90363-12024	Bearing, Radial Ball
90119	90119-T0102	Bolt (For Transmission Control Cable Bracket)
9011908079	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)

OEM	Part name	Category
31126-0K080	Boot, Clutch Release Fork	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31204-0K110	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31210-0K280	Cover Assy, Clutch	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31210-0K281	COVER ASSY, CLUTCH	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31230-71050	Bearing Assy, Clutch Release	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31230-71052	BEARING ASSY CLUTCH	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31236-0K010	Support, Release Fork	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31241-71010	Boot, Clutch Release Fork Support	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31243-0K010	Collar, Clutch Release Fork	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
31250-0K280	Disc Assy, Clutch	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
90119-T0102	Bolt (For Transmission Control Cable Bracket)	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
90363-12024	Bearing, Radial Ball	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
90363-T0006	Bearing (For Input Shaft)	Clutch & Release Fork ([07.2015 - ] (1507- )GUN156,16#..IDNSU,INDSU,THSUV..6F ; ( 1512-1609)GUN156..AGTSU..6F)
