Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

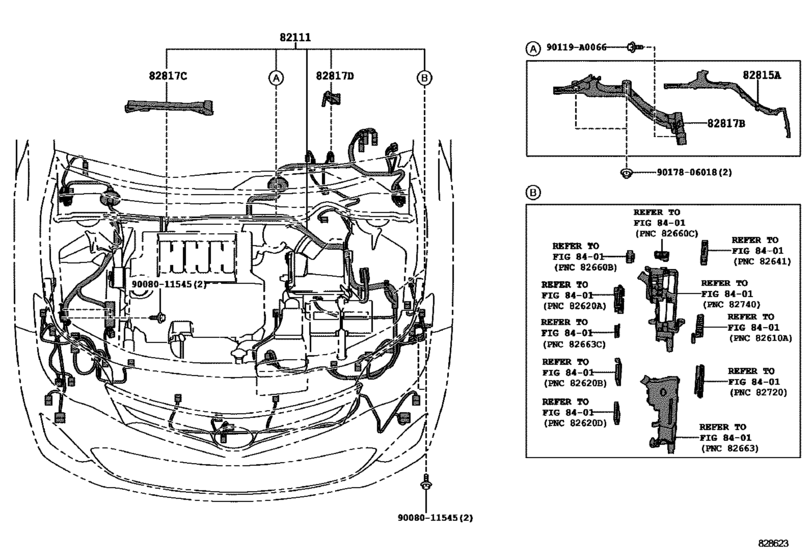

Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- )) 26

#	OEM	Part name
82111	82111-07800	Wire, Engine Room Main
82111	82111-07E50	Wire, Engine Room Main
82111	82111-07801	Wire, Engine Room Main
82111	82111-07802	Wire, Engine Room Main
82111	82111-07810	Wire, Engine Room Main
82111	82111-07E60	Wire, Engine Room Main
82111	82111-07811	Wire, Engine Room Main
82111	82111-07813	Wire, Engine Room Main
82111	82111-07812	Wire, Engine Room Main
82111	82111-07A10	Wire, Engine Room Main
82111	82111-07A11	Wire, Engine Room Main
82111	82111-07A20	Wire, Engine Room Main
82111	82111-07A21	Wire, Engine Room Main
82111	82111-07790	Wire, Engine Room Main
82111	82111-07E40	Wire, Engine Room Main
82111	82111-07791	Wire, Engine Room Main
82111	82111-07792	Wire, Engine Room Main
82111	82111-07A00	Wire, Engine Room Main
82111	82111-07A01	Wire, Engine Room Main
82815	82815-33420	Cover, Wiring Harness Protector
82817	82817-33B60	Protector, Wiring Harness, No.3
82817	82817-33G90	Protector, Wiring Harness, No.4
82817	82817-33K00	Protector, Wiring Harness, No.1
90119	90119-A0066	New Genuine Part
9008011545	90080-11545	New Genuine Part
9017806018	90178-06018	NUT,FLANGE

OEM	Part name	Category
82111-07790	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07791	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07792	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07800	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07801	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07802	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07810	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07811	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07812	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07813	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A00	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A01	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A10	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A11	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A20	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07A21	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07E40	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07E50	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82111-07E60	Wire, Engine Room Main	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82815-33420	Cover, Wiring Harness Protector	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82817-33B60	Protector, Wiring Harness, No.3	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82817-33G90	Protector, Wiring Harness, No.4	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
82817-33K00	Protector, Wiring Harness, No.1	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
90080-11545	New Genuine Part	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
90119-A0066	New Genuine Part	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
90178-06018	NUT,FLANGE	Wiring & Clamp ([10.2012 - ] ENGINE ROOM (1210- ))
