GSX40

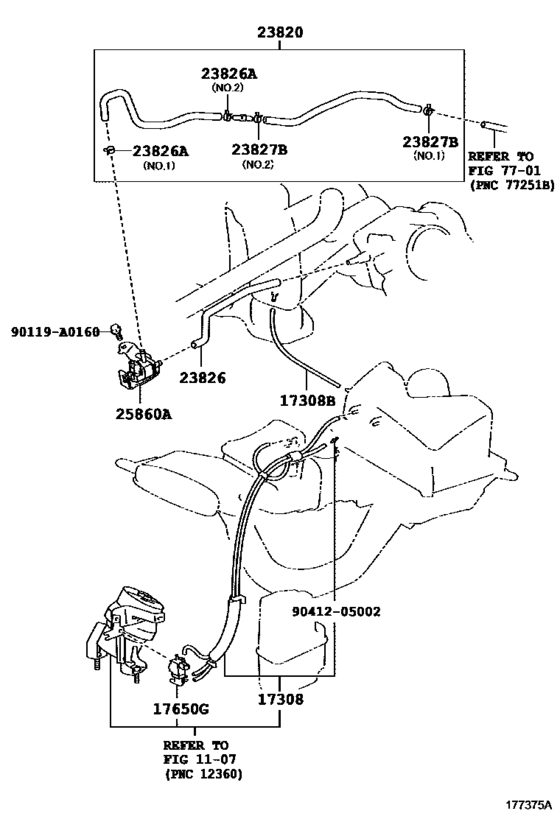

Vacuum Piping ([10.2012 - ] (1210- )) 13
| # | OEM | Part name |
|---|---|---|
| 17308 | 17308-0P111 | Hose Sub-Assy, Vacuum(For Idle-Up) |
| 17308 | 90999-92003 | Hose, Breather (For Transfer Case) |
| 17650 | 90910-12204 | Valve, Duty Vacuum Switching |
| 23820 | 23820-0P200 | Hose Assy, Fuel Vapor Feed |
| 23826 | 23826-0P040 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23827 | 90466-13005 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 25860 | 25860-31070 | Valve Assy, Vacuum Switching, No.1 |
| 90119 | 90119-A0160 | New Genuine Part |
| 9041205002 | 90412-05002 | Way, 2(For Fuel Expansion Tank) |
| OEM | Part name | Category |
|---|---|---|
| 17308-0P111 | Hose Sub-Assy, Vacuum(For Idle-Up) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 23820-0P200 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([10.2012 - ] (1210- )) |
| 23826-0P040 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([10.2012 - ] (1210- )) |
| 25860-31070 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90119-A0160 | New Genuine Part | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90412-05002 | Way, 2(For Fuel Expansion Tank) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90466-13005 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90910-12204 | Valve, Duty Vacuum Switching | Vacuum Piping ([10.2012 - ] (1210- )) |
| 90999-92003 | Hose, Breather (For Transfer Case) | Vacuum Piping ([10.2012 - ] (1210- )) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([10.2012 - ] (1210- )) |
