Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

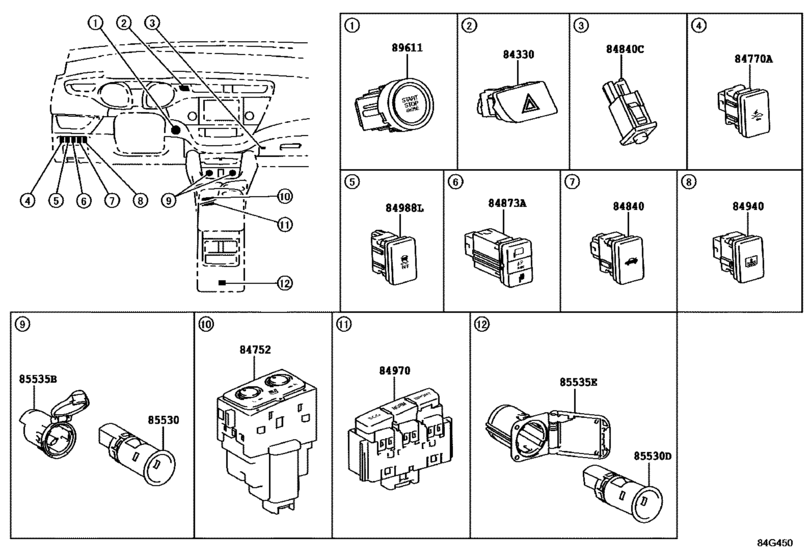

Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )) 20

#	OEM	Part name
84330	84332-07030	Switch Assy, Hazard Warning Signal
84330	84332-07031	Switch Assy, Hazard Warning Signal
84752	84752-07020	Switch, Refreshing Seat
84770	84770-07010	Switch Assy, Pre-Collision System Cancel
84770	84770-50011	Switch Assy, Pre-Collision System Cancel
84840	84840-07010	Switch Assy, Luggage Compartment Door Opening
84840	84840-07011	Switch Assy, Luggage Compartment Door Opening
84840	84840-24020	Switch Assy, Luggage Door Opening, Cancel
84873	84873-41020	Switch, Retractable Outer Mirror
84940	84940-07020	Switch Assy, Curtain
84940	84940-07021	Switch Assy, Curtain
84970	84970-07020	Switch Assy, Combination
84988	84988-07040	Switch, Vsc Off
84988	84988-07041	Switch, Vsc Off
85530	85530-06030	Socket Assy, Power Outlet, No.1
85535	85535-0E060-C0	Cover, Power Outlet Socket, No.1
85535	85535-48150	Cover, Power Outlet Socket, No.1
89611	89611-07020	Switch, Push Start
89611	89611-07021	Switch, Push Start
89611	89611-07022	Switch, Push Start

OEM	Part name	Category
84332-07030	Switch Assy, Hazard Warning Signal	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84332-07031	Switch Assy, Hazard Warning Signal	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84752-07020	Switch, Refreshing Seat	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84770-07010	Switch Assy, Pre-Collision System Cancel	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84770-50011	Switch Assy, Pre-Collision System Cancel	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84840-07010	Switch Assy, Luggage Compartment Door Opening	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84840-07011	Switch Assy, Luggage Compartment Door Opening	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84840-24020	Switch Assy, Luggage Door Opening, Cancel	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84873-41020	Switch, Retractable Outer Mirror	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84940-07020	Switch Assy, Curtain	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84940-07021	Switch Assy, Curtain	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84970-07020	Switch Assy, Combination	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84988-07040	Switch, Vsc Off	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
84988-07041	Switch, Vsc Off	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
85530-06030	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
85535-0E060-C0	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
85535-48150	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
89611-07020	Switch, Push Start	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
89611-07021	Switch, Push Start	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
89611-07022	Switch, Push Start	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- ))
