Search › Model › GSX40
GSX40

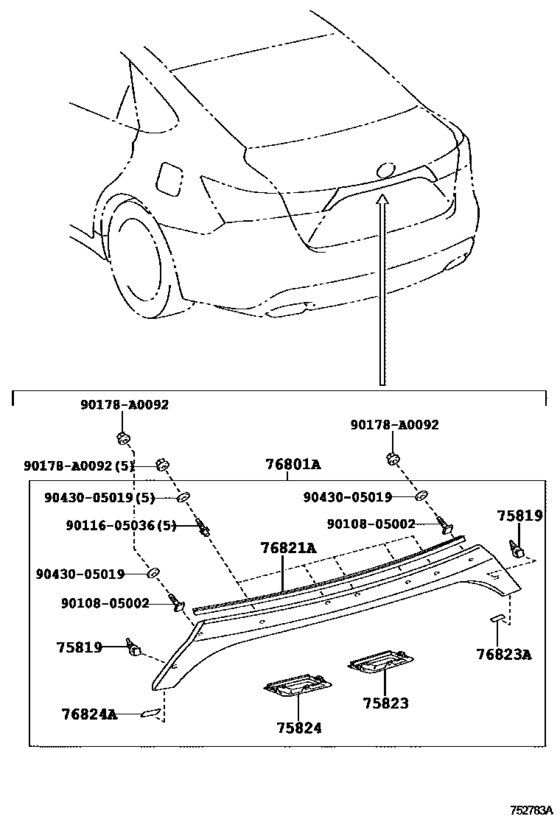

Rear Moulding ([10.2012 - ] (1210- )) 11
| # | OEM | Part name |
|---|---|---|
| 75819 | 76817-07010 | Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH |
| 75823 | 76813-07010 | Moulding, Luggage Compartment Door, Side Rh |
| 75824 | 76814-07010 | Moulding, Luggage Compartment Door, Side Lh |
| 76801 | 76801-07050 | Garnish Sub-Assy, Luggage Compartment Door, Outside |
| 76801 | 76801-07060 | Garnish Sub-Assy, Luggage Compartment Door, Outside |
| 76821 | 76825-07020 | Protector, Luggage Compartment Door Outside Garnish |
| 76823 | 76822-07020 | Protector, Back Door Garnish Moulding, Lower |
| 90178 | 90178-A0092 | NUT FLANGE |
| 9010805002 | 90108-05002 | BOLT SQUARE |
| 9011605036 | 90116-05036 | Bolt(For Garnish Setting) |
| 9043005019 | 90430-05019 | GASKETROUND TYPE |
| OEM | Part name | Category |
|---|---|---|
| 76801-07050 | Garnish Sub-Assy, Luggage Compartment Door, Outside | Rear Moulding ([10.2012 - ] (1210- )) |
| 76801-07060 | Garnish Sub-Assy, Luggage Compartment Door, Outside | Rear Moulding ([10.2012 - ] (1210- )) |
| 76813-07010 | Moulding, Luggage Compartment Door, Side Rh | Rear Moulding ([10.2012 - ] (1210- )) |
| 76814-07010 | Moulding, Luggage Compartment Door, Side Lh | Rear Moulding ([10.2012 - ] (1210- )) |
| 76817-07010 | Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH | Rear Moulding ([10.2012 - ] (1210- )) |
| 76822-07020 | Protector, Back Door Garnish Moulding, Lower | Rear Moulding ([10.2012 - ] (1210- )) |
| 76825-07020 | Protector, Luggage Compartment Door Outside Garnish | Rear Moulding ([10.2012 - ] (1210- )) |
| 90108-05002 | BOLT SQUARE | Rear Moulding ([10.2012 - ] (1210- )) |
| 90116-05036 | Bolt(For Garnish Setting) | Rear Moulding ([10.2012 - ] (1210- )) |
| 90178-A0092 | NUT FLANGE | Rear Moulding ([10.2012 - ] (1210- )) |
| 90430-05019 | GASKETROUND TYPE | Rear Moulding ([10.2012 - ] (1210- )) |
