Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

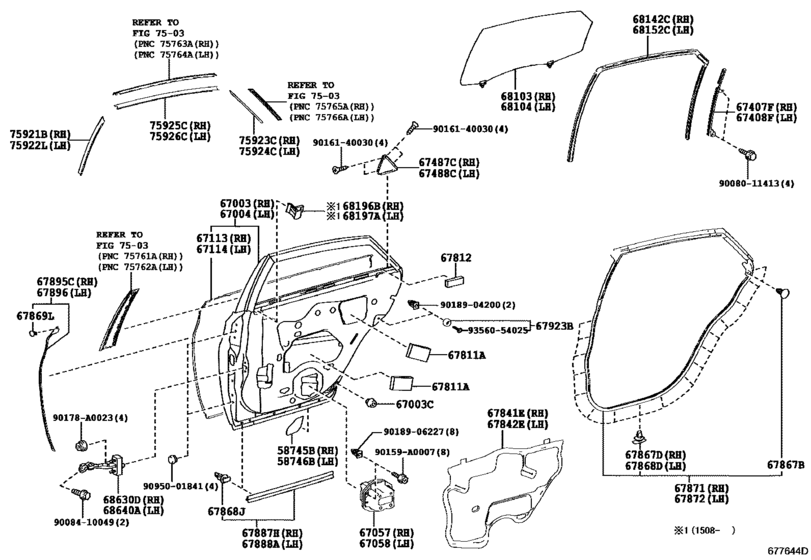

Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- )) 55

#	OEM	Part name
58745	58745-07010	Protector, Quarter Panel, Front Rh
58746	58746-07010	Protector, Quarter Panel, Front Lh
67003	67003-07030	Panel Sub-Assy, Rear Door, Rh
67003	67003-07031	Panel Sub-Assy, Rear Door, Rh
67003	90084-54012	Cushion, Front Door Panel
67003	90541-09124	Cushion, Luggage Compartment Door
67004	67004-07030	Panel Sub-Assy, Rear Door, Lh
67004	67004-07031	Panel Sub-Assy, Rear Door, Lh
67057	67057-07010	Reinforce Sub-Assy, Rear Door Inside Panel, Rh
67113	67113-07020	Panel, Rear Door, Outer Rh
67114	67114-07020	Panel, Rear Door, Outer Lh
67407	67407-07010	Frame Sub-Assy, Rear Door Window, Rear Lower Rh
67407	67407-07011	Frame Sub-Assy, Rear Door Window, Rear Lower Rh
67408	67408-07010	Frame Sub-Assy, Rear Door Window, Rear Lower Lh
67408	67408-07011	Frame Sub-Assy, Rear Door Window, Rear Lower Lh
67487	67487-07010	Seal, Rear Door Rear Guide, Rh
67488	67488-07010	Seal, Rear Door Rear Guide, Lh
67811	67811-AA040	Pad, Front Door Silencer
67812	62939-07020	Pad, Rear Door Silencer
67841	67841-07030	Cover, Rear Door Service Hole, Rh
67842	67842-07030	Cover, Rear Door Service Hole, Lh
67867	90467-05045-22	Clip(For Front Fender Seal)
67867	67867-12150	Clip(For Hood Air Intake Duct Seal)
67869	67869-33030	Clip, Rear Door Weatherstrip
67871	67871-07010	Weatherstrip, Rear Door, Rh
67872	67872-07010	Weatherstrip, Rear Door, Lh
67887	67887-07010	Weatherstrip, Rear Door, No.2 Rh
67895	67895-07010	Weatherstrip, Rear Door, No.3 Rh
67896	67896-07010	Weatherstrip, Rear Door, No.3 Lh
67923	67923-24030	Cushion, Front Door Stiffener, No.1
68103	68103-07030	Glass Sub-Assy, Rear Door, Rh
68103	68103-07031	Glass Sub-Assy, Rear Door, Rh
68104	68104-07030	Glass Sub-Assy, Rear Door, Lh
68104	68104-07031	Glass Sub-Assy, Rear Door, Lh
68142	68142-07010	Run, Rear Door Glass, Rh
68152	68152-07010	Run, Rear Door Glass, Lh
68196	68196-07010	Seal, Rear Door Belt, Front Rh
68197	68197-07010	Seal, Rear Door Belt, Front Lh
68630	68630-07020	Check Assy, Rear Door, Rh
68640	68640-07020	Check Assy, Rear Door, Lh
75921	75977-07010	Tape, Black Out, No.1 Rh
75922	75978-07010	Tape, Black Out, No.1 Lh
75923	75923-07010	Tape, Black Out, No.2 Rh
75924	75924-07010	Tape, Black Out, No.2 Lh
75925	75987-07010	Tape, Black Out, No.3 Rh
75926	75988-07010	Tape, Black Out, No.3 Lh
90159	90159-A0007	New Genuine Part
90178	90178-A0023	Nut, Wire Adjusting, No.2
9008011413	90080-11413	New Genuine Part
9008410049	90084-10049	New Genuine Part
9016140030	90161-40030	New Genuine Part
9018904200	90189-04200	GROMMET SCREW
9018906227	90189-06227	GROMMET SCREW
9095001841	90950-01841	Direct
9356054025	93560-54025	SCREW

OEM	Part name	Category
58745-07010	Protector, Quarter Panel, Front Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
58746-07010	Protector, Quarter Panel, Front Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
62939-07020	Pad, Rear Door Silencer	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67003-07030	Panel Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67003-07031	Panel Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67004-07030	Panel Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67004-07031	Panel Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67057-07010	Reinforce Sub-Assy, Rear Door Inside Panel, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67113-07020	Panel, Rear Door, Outer Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67114-07020	Panel, Rear Door, Outer Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67407-07010	Frame Sub-Assy, Rear Door Window, Rear Lower Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67407-07011	Frame Sub-Assy, Rear Door Window, Rear Lower Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67408-07010	Frame Sub-Assy, Rear Door Window, Rear Lower Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67408-07011	Frame Sub-Assy, Rear Door Window, Rear Lower Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67487-07010	Seal, Rear Door Rear Guide, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67488-07010	Seal, Rear Door Rear Guide, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67811-AA040	Pad, Front Door Silencer	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67841-07030	Cover, Rear Door Service Hole, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67842-07030	Cover, Rear Door Service Hole, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67867-12150	Clip(For Hood Air Intake Duct Seal)	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67869-33030	Clip, Rear Door Weatherstrip	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67871-07010	Weatherstrip, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67872-07010	Weatherstrip, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67887-07010	Weatherstrip, Rear Door, No.2 Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67895-07010	Weatherstrip, Rear Door, No.3 Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67896-07010	Weatherstrip, Rear Door, No.3 Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
67923-24030	Cushion, Front Door Stiffener, No.1	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68103-07030	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68103-07031	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68104-07030	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68104-07031	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68142-07010	Run, Rear Door Glass, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68152-07010	Run, Rear Door Glass, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68196-07010	Seal, Rear Door Belt, Front Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68197-07010	Seal, Rear Door Belt, Front Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68630-07020	Check Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
68640-07020	Check Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75923-07010	Tape, Black Out, No.2 Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75924-07010	Tape, Black Out, No.2 Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75977-07010	Tape, Black Out, No.1 Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75978-07010	Tape, Black Out, No.1 Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75987-07010	Tape, Black Out, No.3 Rh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
75988-07010	Tape, Black Out, No.3 Lh	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90080-11413	New Genuine Part	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90084-10049	New Genuine Part	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90084-54012	Cushion, Front Door Panel	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90159-A0007	New Genuine Part	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90161-40030	New Genuine Part	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90178-A0023	Nut, Wire Adjusting, No.2	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90189-04200	GROMMET SCREW	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90189-06227	GROMMET SCREW	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90467-05045-22	Clip(For Front Fender Seal)	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90541-09124	Cushion, Luggage Compartment Door	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
90950-01841	Direct	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
93560-54025	SCREW	Rear Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- ))
