Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

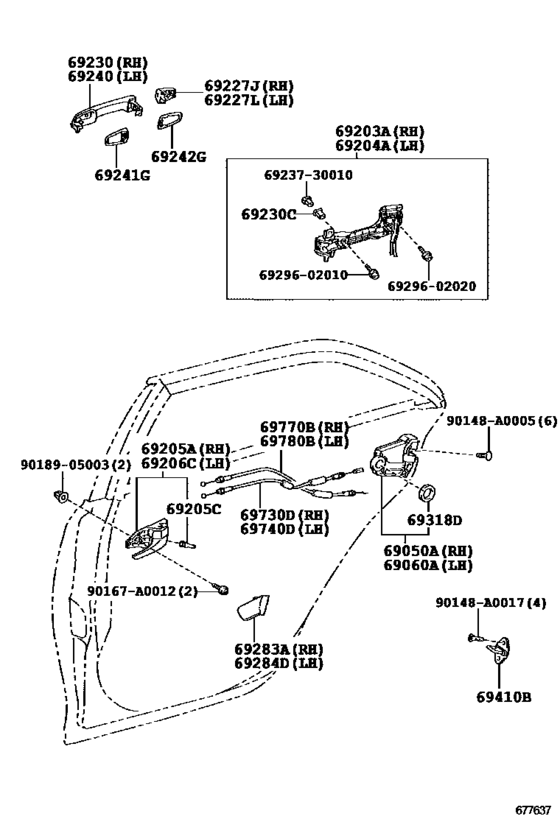

Rear Door Lock & Handle ([10.2012 - ] (1210- )) 47

#	OEM	Part name
69050	69050-07050	Lock Assy, Rear Door W/motor, Rh
69060	69060-07050	Lock Assy, Rear Door W/motor, Lh
69203	69203-07010	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-07010	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-07020-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90080-54005	Cushion(For Front Door Inside Handle)
69206	69206-07020-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69250-0T050-A0	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-B0	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-B1	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-B2	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-B3	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-C1	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-D1	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-D2	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-F0	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-G0	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-J1	Cover, Rear Door Outside Handle, Rh
69227	69250-0T050-J2	Cover, Rear Door Outside Handle, Rh
69230	69210-0T030-A0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69230	69210-0T030-B0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69230	69210-0T030-B1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69230	69210-0T030-B2	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-B3	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-C1	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-D1	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-D2	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-F0	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-G0	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-J1	Handle Assy, Front Door, Outside Rh
69230	69210-0T030-J2	Handle Assy, Front Door, Outside Rh
69230	69239-0T010	Bush(For Rear Door Outside Handle)
69241	69241-07010	Pad, Rear Door Outside Handle, Front
69242	69242-07010	Pad, Rear Door Outside Handle, Front
69283	69283-08010-C0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-08010-C0	Plug, Front Door Inside Handle Bezel, Lh
69318	69318-04010	Seal, Door Lock Wiring Harness, Rh
69410	69410-02020	Plate Assy, Front Door Lock Striker
69730	69730-07010	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-07020	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-A0005	Hexalobular Screw
90148	90148-A0017	New Genuine Part
90167	90167-A0012	New Genuine Part
6923730010	69237-30010	Nut, Front Door Handle
6929602010	69296-02010	Screw, Door Inside Handle
6929602020	69296-02020	Screw, Door Inside Handle
9018905003	90189-05003	CLIP

OEM	Part name	Category
69050-07050	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69060-07050	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69203-07010	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69204-07010	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69205-07020-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69206-07020-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-A0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-B0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-B1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-B2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-B3	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-C1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-D1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-D2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-F0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-G0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-J1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69210-0T030-J2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69237-30010	Nut, Front Door Handle	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69239-0T010	Bush(For Rear Door Outside Handle)	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69241-07010	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69242-07010	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-A0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-B0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-B1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-B3	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-C1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-D1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-D2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-F0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-G0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-J1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69250-0T050-J2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69283-08010-C0	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69284-08010-C0	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69296-02010	Screw, Door Inside Handle	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69296-02020	Screw, Door Inside Handle	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69318-04010	Seal, Door Lock Wiring Harness, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69410-02020	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69730-07010	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69770-07020	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90080-54005	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90148-A0017	New Genuine Part	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90167-A0012	New Genuine Part	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90189-05003	CLIP	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
