Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories
GSX40 ×

← Back to categories

4,364 items

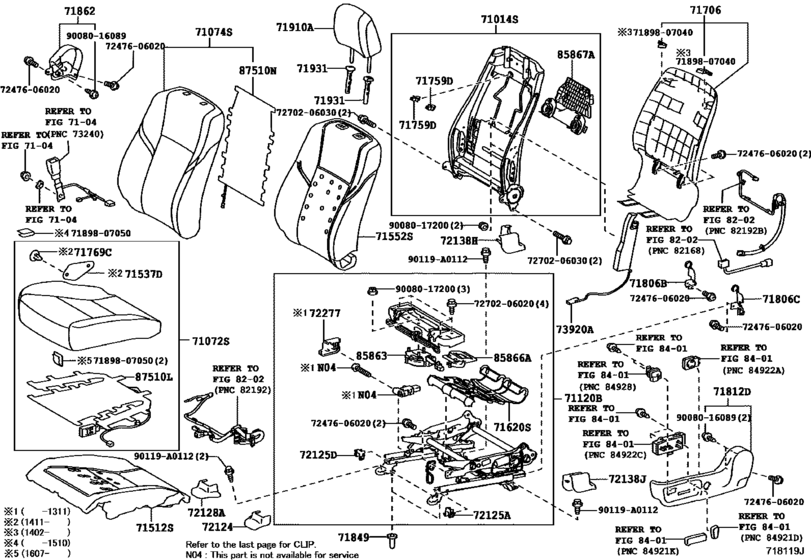

Front Seat & Seat Track ([10.2012 - ] DRIVER W(SEAT AIR CONDITIONER) (1210- )) 124
#OEMPart name
71014 71104-07020 Frame Sub-Assy, Front Seat Back, Lh
71014 71104-07030 Frame Sub-Assy, Front Seat Back, Lh
71072 71072-07200-A2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-A2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07200-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07200-C2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-C2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07201-A2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07201-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07201-C2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-A3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07202-C3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-A3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-A4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-C3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07180-C4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07181-A4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07181-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-07181-C4 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 71074-07320-A2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-A3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07320-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07320-C2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-C3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-A2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07321-C2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07350-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07350-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07350-C1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-A2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-A3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-C2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07300-C3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07330-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07330-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-07330-C1 Cover, Front Seat Back, Lh(For Separate Type)
71120 71120-07060 Frame Assy, Front Seat W/adjuster, Lh
71120 71120-07061 Frame Assy, Front Seat W/adjuster, Lh
71120 73240-07021-C0 Belt Assy, Front Seat Inner, Lh
71120 71120-07062 Frame Assy, Front Seat W/adjuster, Lh
71120 71120-07070 Frame Assy, Front Seat W/adjuster, Lh
71120 71120-07071 Frame Assy, Front Seat W/adjuster, Lh
71120 73240-07031-C0 Belt Assy, Front Seat Inner, Lh
71120 71120-07072 Frame Assy, Front Seat W/adjuster, Lh
71512 71512-07020 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-07010 Pad, Front Seat Cushion, Lh (For Separate Type)
71537 71537-06190 Protector, Front Seat Cushion
71552 71552-07080 Pad, Front Seat Back, Lh(For Separate Type)
71552 71552-07050 Pad, Front Seat Back, Lh(For Separate Type)
71620 71620-06370 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71706 71705-07070-A0 Board Sub-Assy, Front Seat Back, Rh
71706 71705-07071-A0 Board Sub-Assy, Front Seat Back, Rh
71706 71705-07070-B0 Board Sub-Assy, Front Seat Back, Rh
71706 71705-07071-B0 Board Sub-Assy, Front Seat Back, Rh
71706 71705-07070-C0 Board Sub-Assy, Front Seat Back, Rh
71706 71705-07071-C0 Board Sub-Assy, Front Seat Back, Rh
71759 71759-06020 Hook, Front Seat Back
71769 71769-60010-A4 Clip, Front Seat Cushion Cover
71769 71769-60010-C0 Clip(For Rear Seat)
71769 71769-60010-P1 Clip, Front Seat Cushion Shield, Rh
71806 71806-06010-C0 Shield Sub-Assy, Front Seat Cushion, Lh No.1
71806 71806-06020-C0 Shield Sub-Assy, Front Seat Cushion, Lh No.2
71812 71812-07070-C0 Shield, Front Seat Cushion, Lh
71812 71812-06200-C0 Shield, Front Seat Cushion, Lh
71849 71848-0T020 Cap, Seat Adjuster Cover, Rh
71862 71862-06140-C0 Shield, Front Seat Cushion, Inner Lh
71910 71910-07160-A0 Headrest Assy, Front Seat
71910 71910-07160-A1 Headrest Assy, Front Seat
71910 71910-07160-B0 Headrest Assy, Front Seat
71910 71910-07160-B2 Headrest Assy, Front Seat
71910 71910-07160-C0 Headrest Assy, Front Seat
71910 71910-07160-C1 Headrest Assy, Front Seat
71910 71910-07161-A1 Headrest Assy, Front Seat
71910 71910-07161-B2 Headrest Assy, Front Seat
71910 71910-07161-C1 Headrest Assy, Front Seat
71910 71910-07140-A4 Headrest Assy, Front Seat
71910 71910-07140-A5 Headrest Assy, Front Seat
71910 71910-07140-B4 Headrest Assy, Front Seat
71910 71910-07140-B5 Headrest Assy, Front Seat
71910 71910-07140-C4 Headrest Assy, Front Seat
71910 71910-07140-C6 Headrest Assy, Front Seat
71910 71910-07141-A5 Headrest Assy, Front Seat
71910 71910-07141-B5 Headrest Assy, Front Seat
71910 71910-07141-C6 Headrest Assy, Front Seat
71931 71930-47020-A7 Support, Front Seat Headrest
71931 71930-47020-B1 Support, Front Seat Headrest
71931 71930-47020-C0 Support, Front Seat Headrest
71931 71931-47020-A7 Support, Front Seat Headrest
71931 71931-47020-B1 Support, Front Seat Headrest
71931 71931-47020-C0 Support, Front Seat Headrest
72124 72124-07020-C0 Cover, Seat Track Bracket, Outer Front Lh
72125 72125-06010 Cover, Seat Track, Upper Rear
72125 72125-06020 Cover, Seat Track, Upper Rear No.2
72128 72128-07020-C0 Cover, Seat Track Bracket, Inner Front Lh
72138 72158-07030-C0 Cover, Front Seat Track, Lh Rear Inner
72138 72138-07030-C0 Cover, Front Seat Track, Lh Rear Outer
72277 72277-06010 Protector, Seat Slide Position Sensor,
73920 73920-07030 Air Bag Assy, Front Seat, Lh
73920 73920-07040 Air Bag Assy, Front Seat, Lh
85863 85862-07010 Blower, Seat Climate Control, Rh
85863 85862-07011 Blower, Seat Climate Control, Rh
85866 85866-07010 Duct, Seat Cushion Climate Control, Rh
85867 85867-07010 Blower, Seat Back Climate Control, Rh
87510 87510-07020 Heater Assy, Front Seat Cushion, Rh
87510 87510-07022 Heater Assy, Front Seat Cushion, Rh
87510 87510-07021 Heater Assy, Front Seat Cushion, Rh
87510 87530-07020 Heater Assy, Front Seat Back, Rh
87510 87530-07021 Heater Assy, Front Seat Back, Rh
90119 90119-A0112 New Genuine Part
7189807040 71898-07040 Retainer, Rear Seat Back Cover Side
7189807050 71898-07050 Hook, Front Seat Cover
7247606020 72476-06020 Screw, Horizontal Jack, Inner
7270206020 72702-06020 Bracket Sub-assy, Rear Seat Back Striker
7270206030 72702-06030 Bracket Sub-assy, Rear Seat Back Striker
9008016089 90080-16089 New Genuine Part
9008017200 90080-17200 New Genuine Part
