Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

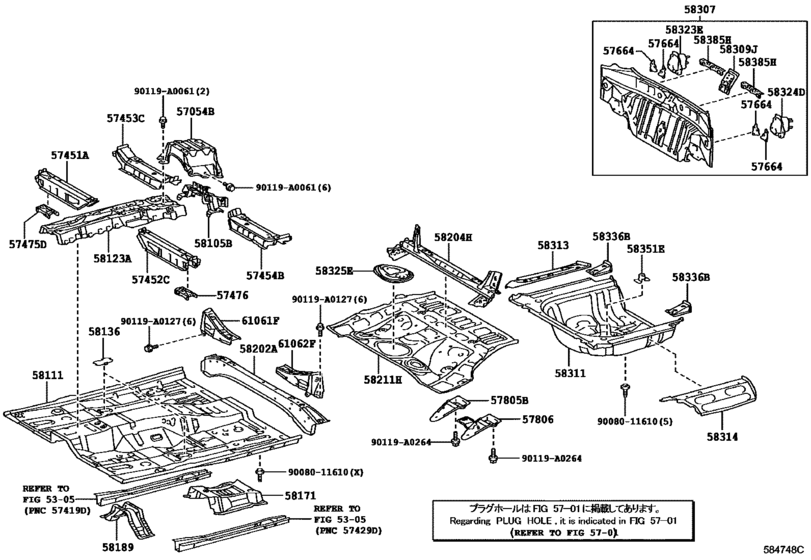

Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- )) 38

#	OEM	Part name
57054	57054-06040	Reinforcet Sub-Assy, Cross Member Floor, No.4
57451	57451-07050	Member, Front Floor Cross, Rh
57452	57452-07011	Member, Front Floor Cross, Lh
57453	57453-06060	Member, Front Floor Cross Side, Rh
57454	57454-06060	Member, Front Floor Cross Side, Lh
57475	57475-06020	Plate, Front Floor Crossmember, Rh
57476	57476-06010	Plate, Front Floor Crossmember, Lh
57664	58325-07010	Brace, Body Lower Back Panel
57805	57805-06020	Reinforcement Sub-Assy, Belt Anchor, Rh
57806	57806-06020	Reinforcement Sub-Assy, Belt Anchor, Lh
58105	58105-06010	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-07042	Pan, Front Floor
58111	58111-07903	Pan, Front Floor
58123	58013-06050	Support, Shift & Select Lever
58136	58136-06050	Cover, Front Floor Hole
58171	58171-07050	Reinforcement, Parking Brake Base
58189	58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket
58202	58202-06050	Pan Sub-Assy, Center Floor, Front
58204	58204-07010	Pan Sub-Assy, Center Floor, Rear
58211	58211-06201	Pan, Center Floor
58307	58307-07040	Panel Sub-Assy, Body Lower Back
58309	58309-07030	Retainer Sub-Assy, Luggage Door Lock Striker
58311	58311-06151	Pan, Rear Floor
58313	58313-06120	Panel, Rear Floor Side, Rh
58314	58314-06120	Panel, Rear Floor Side, Lh
58323	58303-07010	Reinforcement, Rear Bumper Arm Support, Rh
58324	58304-07010	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-06060	Cover, Rear Floor Service Hole
58325	58325-06061	Cover, Rear Floor Service Hole
58336	58336-06070	Reinforcement, Rear Floor Pan
58351	58351-06030	Bracket, Spare Wheel Clamp
58385	58385-06080	Bracket, Rear Bumper Cover
61061	61061-06032	Gusset Sub-Assy, Quarter Wheel House, No.1
61062	61062-06032	Gusset Sub-Assy, Quarter Wheel House, No.2
90119	90119-A0061	New Genuine Part
90119	90119-A0127	New Genuine Part
90119	90119-A0264	New Genuine Part
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)

OEM	Part name	Category
57054-06040	Reinforcet Sub-Assy, Cross Member Floor, No.4	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57451-07050	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57452-07011	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57453-06060	Member, Front Floor Cross Side, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57454-06060	Member, Front Floor Cross Side, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57475-06020	Plate, Front Floor Crossmember, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57476-06010	Plate, Front Floor Crossmember, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57805-06020	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
57806-06020	Reinforcement Sub-Assy, Belt Anchor, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58013-06050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58105-06010	Panel Sub-Assy, Front Floor Rear Upper Sub	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58111-07042	Pan, Front Floor	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58111-07903	Pan, Front Floor	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58136-06050	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58171-07050	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58202-06050	Pan Sub-Assy, Center Floor, Front	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58204-07010	Pan Sub-Assy, Center Floor, Rear	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58211-06201	Pan, Center Floor	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58303-07010	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58304-07010	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58307-07040	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58309-07030	Retainer Sub-Assy, Luggage Door Lock Striker	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58311-06151	Pan, Rear Floor	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58313-06120	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58314-06120	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58325-06060	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58325-06061	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58325-07010	Brace, Body Lower Back Panel	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58336-06070	Reinforcement, Rear Floor Pan	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58351-06030	Bracket, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
58385-06080	Bracket, Rear Bumper Cover	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
61061-06032	Gusset Sub-Assy, Quarter Wheel House, No.1	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
61062-06032	Gusset Sub-Assy, Quarter Wheel House, No.2	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
90119-A0061	New Genuine Part	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
90119-A0127	New Genuine Part	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
90119-A0264	New Genuine Part	Floor Pan & Lower Back Panel ([10.2012 - ] FLOOR PANEL & LOWER BACK PANEL (1210- ))
