Search › Model › GSX40
GSX40

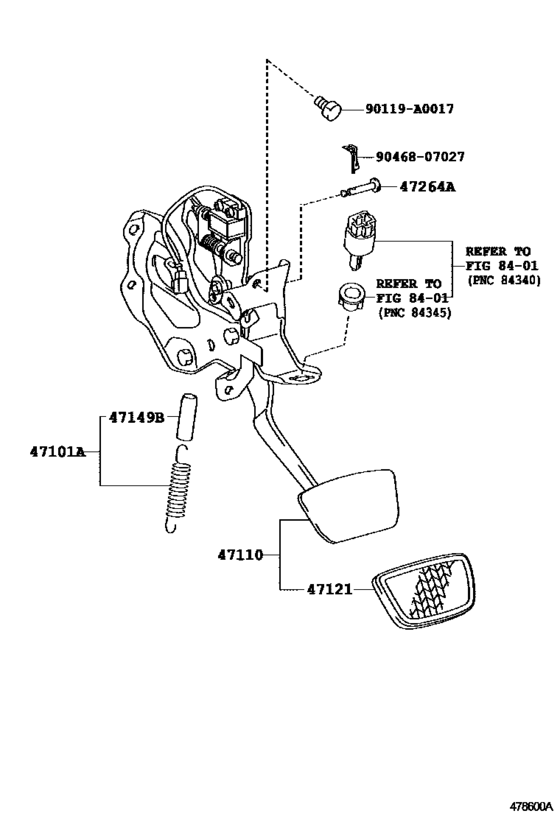

Brake Pedal & Bracket ([10.2012 - ] (1210- )) 8
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-12046 | Spring(For Brake Pedal Return) |
| 47110 | 47110-06270 | Support Assy, Brake Pedal |
| 47110 | 47110-06271 | Support Assy, Brake Pedal |
| 47121 | 47121-0E010 | Pad, Brake Pedal |
| 47149 | 47149-33040 | Damper, Return Spring |
| 47264 | 90249-06180 | Pin(For Push Rod) |
| 90119 | 90119-A0017 | New Genuine Part |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-06270 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 47110-06271 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 47121-0E010 | Pad, Brake Pedal | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 47149-33040 | Damper, Return Spring | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 90119-A0017 | New Genuine Part | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 90249-06180 | Pin(For Push Rod) | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
| 90507-12046 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([10.2012 - ] (1210- )) |
