Search › Model › GSX40

GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories
GSX40 ×

← Back to categories

4,364 items

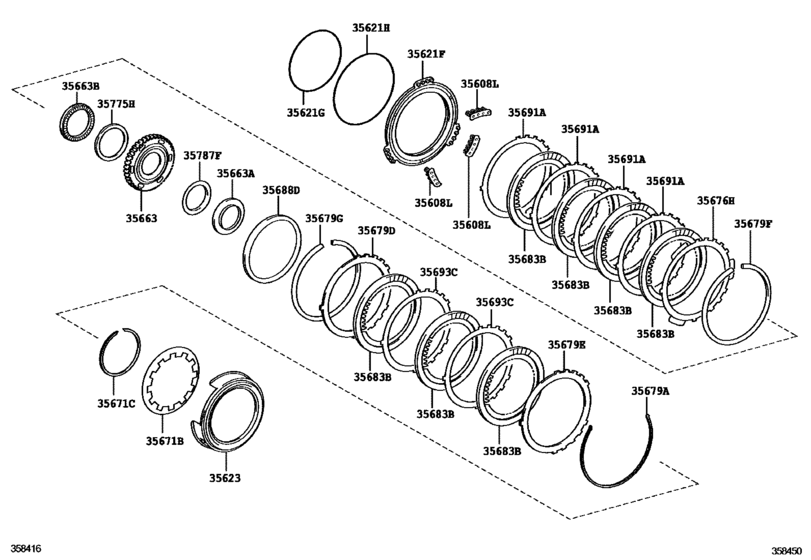

Brake No.3, 1St & Reverse Brake (Atm) ([10.2012 - ] U660E (1210- )) 75
#OEMPart name
35608 35608-08010 Spring Sub-Assy, 2Nd Brake Piston Return
35608 35608-33030 Spring Sub-Assy, 2Nd Brake Piston Return
35621 35621-06020 Piston, Brake, No.1
35621 35621-33010 Piston, Brake, No.1
35621 35621-48010 Piston, Brake, No.1
35621 90301-99190 Ring, O (For Brake Piston Inner)
35621 90301-A0023 Ring, O (For Brake Piston Inner)
35621 90080-30080 Ring, O (For Brake Piston Outer)
35621 90301-99189 Ring, O (For Brake Piston Outer)
35623 35623-08020 Piston, Brake, No.3
35623 35623-33060 Piston, Brake, No.3
35623 35623-48030 Piston, Brake, No.3
35663 35663-33020 Hub, Brake No.3
35663 90374-62006 Bearing, Thrust Needle Roller, No.1
35663 90374-62009 Bearing, Thrust Needle Roller, No.1
35663 90374-A0027 Bearing, Thrust Needle Roller, No.1
35663 90374-62008 Bearing, Thrust Needle Roller, No.2
35663 90374-64002 Bearing, Thrust Needle Roller, No.2
35663 90374-A0026 Bearing, Thrust Needle Roller, No.2
35663 90374-A0041 Bearing, Thrust Needle Roller, No.2
35671 35671-08010 Spring, Brake Piston Return
35671 35671-33010 Spring, Brake Piston Return
35671 90520-99103 Ring, Snap (For Brake Piston Return Spring)
35671 90520-A0011 Ring, Snap (For Brake Piston Return Spring)
35676 35676-07010 Flange, Brake, No.1
35676 35676-07020 Flange, Brake, No.1
35676 35676-07030 Flange, Brake, No.1
35676 35676-07040 Flange, Brake, No.1
35676 35676-07050 Flange, Brake, No.1
35676 35676-07060 Flange, Brake, No.1
35676 35676-33020 Flange, Brake, No.1
35676 35676-33030 Flange, Brake, No.1
35676 35676-33040 Flange, Brake, No.1
35676 35676-33050 Flange, Brake, No.1
35676 35676-33060 Flange, Brake, No.1
35676 35676-33070 Flange, Brake, No.1
35676 35676-33080 Flange, Brake, No.1
35679 90521-99136 Ring, Hole Snap(For Brake Flange)
35679 90521-A0017 Ring, Hole Snap(For Brake Flange)
35679 35679-07010 Frange, Brake, No.2
35679 35679-73010 Frange, Brake, No.2
35679 35679-07020 Frange, Brake, No.3
35679 35679-07030 Frange, Brake, No.3
35679 35679-07040 Frange, Brake, No.3
35679 35679-07050 Frange, Brake, No.3
35679 35679-07060 Frange, Brake, No.3
35679 35679-07070 Frange, Brake, No.3
35679 35679-73020 Frange, Brake, No.3
35679 35679-73030 Frange, Brake, No.3
35679 35679-73040 Frange, Brake, No.3
35679 35679-73050 Frange, Brake, No.3
35679 35679-73060 Frange, Brake, No.3
35679 35679-73070 Frange, Brake, No.3
35679 35679-73080 Frange, Brake, No.3
35679 35679-73090 Frange, Brake, No.3
35679 35679-73100 Frange, Brake, No.3
35679 90520-99116 Ring, Snap(For Brake Flange)
35679 90520-99112 Ring, Snap (For Rake Flange No.3)
35683 35683-06010 Disc, Brake, No.3
35683 35683-07020 Disc, Brake, No.3
35683 35683-33030 Disc, Brake, No.3
35688 35688-33010 Stopper, Brake Snap Ring
35688 35688-45010 Stopper, Brake Snap Ring
35691 35691-07010 Plate, Brake, No.1
35691 35691-33010 Plate, Brake, No.1
35693 35693-07010 Plate, Brake, No.3
35693 35693-33010 Plate, Brake, No.3
35775 35775-07010 Race, Thrust Bearing, No.5
35775 35775-33010 Race, Thrust Bearing, No.5
35775 35775-48020 Race, Thrust Bearing, No.5
35787 35787-07010 Race, Thrust Bearing, No.2
35787 35787-0R010 Race, Thrust Bearing, No.2
35787 35787-33010 Race, Thrust Bearing, No.2
35787 35787-48021 Race, Thrust Bearing, No.2
35787 35787-48020 Race, Thrust Bearing, No.2
