GSX40

Toyota AVALON · 2012 · 4,364 parts · 181 categories

4,364 items

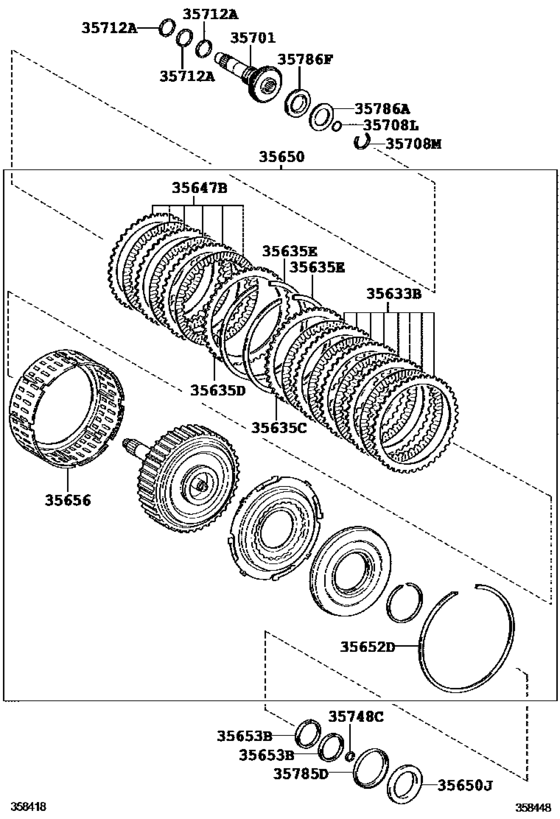

Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- )) 45

#	OEM	Part name
35633	35607-08010	Disc, Clutch (For Forward Multiple Disc Clutch)
35633	35607-33010	Disc, Clutch (For Forward Multiple Disc Clutch)
35635	35635-08060	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08070	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08080	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08090	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08100	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08110	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-08120	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73010	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73020	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73030	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73040	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73050	Clutch Frange, Direct Multiple Disc, No.1
35635	35635-73060	Clutch Frange, Direct Multiple Disc, No.1
35635	90520-99107	Ring, Snap (For Direct Multiple Disc Clutch)
35635	90520-A0020	Ring, Snap (For Direct Multiple Disc Clutch)
35647	35065-08010	Plate, Clutch, No.2
35647	35065-33020	Plate, Clutch, No.2
35650	35650-08010	Clutch Assy, Rear Multiple Disc
35650	35650-33070	Clutch Assy, Rear Multiple Disc
35650	90374-48006	Bearing, Thrust Needle Roller (For Direct Disc Clutch)
35650	90374-48009	Bearing, Thrust Needle Roller (For Direct Disc Clutch)
35650	90374-A0032	Bearing, Thrust Needle Roller (For Direct Disc Clutch)
35652	90520-99111	Ring, Snap (For Direct Clutch Piston)
35652	90520-A0022	Ring, Snap (For Direct Clutch Piston)
35653	35653-33010	Ring, Rear Clutch Oil Seal, Outer
35656	35656-08010	Piston, Direct Clutch, No.2
35656	35656-33010	Piston, Direct Clutch, No.2
35701	35711-33060	Shaft Sub-Assy, Input
35708	90301-11032	Ring, O (For Intermediate Shaft)
35708	90301-A0024	Ring, O (For Intermediate Shaft)
35708	90520-23065	Ring, Snap (For Intermediate Shaft)
35712	35712-0R010	Ring, Input Shaft Oil Seal
35712	35712-33010	Ring, Input Shaft Oil Seal
35712	35712-33020	Ring, Input Shaft Oil Seal
35748	35748-33010	Ring, Intermediate Shaft Oil Seal
35785	35785-06010	Race, Thrust Bearing, No.4
35785	35785-33020	Race, Thrust Bearing, No.4
35785	35785-48020	Race, Thrust Bearing, No.4
35786	35786-07010	Race, Thrust Bearing, No.1
35786	35786-33010	Race, Thrust Bearing, No.1
35786	90374-29005	Bearing, Thrust Needle Roller
35786	90374-A0025	Bearing, Thrust Needle Roller
35786	90374-A0040	Bearing, Thrust Needle Roller

OEM	Part name	Category
35065-08010	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35065-33020	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35607-08010	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35607-33010	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08060	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08070	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08080	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08090	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08100	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08110	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-08120	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73010	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73020	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73030	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73040	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73050	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35635-73060	Clutch Frange, Direct Multiple Disc, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35650-08010	Clutch Assy, Rear Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35650-33070	Clutch Assy, Rear Multiple Disc	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35653-33010	Ring, Rear Clutch Oil Seal, Outer	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35656-08010	Piston, Direct Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35656-33010	Piston, Direct Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35711-33060	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35712-0R010	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35712-33010	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35712-33020	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35748-33010	Ring, Intermediate Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35785-06010	Race, Thrust Bearing, No.4	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35785-33020	Race, Thrust Bearing, No.4	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35785-48020	Race, Thrust Bearing, No.4	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35786-07010	Race, Thrust Bearing, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
35786-33010	Race, Thrust Bearing, No.1	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90301-11032	Ring, O (For Intermediate Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90301-A0024	Ring, O (For Intermediate Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-29005	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-48006	Bearing, Thrust Needle Roller (For Direct Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-48009	Bearing, Thrust Needle Roller (For Direct Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-A0025	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-A0032	Bearing, Thrust Needle Roller (For Direct Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90374-A0040	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90520-23065	Ring, Snap (For Intermediate Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90520-99107	Ring, Snap (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90520-99111	Ring, Snap (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90520-A0020	Ring, Snap (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
90520-A0022	Ring, Snap (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([10.2012 - ] U660E (1210- ))
