Search › Model › GSX30

GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories

5,340 items

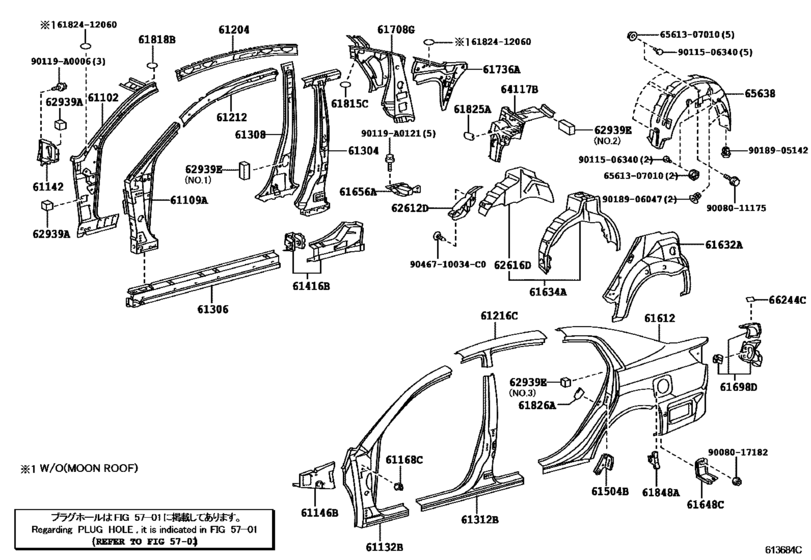

Side Member ([03.2010 - ] LH (1003- )) 51

#	OEM	Part name
61102	61102-AC010	Panel Sub-Assy, Cowl Side, Lh
61109	61109-AC030	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61132	61132-AC020	Pillar, Front Body, Outer Lh
61142	61142-AC010	Gusset, Front Pillar Upper Corner, Lh
61146	61146-AC020	Gusset, Front Body Pillar, Lower Lh
61168	61168-06010	Bracket, Instrument Panel To Cowl Side, Rh - NO.6 PILLAR OUTER
61204	61204-AC010	Rail Sub-Assy, Roof Side, Inner Lh
61212	61212-AC020	Rail, Roof Side, Outer Lh
61216	61216-AC010	Rail, Roof Side, Outer No.3 Lh
61304	61304-AC020	Reinforce Sub-Assy, Center Body Pillar, Upper Lh
61306	61306-AC901	Reinforce Sub-Assy, Center Body Pillar, Lower Lh
61308	61308-AC010	Pillar Sub-Assy, Center Body, Inner Lh
61312	61312-AC020	Pillar, Center Body, Outer Lh
61416	61416-AC901	Extension, Rocker, Outer Lh
61504	61504-AC020	Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
61612	61612-AC020	Panel, Quarter, Lh
61632	61632-AC901	Panel, Quarter Wheel House, Outer Lh
61634	61634-AA901	Panel, Quarter Wheel House, Inner Lh
61648	61648-07010	Reinforcement, Wheel House, Lh
61648	61648-AC010	Reinforcement, Wheel House, Lh
61656	61656-33010	Gusset, Quarter Wheel House, Inner Lh
61698	61698-AC901	Housing, Quarter Panel End, Lh
61708	61708-AC011	Panel Sub-Assy, Roof Side, Inner Front Lh
61736	61736-AC020	Panel, Roof Side, Inner Rear Lh
61815	61815-AC030	Cover, Roof Side, Inner No.2 Rh
61815	61824-12060	Plate, Noise Control, No.1
61818	61817-AA010	Cover, Roof Side, Inner Lower Rh
61825	61825-AA020	Plate, Noise Control, No.2
61826	61826-AA010	Plate, Noise Control, No.3
61848	61848-AC031	Retainer, Quarter Panel, Lh
62612	62612-AC010	Pad, Quarter Wheel House, Lh
62612	62612-AC011	Pad, Quarter Wheel House, Lh
62616	62616-AA011	Cover, Quarter Wheel House, Inner Lh
62939	62939-0T010	Silencer, Quarter Vent
62939	62939-32030	Silencer, Quarter Vent
62939	62939-06010	Silencer, Quarter Vent
62939	62939-07010	Silencer, Quarter Vent
62939	62939-AC010	Silencer, Quarter Vent
64117	64202-AC010	Reinforcement, Upper Back, Lh
65638	65638-07010	Liner, Rear Wheel House, Lh
65638	65638-AC010	Liner, Rear Wheel House, Lh
66244	66244-07010	Protector, Rear Body, No.2
90119	90119-A0006	New Genuine Part
90119	90119-A0121	New Genuine Part
6561307010	65613-07010	Strip, Side Gate Hinge, Inside
9008011175	90080-11175	New Genuine Part
9008017182	90080-17182	NUT FLANGE
9011506340	90115-06340	BOLT WELD
9018905142	90189-05142	GROMMET, SCREW
9018906047	90189-06047	GROMMET
9046710034	90467-10034-C0	Clip(For Step Plate)

OEM	Part name	Category
61102-AC010	Panel Sub-Assy, Cowl Side, Lh	Side Member ([03.2010 - ] LH (1003- ))
61109-AC030	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([03.2010 - ] LH (1003- ))
61132-AC020	Pillar, Front Body, Outer Lh	Side Member ([03.2010 - ] LH (1003- ))
61142-AC010	Gusset, Front Pillar Upper Corner, Lh	Side Member ([03.2010 - ] LH (1003- ))
61146-AC020	Gusset, Front Body Pillar, Lower Lh	Side Member ([03.2010 - ] LH (1003- ))
61168-06010	Bracket, Instrument Panel To Cowl Side, Rh - NO.6 PILLAR OUTER	Side Member ([03.2010 - ] LH (1003- ))
61204-AC010	Rail Sub-Assy, Roof Side, Inner Lh	Side Member ([03.2010 - ] LH (1003- ))
61212-AC020	Rail, Roof Side, Outer Lh	Side Member ([03.2010 - ] LH (1003- ))
61216-AC010	Rail, Roof Side, Outer No.3 Lh	Side Member ([03.2010 - ] LH (1003- ))
61304-AC020	Reinforce Sub-Assy, Center Body Pillar, Upper Lh	Side Member ([03.2010 - ] LH (1003- ))
61306-AC901	Reinforce Sub-Assy, Center Body Pillar, Lower Lh	Side Member ([03.2010 - ] LH (1003- ))
61308-AC010	Pillar Sub-Assy, Center Body, Inner Lh	Side Member ([03.2010 - ] LH (1003- ))
61312-AC020	Pillar, Center Body, Outer Lh	Side Member ([03.2010 - ] LH (1003- ))
61416-AC901	Extension, Rocker, Outer Lh	Side Member ([03.2010 - ] LH (1003- ))
61504-AC020	Reinforcement Sub-Assy, Quarter Lock Pillar, Lh	Side Member ([03.2010 - ] LH (1003- ))
61612-AC020	Panel, Quarter, Lh	Side Member ([03.2010 - ] LH (1003- ))
61632-AC901	Panel, Quarter Wheel House, Outer Lh	Side Member ([03.2010 - ] LH (1003- ))
61634-AA901	Panel, Quarter Wheel House, Inner Lh	Side Member ([03.2010 - ] LH (1003- ))
61648-07010	Reinforcement, Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
61648-AC010	Reinforcement, Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
61656-33010	Gusset, Quarter Wheel House, Inner Lh	Side Member ([03.2010 - ] LH (1003- ))
61698-AC901	Housing, Quarter Panel End, Lh	Side Member ([03.2010 - ] LH (1003- ))
61708-AC011	Panel Sub-Assy, Roof Side, Inner Front Lh	Side Member ([03.2010 - ] LH (1003- ))
61736-AC020	Panel, Roof Side, Inner Rear Lh	Side Member ([03.2010 - ] LH (1003- ))
61815-AC030	Cover, Roof Side, Inner No.2 Rh	Side Member ([03.2010 - ] LH (1003- ))
61817-AA010	Cover, Roof Side, Inner Lower Rh	Side Member ([03.2010 - ] LH (1003- ))
61824-12060	Plate, Noise Control, No.1	Side Member ([03.2010 - ] LH (1003- ))
61825-AA020	Plate, Noise Control, No.2	Side Member ([03.2010 - ] LH (1003- ))
61826-AA010	Plate, Noise Control, No.3	Side Member ([03.2010 - ] LH (1003- ))
61848-AC031	Retainer, Quarter Panel, Lh	Side Member ([03.2010 - ] LH (1003- ))
62612-AC010	Pad, Quarter Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
62612-AC011	Pad, Quarter Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
62616-AA011	Cover, Quarter Wheel House, Inner Lh	Side Member ([03.2010 - ] LH (1003- ))
62939-06010	Silencer, Quarter Vent	Side Member ([03.2010 - ] LH (1003- ))
62939-07010	Silencer, Quarter Vent	Side Member ([03.2010 - ] LH (1003- ))
62939-0T010	Silencer, Quarter Vent	Side Member ([03.2010 - ] LH (1003- ))
62939-32030	Silencer, Quarter Vent	Side Member ([03.2010 - ] LH (1003- ))
62939-AC010	Silencer, Quarter Vent	Side Member ([03.2010 - ] LH (1003- ))
64202-AC010	Reinforcement, Upper Back, Lh	Side Member ([03.2010 - ] LH (1003- ))
65613-07010	Strip, Side Gate Hinge, Inside	Side Member ([03.2010 - ] LH (1003- ))
65638-07010	Liner, Rear Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
65638-AC010	Liner, Rear Wheel House, Lh	Side Member ([03.2010 - ] LH (1003- ))
66244-07010	Protector, Rear Body, No.2	Side Member ([03.2010 - ] LH (1003- ))
90080-11175	New Genuine Part	Side Member ([03.2010 - ] LH (1003- ))
90080-17182	NUT FLANGE	Side Member ([03.2010 - ] LH (1003- ))
90115-06340	BOLT WELD	Side Member ([03.2010 - ] LH (1003- ))
90119-A0006	New Genuine Part	Side Member ([03.2010 - ] LH (1003- ))
90119-A0121	New Genuine Part	Side Member ([03.2010 - ] LH (1003- ))
90189-05142	GROMMET, SCREW	Side Member ([03.2010 - ] LH (1003- ))
90189-06047	GROMMET	Side Member ([03.2010 - ] LH (1003- ))
90467-10034-C0	Clip(For Step Plate)	Side Member ([03.2010 - ] LH (1003- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 202
Collected: 2026-08-02
