Search › Model › GSX30

GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories
GSX30 ×

← Back to categories

5,340 items

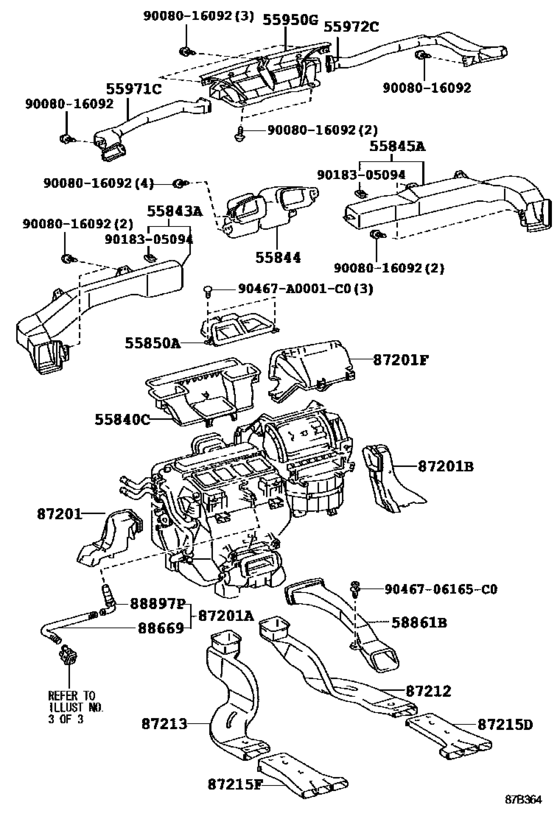

Heating & Air Conditioning - Control & Air Duct ([05.2010 - ] DUCT (1005- )) 25
#OEMPart name
55840 55840-07030 Duct Assy, Heater To Register, No.6
55843 55843-07020 Duct, Heater To Register, No.1
55844 55844-07030 Duct, Heater To Register, No.2
55844 55844-07050 Duct, Heater To Register, No.2
55845 55845-07030 Duct, Heater To Register, No.3
55850 55850-07010 Connector Assy, Instrument Panel Register, Center
55950 55950-07010 Nozzle Assy, Defroster
55971 55971-07010 Duct, Side Defroster Nozzle, No.1
55971 55971-07020 Duct, Side Defroster Nozzle, No.1
55972 55972-07020 Duct, Side Defroster Nozzle, No.2
58861 58861-07011 Duct, Console Box, No.1
87201 87201-07090 Duct Sub-Assy, Air, No.1
87201 87201-07080 Duct Sub-Assy, Air
87201 87201-07100 Duct Sub-Assy, Air, No.1 - AIR, NO.2
87201 87201-07110 Duct Sub-Assy, Air, No.3
87212 87212-07040 Duct, Air, Rear No.1
87213 87213-07040 Duct, Air, Rear No.1 - AIR, REAR NO.2
87215 87215-07010 Duct, Air, Rear No.2 - AIR, REAR NO.4
87215 87216-07010 Duct, Air, Rear No.2 - AIR, REAR NO.3
88669 88669-07030 Hose, Cooler Air
88897 88897-07010 Pipe, Aspirator
90467 90467-A0001-C0 Clip, Heater To Register Duct
9008016092 90080-16092 New Genuine Part
9018305094 90183-05094 NUT
9046706165 90467-06165-C0 Clip, Instrument Panel
