Search › Model › GSX30

GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories

5,340 items

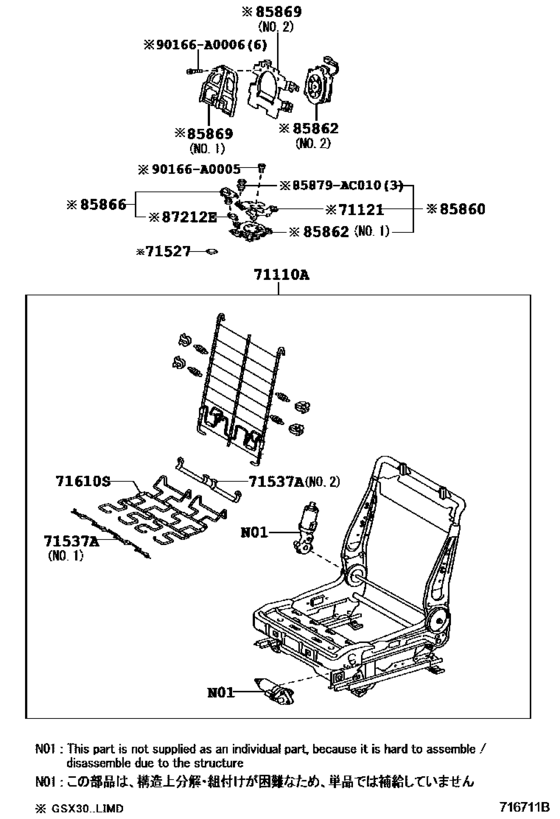

Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- )) 25

#	OEM	Part name
71110	71110-07050	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07040	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07080	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07070	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07100	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07030	Frame Assy, Front Seat W/adjuster, Rh
71110	71110-07060	Frame Assy, Front Seat W/adjuster, Rh
71121	85868-AC010	Bracket, Front Seat Cushion, Rh
71527	71527-07010	Tape, Front Seat Cushion Silencer
71537	71537-0E010	Protector, Front Seat Cushion
71537	71537-0E020	Protector, Front Seat Cushion
71610	71051-0E010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
85860	85860-AC010	Blower Assy, Seat Cushion Climate Control
85860	85860-AC011	Blower Assy, Seat Cushion Climate Control
85862	85862-AC010	Blower, Seat Climate Control, Rh
85862	85862-AC011	Blower, Seat Climate Control, Rh
85862	85867-0C020	Blower, Seat Climate Control, Rh
85862	85867-AC010	Blower, Seat Climate Control, Rh
85866	85866-AC010	Duct, Seat Cushion Climate Control, Rh
85869	85869-AC010	Cover, Seat Back Climate Control, Rh
85869	85869-AC020	Cover, Seat Back Climate Control, Rh
85879	85879-AC010	Bush, Seat Cushion Climate Control
87212	87211-AC010	Clip - AIR, REAR RH
90166	90166-A0005	SCREW HEXALOBULAR
90166	90166-A0006	SCREW HEXALOBULAR

OEM	Part name	Category
71051-0E010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07030	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07040	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07050	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07060	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07070	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07080	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71110-07100	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71527-07010	Tape, Front Seat Cushion Silencer	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71537-0E010	Protector, Front Seat Cushion	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
71537-0E020	Protector, Front Seat Cushion	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85860-AC010	Blower Assy, Seat Cushion Climate Control	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85860-AC011	Blower Assy, Seat Cushion Climate Control	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85862-AC010	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85862-AC011	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85866-AC010	Duct, Seat Cushion Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85867-0C020	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85867-AC010	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85868-AC010	Bracket, Front Seat Cushion, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85869-AC010	Cover, Seat Back Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85869-AC020	Cover, Seat Back Climate Control, Rh	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
85879-AC010	Bush, Seat Cushion Climate Control	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
87211-AC010	Clip - AIR, REAR RH	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
90166-A0005	SCREW HEXALOBULAR	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
90166-A0006	SCREW HEXALOBULAR	Front Seat & Seat Track ([05.2010 - ] RH SEAT (1005- ))
