Search › Model › GSX30

GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories

5,340 items

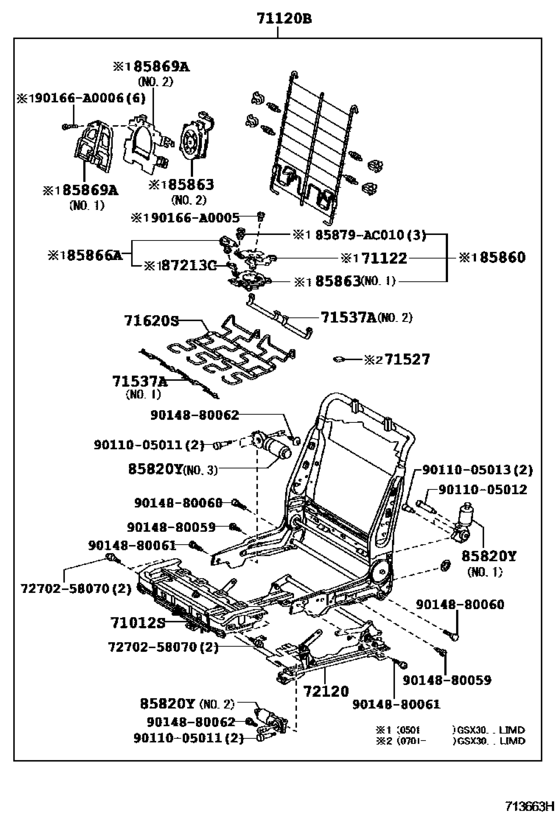

Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003)) 36

#	OEM	Part name
71012	71012-AC050	Frame Sub-Assy, Front Seat Cushion, Lh
71012	71012-0E010	Frame Sub-Assy, Front Seat Cushion, Lh
71120	71120-07020	Frame Assy, Front Seat W/adjuster, Lh
71120	71120-07040	Frame Assy, Front Seat W/adjuster, Lh
71120	71110-07030	Frame Assy, Front Seat W/adjuster, Rh
71120	71120-07030	Frame Assy, Front Seat W/adjuster, Lh
71122	85868-AC010	Bracket, Front Seat Cushion, Rh
71527	71527-07010	Tape, Front Seat Cushion Silencer
71537	71537-0E010	Protector, Front Seat Cushion
71537	71537-0E020	Protector, Front Seat Cushion
71620	71051-0E010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
72120	72120-AC010	Track Assy, Front Seat, Outer Lh
85820	85801-60020	Motor Assy, Power Seat
85820	85801-60030	Motor Assy, Power Seat
85820	85801-60040	Motor Assy, Power Seat
85860	85860-AC010	Blower Assy, Seat Cushion Climate Control
85860	85860-AC011	Blower Assy, Seat Cushion Climate Control
85863	85862-AC010	Blower, Seat Climate Control, Rh
85863	85862-AC011	Blower, Seat Climate Control, Rh
85863	85867-0C020	Blower, Seat Climate Control, Rh
85863	85867-AC010	Blower, Seat Climate Control, Rh
85866	85866-AC010	Duct, Seat Cushion Climate Control, Rh
85869	85869-AC010	Cover, Seat Back Climate Control, Rh
85869	85869-AC020	Cover, Seat Back Climate Control, Rh
85879	85879-AC010	Bush, Seat Cushion Climate Control
87213	87211-AC010	Clip - AIR, REAR RH
90166	90166-A0005	SCREW HEXALOBULAR
90166	90166-A0006	SCREW HEXALOBULAR
7270258070	72702-58070	Bracket Sub-assy, Rear Seat Back Striker
9011005011	90110-05011	New Genuine Part
9011005012	90110-05012	New Genuine Part
9011005013	90110-05013	New Genuine Part
9014880059	90148-80059	New Genuine Part
9014880060	90148-80060	New Genuine Part
9014880061	90148-80061	New Genuine Part
9014880062	90148-80062	New Genuine Part

OEM	Part name	Category
71012-0E010	Frame Sub-Assy, Front Seat Cushion, Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71012-AC050	Frame Sub-Assy, Front Seat Cushion, Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71051-0E010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71110-07030	Frame Assy, Front Seat W/adjuster, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71120-07020	Frame Assy, Front Seat W/adjuster, Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71120-07030	Frame Assy, Front Seat W/adjuster, Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71120-07040	Frame Assy, Front Seat W/adjuster, Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71527-07010	Tape, Front Seat Cushion Silencer	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71537-0E010	Protector, Front Seat Cushion	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
71537-0E020	Protector, Front Seat Cushion	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
72120-AC010	Track Assy, Front Seat, Outer Lh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
72702-58070	Bracket Sub-assy, Rear Seat Back Striker	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85801-60020	Motor Assy, Power Seat	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85801-60030	Motor Assy, Power Seat	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85801-60040	Motor Assy, Power Seat	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85860-AC010	Blower Assy, Seat Cushion Climate Control	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85860-AC011	Blower Assy, Seat Cushion Climate Control	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85862-AC010	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85862-AC011	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85866-AC010	Duct, Seat Cushion Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85867-0C020	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85867-AC010	Blower, Seat Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85868-AC010	Bracket, Front Seat Cushion, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85869-AC010	Cover, Seat Back Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85869-AC020	Cover, Seat Back Climate Control, Rh	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
85879-AC010	Bush, Seat Cushion Climate Control	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
87211-AC010	Clip - AIR, REAR RH	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90110-05011	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90110-05012	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90110-05013	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90148-80059	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90148-80060	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90148-80061	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90148-80062	New Genuine Part	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90166-A0005	SCREW HEXALOBULAR	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))
90166-A0006	SCREW HEXALOBULAR	Front Seat & Seat Track ([01.2005 - 03.2010] LH SEAT (0501-1003))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 202
Collected: 2026-08-02
