Search › Model › GSX30

GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories

5,340 items

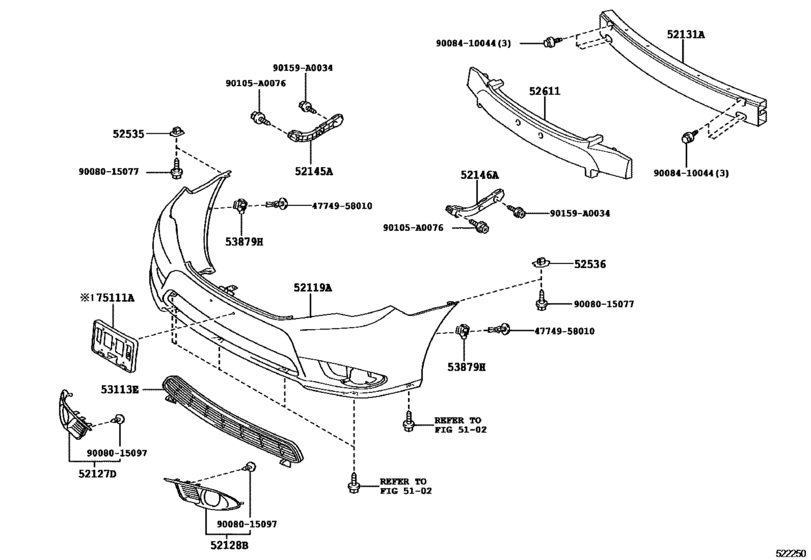

Front Bumper & Bumper Stay ([05.2010 - ] (1005- )) 28

#	OEM	Part name
52119	52119-07904	Cover, Front Bumper
52119	52119-07909	Cover, Front Bumper
52127	52030-07020	Cover, Front Bumper Hole, Rh
52127	52030-07040	Cover, Front Bumper Hole, Rh
52127	52030-07010	Cover, Front Bumper Hole, Rh
52128	52040-07020	Cover, Front Bumper Hole, Lh
52128	52040-07040	Cover, Front Bumper Hole, Lh
52128	52040-07010	Cover, Front Bumper Hole, Lh
52131	52131-AC080	Reinforcement, Front Bumper
52145	52145-07010	Stay, Front Bumper, No.2 Rh
52145	52145-AC040	Stay, Front Bumper, No.2 Rh
52146	52146-07010	Stay, Front Bumper, No.2 Lh
52146	52146-AC040	Stay, Front Bumper, No.2 Lh
52535	52535-30150	Retainer, Front Bumper Side, Rh
52535	52535-50060	Retainer, Front Bumper Side
52611	52611-07020	Absorber, Front Bumper Energy
52611	52611-07030	Absorber, Front Bumper Energy
53113	53113-07010	Grille, Radiator, Lower No.2
53113	53113-07040	Grille, Radiator, Lower No.2
53879	53879-58010	Retainer, Front Fender Liner
75111	75101-07010	Bracket, Front License Plate
75111	75101-07020	Bracket, Front License Plate
90105	90105-A0076	BOLT FLANGE
90159	90159-A0034	SCREW WWASHER
4774958010	47749-58010	Clip, Pin Hold
9008015077	90080-15077	New Genuine Part
9008015097	90080-15097	New Genuine Part
9008410044	90084-10044	BOLT FLANGE

OEM	Part name	Category
47749-58010	Clip, Pin Hold	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52030-07010	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52030-07020	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52030-07040	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52040-07010	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52040-07020	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52040-07040	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52119-07904	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52119-07909	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52131-AC080	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52145-07010	Stay, Front Bumper, No.2 Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52145-AC040	Stay, Front Bumper, No.2 Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52146-07010	Stay, Front Bumper, No.2 Lh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52146-AC040	Stay, Front Bumper, No.2 Lh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52535-30150	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52535-50060	Retainer, Front Bumper Side	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52611-07020	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
52611-07030	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
53113-07010	Grille, Radiator, Lower No.2	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
53113-07040	Grille, Radiator, Lower No.2	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
53879-58010	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
75101-07010	Bracket, Front License Plate	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
75101-07020	Bracket, Front License Plate	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
90080-15077	New Genuine Part	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
90080-15097	New Genuine Part	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
90084-10044	BOLT FLANGE	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
90105-A0076	BOLT FLANGE	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([05.2010 - ] (1005- ))
