GSX30

Toyota AVALON · 2005 · 5,340 parts · 202 categories

5,340 items

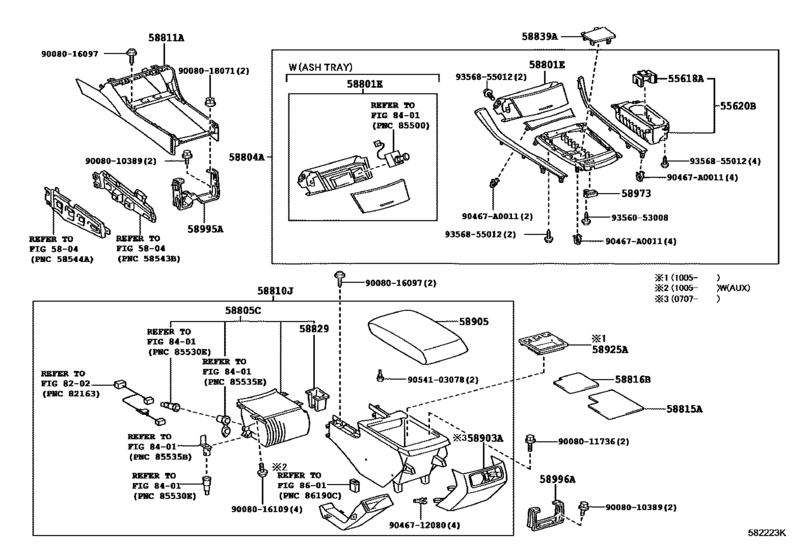

Console Box & Bracket ([01.2005 - ] (0501- )) 83

#	OEM	Part name
55618	55618-07012	Holder, Console Box Cup
55620	55620-07011	Holder, Instrument Panel Cup
55620	55620-07020	Holder, Instrument Panel Cup
58801	58802-07021	Box Sub-Assy, Console, Upper
58801	58802-07022	Box Sub-Assy, Console, Upper
58801	58802-07051	Box Sub-Assy, Console, Upper
58801	58802-07080-E0	Box Sub-Assy, Console, Upper
58801	58802-07080-E1	Box Sub-Assy, Console, Upper
58804	58804-07041-E2	Panel Sub-Assy, Console, Upper
58804	58804-07042-E2	Panel Sub-Assy, Console, Upper
58804	58804-07061-E2	Panel Sub-Assy, Console, Upper
58804	58804-07100-E0	Panel Sub-Assy, Console, Upper
58804	58804-07100-E1	Panel Sub-Assy, Console, Upper
58804	58804-07031-B2	Panel Sub-Assy, Console, Upper
58804	58804-07032-B2	Panel Sub-Assy, Console, Upper
58804	58804-07051-B2	Panel Sub-Assy, Console, Upper
58805	58805-07011-A0	Panel Sub-Assy, Console, Upper Rear
58805	58805-07011-B0	Panel Sub-Assy, Console, Upper Rear
58805	58805-07011-B2	Panel Sub-Assy, Console, Upper Rear
58805	58805-07011-C0	Panel Sub-Assy, Console, Upper Rear
58805	58805-07011-B1	Panel Sub-Assy, Console, Upper Rear
58810	58810-07031-A0	Box Assy, Console
58810	58810-07032-A0	Box Assy, Console
58810	58810-07031-B0	Box Assy, Console
58810	58810-07032-B0	Box Assy, Console
58810	58810-07031-B2	Box Assy, Console
58810	58810-07032-B2	Box Assy, Console
58810	58810-07061-A1	Box Assy, Console
58810	58810-07061-B1	Box Assy, Console
58810	58810-07061-C1	Box Assy, Console
58810	58810-07070-A1	Box Assy, Console
58810	58810-07070-B1	Box Assy, Console
58810	58810-07070-C1	Box Assy, Console
58810	58810-07021-A0	Box Assy, Console
58810	58810-07022-A0	Box Assy, Console
58810	58810-07021-B1	Box Assy, Console
58810	58810-07022-B1	Box Assy, Console
58811	58811-07020-A0	Box, Console, Front
58811	58811-07020-B0	Box, Console, Front
58811	58811-07020-B2	Box, Console, Front
58811	58811-07020-C0	Box, Console, Front
58811	58811-07030-A0	Box, Console, Front
58811	58811-07030-B0	Box, Console, Front
58811	58811-07030-B2	Box, Console, Front
58811	58811-07020-B1	Box, Console, Front
58811	58811-07030-B1	Box, Console, Front
58815	58815-07010	Carpet, Console Box
58815	58815-07020	Carpet, Console Box
58816	58816-AC010	Insert, Console Box
58829	58806-07010	Pocket, Console Box
58839	58839-07011	Cover, Console Box Hole
58839	58839-07020	Cover, Console Box Hole
58903	58903-07011-A0	Panel Sub-Assy, Console Rear End
58903	58903-07012-A0	Panel Sub-Assy, Console Rear End
58903	58903-07011-B0	Panel Sub-Assy, Console Rear End
58903	58903-07012-B0	Panel Sub-Assy, Console Rear End
58903	58903-07011-B2	Panel Sub-Assy, Console Rear End
58903	58903-07012-B2	Panel Sub-Assy, Console Rear End
58903	58903-07012-C0	Panel Sub-Assy, Console Rear End
58903	58903-07011-B1	Panel Sub-Assy, Console Rear End
58903	58903-07012-B1	Panel Sub-Assy, Console Rear End
58905	58905-07020-A0	Door Sub-Assy, Console Compartment
58905	58905-07020-A1	Door Sub-Assy, Console Compartment
58905	58905-07020-B0	Door Sub-Assy, Console Compartment
58905	58905-07020-B3	Door Sub-Assy, Console Compartment
58905	58905-07020-B2	Door Sub-Assy, Console Compartment
58905	58905-07020-C1	Door Sub-Assy, Console Compartment
58905	58905-07010-A0	Door Sub-Assy, Console Compartment
58905	58905-07010-B1	Door Sub-Assy, Console Compartment
58925	58925-07010	Pocket, Console Box, Rear
58973	58966-07010	Pin, Console Compartment Door Lock
58995	58995-07020	Bracket, Console Box Mounting, No.1
58996	58996-07010	Bracket, Console Box Mounting, No.2
90467	90467-A0011	Clip, Instrument Panel, No.1
9008010389	90080-10389	New Genuine Part
9008011736	90080-11736	New Genuine Part
9008016097	90080-16097	New Genuine Part
9008016109	90080-16109	New Genuine Part
9008018071	90080-18071	New Genuine Part
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)
9054103078	90541-03078	Cushion(For Cup Holder)
9356053008	93560-53008	New Genuine Part
9356855012	93568-55012	SCREW

OEM	Part name	Category
55618-07012	Holder, Console Box Cup	Console Box & Bracket ([01.2005 - ] (0501- ))
55620-07011	Holder, Instrument Panel Cup	Console Box & Bracket ([01.2005 - ] (0501- ))
55620-07020	Holder, Instrument Panel Cup	Console Box & Bracket ([01.2005 - ] (0501- ))
58802-07021	Box Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58802-07022	Box Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58802-07051	Box Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58802-07080-E0	Box Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58802-07080-E1	Box Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07031-B2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07032-B2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07041-E2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07042-E2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07051-B2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07061-E2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07100-E0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58804-07100-E1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2005 - ] (0501- ))
58805-07011-A0	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58805-07011-B0	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58805-07011-B1	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58805-07011-B2	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58805-07011-C0	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58806-07010	Pocket, Console Box	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07021-A0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07021-B1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07022-A0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07022-B1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07031-A0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07031-B0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07031-B2	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07032-A0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07032-B0	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07032-B2	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07061-A1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07061-B1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07061-C1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07070-A1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07070-B1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58810-07070-C1	Box Assy, Console	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07020-A0	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07020-B0	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07020-B1	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07020-B2	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07020-C0	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07030-A0	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07030-B0	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07030-B1	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58811-07030-B2	Box, Console, Front	Console Box & Bracket ([01.2005 - ] (0501- ))
58815-07010	Carpet, Console Box	Console Box & Bracket ([01.2005 - ] (0501- ))
58815-07020	Carpet, Console Box	Console Box & Bracket ([01.2005 - ] (0501- ))
58816-AC010	Insert, Console Box	Console Box & Bracket ([01.2005 - ] (0501- ))
58839-07011	Cover, Console Box Hole	Console Box & Bracket ([01.2005 - ] (0501- ))
58839-07020	Cover, Console Box Hole	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07011-A0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07011-B0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07011-B1	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07011-B2	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07012-A0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07012-B0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07012-B1	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07012-B2	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58903-07012-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07010-A0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07010-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-A0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-A1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-B2	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-B3	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58905-07020-C1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([01.2005 - ] (0501- ))
58925-07010	Pocket, Console Box, Rear	Console Box & Bracket ([01.2005 - ] (0501- ))
58966-07010	Pin, Console Compartment Door Lock	Console Box & Bracket ([01.2005 - ] (0501- ))
58995-07020	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([01.2005 - ] (0501- ))
58996-07010	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([01.2005 - ] (0501- ))
90080-10389	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
90080-11736	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
90080-16097	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
90080-16109	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
90080-18071	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Console Box & Bracket ([01.2005 - ] (0501- ))
90467-A0011	Clip, Instrument Panel, No.1	Console Box & Bracket ([01.2005 - ] (0501- ))
90541-03078	Cushion(For Cup Holder)	Console Box & Bracket ([01.2005 - ] (0501- ))
93560-53008	New Genuine Part	Console Box & Bracket ([01.2005 - ] (0501- ))
93568-55012	SCREW	Console Box & Bracket ([01.2005 - ] (0501- ))
