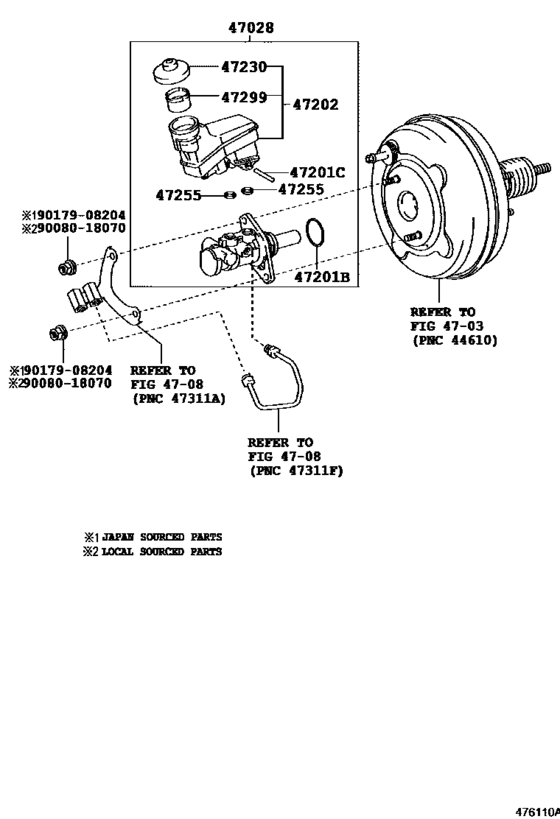

| 47028-06030 |
Cylinder Sub-Assy, Brake Master W/plate |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47201-06420 |
Cylinder Sub-Assy, Brake Master W/plate |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47201-06423 |
Cylinder Sub-Assy, Brake Master W/plate |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47220-06230 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47230-01030 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47230-01031 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47230-12040 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 47299-25010 |
Strainer, Master Cylinder Reservoir |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 90015-AH002 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 90029-15803 |
Ring Pin, Brake Master Cylinder |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 90029-48001 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([07.2007 - ] (0707- )) |
