Search › Model › GSV50

GSV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,992 parts · 373 categories

5,992 items

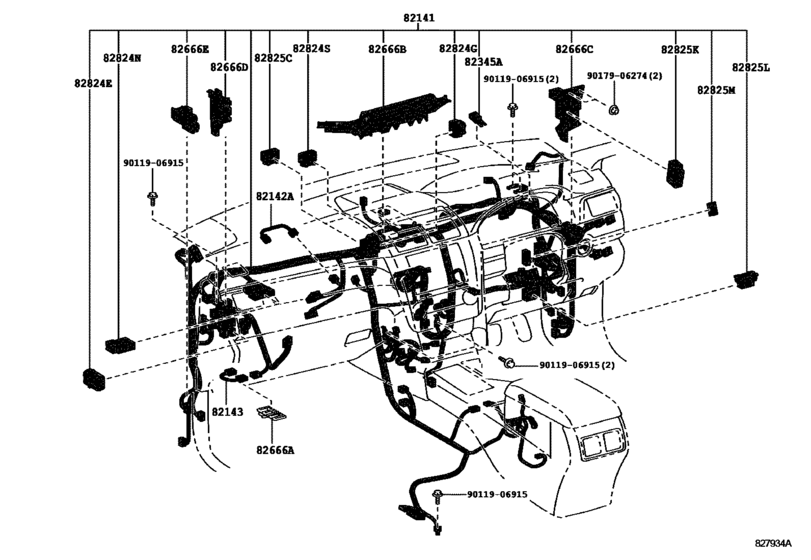

Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL) 23

#	OEM	Part name
82141	82141-0XK70	Wire, Instrument Panel
82141	82141-0XL00	Wire, Instrument Panel
82141	82141-0XZ70	Wire, Instrument Panel
82141	82141-0XZ80	Wire, Instrument Panel
82141	82145-0X760	Wire, Instrument Panel
82142	82140-06040	Wire, Instrument Panel, No.2
82143	82143-33130	Wire, Instrument Panel, No.3
82345	82345-12050	Diode
82666	82666-60610	Holder, Connector No.2 - CONNECTOR NO.15
82666	82666-33430	Holder, Connector No.3
82666	82666-33440	Holder, Connector No.4
82666	82666-33450	Holder, Connector No.5
82666	82666-33510	Holder, Connector No.6
82824	82824-30180	Connector, Wiring Harness
82824	82824-30220	Connector, Wiring Harness
82824	82824-48080	Connector, Wiring Harness
82824	82824-50340	Connector, Wiring Harness
82825	82824-50360	Connector, Wiring Harness
82825	82824-48110	Connector, Wiring Harness
82825	90980-11665	Connector, Wiring Harness
82825	90980-12092	Connector, Wiring Harness
9011906915	90119-06915	BOLT W-WASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
82140-06040	Wire, Instrument Panel, No.2	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82141-0XK70	Wire, Instrument Panel	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82141-0XL00	Wire, Instrument Panel	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82141-0XZ70	Wire, Instrument Panel	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82141-0XZ80	Wire, Instrument Panel	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82143-33130	Wire, Instrument Panel, No.3	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82145-0X760	Wire, Instrument Panel	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82345-12050	Diode	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82666-33430	Holder, Connector No.3	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82666-33440	Holder, Connector No.4	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82666-33450	Holder, Connector No.5	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82666-33510	Holder, Connector No.6	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82666-60610	Holder, Connector No.2 - CONNECTOR NO.15	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-30180	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-30220	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-48080	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-48110	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-50340	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
82824-50360	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
90179-06274	Nut	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
90980-11665	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
90980-12092	Connector, Wiring Harness	Wiring & Clamp ([10.2011 - ] INSTRUMENT PANEL (1110- )ARL)
