GSV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,992 parts · 373 categories

← Back to categories

5,992 items

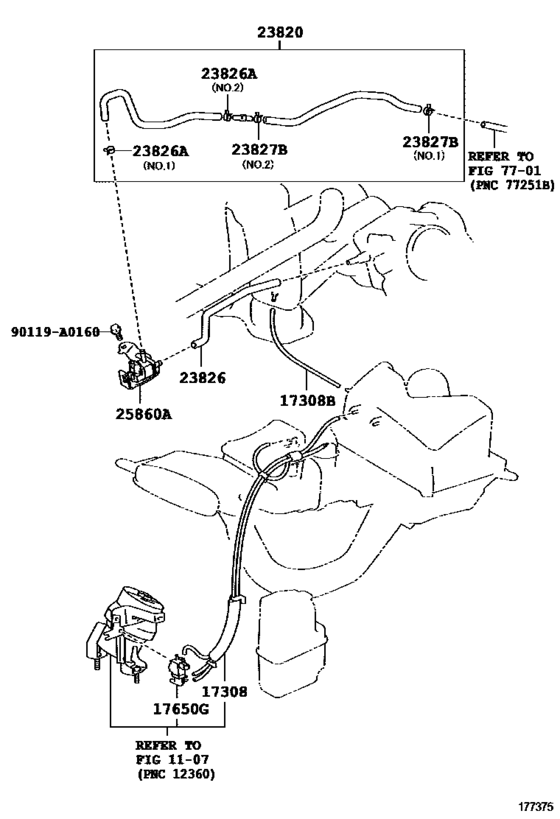

Vacuum Piping ([09.2011 - ] (1109- )2GRFE) 12

#	OEM	Part name
17308	17308-0P111	Hose Sub-Assy, Vacuum(For Idle-Up)
17308	90999-92003	Hose, Breather (For Transfer Case)
17650	90910-12204	Valve, Duty Vacuum Switching
23820	23820-0P200	Hose Assy, Fuel Vapor Feed
23826	23826-0P040	Hose, Fuel Vapor Feed, No.1
23826	90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)
23826	90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)
23826	96132-51100	Clip (For Hose)
23827	90466-13004	Clip(For Fuel Vapor Feed Hose, No.1)
23827	90466-13005	Clip(For Fuel Vapor Feed Hose, No.1)
25860	25860-31070	Valve Assy, Vacuum Switching, No.1
90119	90119-A0160	New Genuine Part

OEM	Part name	Category
17308-0P111	Hose Sub-Assy, Vacuum(For Idle-Up)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
23820-0P200	Hose Assy, Fuel Vapor Feed	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
23826-0P040	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
25860-31070	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90119-A0160	New Genuine Part	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90466-13004	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90466-13005	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90910-12204	Valve, Duty Vacuum Switching	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
90999-92003	Hose, Breather (For Transfer Case)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
96132-51100	Clip (For Hose)	Vacuum Piping ([09.2011 - ] (1109- )2GRFE)
