| 16261-0P030 |
Hose, Water By-Pass |

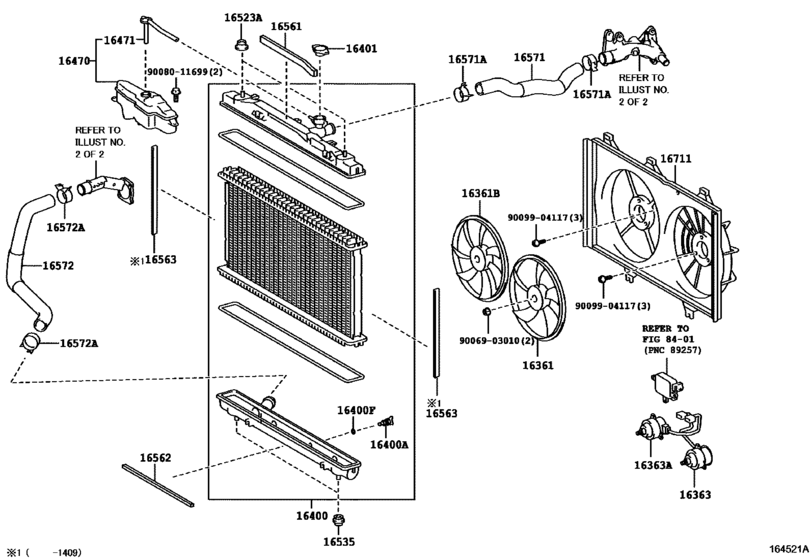

Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16264-0P031 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16267-0P020 |
Hose, Water By-Pass, No.3 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16321-0P010 |
Inlet, Water |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16322-0P020 |
Pipe, Water Inlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16322-31030 |
Pipe, Water Inlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16323-0P030 |
Housing, Water Inlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16323-31040 |
Housing, Water Inlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16325-0P020 |
Gasket, Water Inlet Housing, No.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16325-62010 |
Gasket, Water Inlet Housing, No.1 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16331-31140 |
Outlet, Water |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16341-AD010 |
Gasket, Water Outlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16361-0P250 |
Fan |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16361-0P260 |
Fan, No.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16363-0A120 |
Motor, Cooling Fan |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16363-0P030 |
Motor, Cooling Fan - COOLING FAN, NO.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16400-0P350 |
Radiator Assy |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16401-31520 |
Radiator Cap Sub-Assy (108kPa) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16401-36020 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16405-0V060 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16417-0C180 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16470-0V020 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16523-AD010 |
Cushion, Radiator Support |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16535-0A050 |
Support, Radiator, Lower |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16561-0V080 |
Seal, Radiator To Support, No.1 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16562-0V040 |
Seal, Radiator To Support, No.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16563-0V070 |
Seal, Radiator To Support, No.3 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16571-0P250 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16572-0P150 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 16711-0P200 |
Shroud, Fan |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90069-03010 |
NUT |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90080-11699 |
Bolt, W/washer |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90099-04117 |
Bolt, Radiator Side Support Plate |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90105-A0079 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90105-A0119 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90119-A0142 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90178-A0023 |
Nut, Wire Adjusting, No.2 |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90466-A0015 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90466-A0017 |
Clip, No.2(For Oil Cooler Hose) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90466-A0020 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90910-09127 |
COCK ASSY DRAIN |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90916-03140 |
Thermostat |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 90916-A3002 |
Thermostat |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 92122-80616 |
Bolt, Stud(For Head To Cylinder Head Cover) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 96136-42701 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 96761-24019 |
Ring, O(For Water By-Pass Pipe) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
| 96761-24021 |
Ring, O(For Water By-Pass Joint Front) |
Radiator & Water Outlet ([09.2011 - ] (1109- )2GRFE) |
