Search › Model › GSV50

GSV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,992 parts · 373 categories

← Back to categories

5,992 items

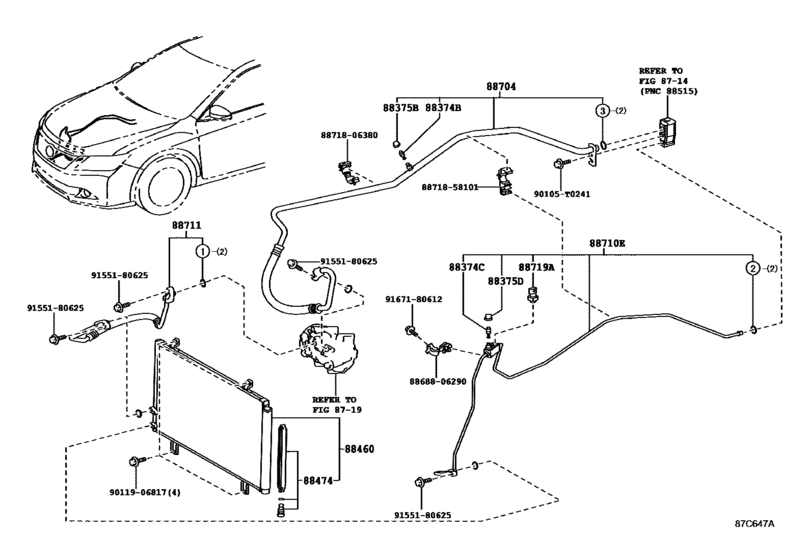

Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50) 18

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-02070	Cap, Service Valve, No.1
88375	88375-02060	Cap, Service Valve, No.1
88460	88460-06240	Condenser Assy, Cooler
88460	88460-33140	Condenser Assy, Cooler
88474	88474-17010	Dryer, Cooler
88704	88704-06480	Hose Sub-Assy, Suction
88710	88710-06440	Tube & Accessory Assy, Air Conditioner
88711	88711-06570	Hose, Cooler Refrigerant Discharge, No.1
88719	88719-33020	Sensor, Airconditioner Pressure
90105	90105-T0241	BOLTFLANGE
8868806290	88688-06290	Bracket, Cooler Diaphragm
8871806380	88718-06380	Pipe, Cooler Refrigerant Suction, No.2
8871858101	88718-58101	Clamp(For Cooler Refrigerant Hose), No.2
9011906817	90119-06817	BOLT WWASHER
9011906817	90119-A0044	New Genuine Part
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9167180612	91671-80612	Bolt

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88375-02060	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88375-02070	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88460-06240	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88460-33140	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88688-06290	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88704-06480	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88710-06440	Tube & Accessory Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88711-06570	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88718-06380	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88718-58101	Clamp(For Cooler Refrigerant Hose), No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
88719-33020	Sensor, Airconditioner Pressure	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
90105-T0241	BOLTFLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
90119-06817	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
90119-A0044	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
91551-80625	Bolt(For Camshaft Housing Set)	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)
91671-80612	Bolt	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] (1202- )GSV50)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 373
Collected: 2026-08-02
